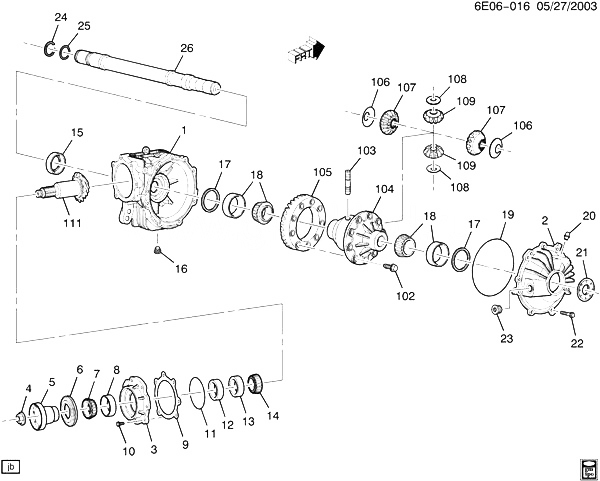

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25978167 |
КРОНШТЕЙН, FRT DIFF (INCLS 2-26, 102-111)
| DW29 |
2005-2008 |
01 |
|
| 002 |
|
COVER, FRT DIFF CARR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 003 |
|
ШЛАНГИ, FRT DIFF DRV P/GR INR BRG (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 004 |
89047861 |
ГАЙКА, FRT DIFF DRV P/GR (ЧАСТЬ OF 1)
| DW29 |
2005-2008 |
01 |
|
| 005 |
19178812 |
FLANGE, FRT DIFF CARR (ЧАСТЬ OF 1) |
D29-69 |
2008-2008 |
01 |
| 006 |
19132939 |
SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) (4.515)
| DW29 (MYB, MX7) |
2008-2008 |
01 |
|
| 007 |
|
BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 008 |
|
BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 009 |
|
SHIM, FRT DIFF DRV P/GR BRG (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 010 |
89047930 |
БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) |
DW29 |
2005-2008 |
08 |
| 011 |
19132939 |
SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) (4.515)
| DW29 (MYB, MX7) |
2008-2008 |
01 |
|
| 012 |
|
SPACER, FRT DIFF DRV P/GR BRG (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 013 |
|
BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 014 |
|
BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 015 |
89047832 |
SEAL, FRT WHL DRV INTER SHF HSG (ЧАСТЬ OF 1)
| D29 |
2005-2008 |
01 |
|
| 016 |
89059039 |
PLUG, FRT DIFF CARR OIL DRN (ЧАСТЬ OF 1) (5.400) |
D29 |
2005-2008 |
01 |
| 017 |
|
SHIM, FRT DIFF SI GR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 018 |
|
BEARING, FRT DIFF DRV P/GR OTR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 019 |
89047859 |
GASKET, FRT DIFF CARR CVR (ЧАСТЬ OF 1)
| D |
2008-2008 |
01 |
|
| 020 |
15852707 |
VENT, F/AXL (ЧАСТЬ OF 1) (5.387)
| D |
2008-2008 |
01 |
|
| 021 |
88996591 |
SEAL, F/AXL SHF (ЧАСТЬ OF 1) (5.822) |
D |
2007-2008 |
02 |
| 022 |
89047930 |
БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) |
DW29 |
2005-2008 |
08 |
| 023 |
89059038 |
PLUG, FRT DIFF CARR OIL FIL (ЧАСТЬ OF 1) (M20X1.5X14) (W/SEAL) (5.400) |
D29 |
2005-2008 |
01 |
| 024 |
89047934 |
SEAL, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1)
| D29 |
2005-2008 |
01 |
|
| 025 |
89047933 |
RETAINER, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) |
D29 |
2005-2008 |
01 |
| 026 |
89047931 |
SHAFT, FRT WHL DRV INTER (ЧАСТЬ OF 1) |
D |
2005-2008 |
01 |
| 102 |
89047929 |
БОЛТ, FRT DIFF R/GR (ЧАСТЬ OF 1) |
D |
2008-2008 |
10 |
| 103 |
|
SHAFT, FRT DIFF P/GR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 104 |
|
CASE, FRT DIFF (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 105 |
|
GEAR, FRT DIFF RING (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 106 |
|
WASHER, FRT DIFF SI GR THR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 107 |
|
GEAR, FRT DIFF SI (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 108 |
|
WASHER, FRT DIFF P/GR THR (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 109 |
|
GEAR, FRT DIFF PINION (ЧАСТЬ OF 1) |
|
2007-2010 |
|
| 111 |
|
GEAR, FRT DIFF DRV PINION (ЧАСТЬ OF 1) |
|
2007-2010 |
|
