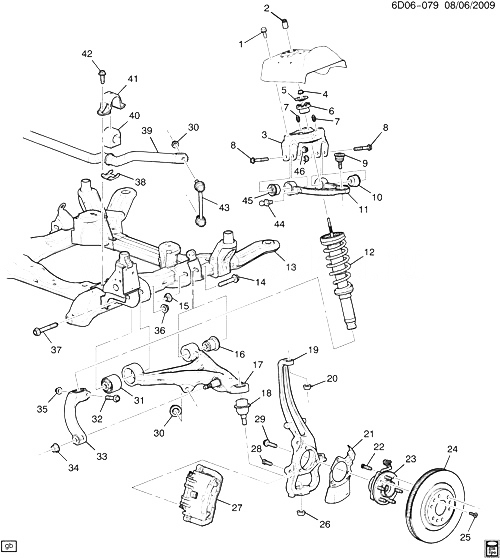

(6D06-079) - 2007-2010 DW29 ПОДВЕСКА-ПЕРЕДНЯЯ (ALL КОЛЕСО DRIVE MX7) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11519393 БОЛТ, HEX W/CON ПРУЖИНА WA, M12X1.75X50, 35 OD, 42 THD, 10.9, 7114M (FRT S/ABS UPR BRKT) 2007-2010 10
002 15815517 ГАЙКА, FRT S/ABS STUD DY (FE3, F55) (EXPORT) 2008-2009 02
002 15815517 ГАЙКА, FRT S/ABS STUD DW (FE3, F55) 2008-2010 02
003 19168536 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DW (FE1) 2007-2010 01
003 19168536 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DY29 (FE1) (EXPORT) 2008-2009 01
003 19177211 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DW29 (FE1) 2007-2010 01
003 19177211 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DY29 (FE1) (EXPORT) 2008-2009 01
003 19181780 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DW (FE3) 2007-2010 01
003 19181780 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DY29 (FE3) (EXPORT) 2008-2009 01
003 19181781 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DW29 (FE3) 2007-2010 01
003 19181781 BRACKET, FRT UPR CONT ARM (INCLS 4, 6-11, 44-46) DY29 (FE3) (EXPORT) 2008-2009 01
004 ГАЙКА, FRT S/ABS (ЧАСТЬ OF 3) (*KIT1) 2007-2010
005 WASHER, FRT S/ABS (*KIT1) 2007-2010
006 MOUNT, FRT SUSP STRUT (ЧАСТЬ OF 3) 2007-2010
007 LOCATOR, FRT SUSP STRUT UPR (ЧАСТЬ OF 3) 2007-2010
008 WASHER, FRT UPR CONT ARM (ЧАСТЬ OF 3) 2007-2010
008 11519961 БОЛТ, FRT UPR CONT ARM (БОЛТ, HEX FLNG HD (12X1.75X75) (PZOR 10.9) (ЧАСТЬ OF 3) (M12X1.75X75) (8.900) D 2007-2010 04
009 STUD, FRT UPR CONT ARM BALL (ЧАСТЬ OF 3) 2007-2010
010 BUSHING, FRT UPR CONT ARM (RR) (ЧАСТЬ OF 3) 2007-2010
011 ARM, FRT UPR CONT (ЧАСТЬ OF 3) 2007-2010
012 АМОРТИЗАТОР KIT, FRT SHK (СМ. ГРУППУ 07.000 АМОРТИЗАТОР/ПЕРЕДНЯЯ СТОЙКА ПРУЖИНА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2010
013 25807372 РАМА, DRIVETRAIN FRT SUSP DW29 (MX7) (EXC JL7) 2008-2008 01
013 25807373 РАМА, DRIVETRAIN FRT SUSP DW29 (JL7, MX7) 2008-2008 01
014 11519151 БОЛТ, FRT LWR CONT ARM FRT (HFH, M14X2X110) (POINTED POINT) (7.039) D 2007-2008 02
015 03537773 ГАЙКА, FRT LWR CONT ARM RR (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) D29 2008-2008 02
016 BUSHING, FRT LWR CONT ARM RR (ЧАСТЬ OF 17) 2007-2010
017 25862781 ARM, FRT LWR CONT (INCLS 16, 18, 31) DW29 (MX7) 2007-2010 01
017 25862782 ARM, FRT LWR CONT (INCLS 16, 18, 31) DW29 (JJL, MX7) 2008-2010 01
018 STUD, FRT LWR CONT ARM BALL (ЧАСТЬ OF 17) 2007-2010
019 89060203 KNUCKLE, STRG DW29 (J56, MX7) 2008-2008 01
019 89060206 KNUCKLE, STRG DW, DY29 (J56, MX7) 2008-2008 01
019 89060215 KNUCKLE, STRG DW29 (JE5, MX7) 2007-2009 01
019 89060215 KNUCKLE, STRG DY29 (JE5, MX7) 2008-2008 01
019 89060216 KNUCKLE, STRG DW29 (JE5, MX7) 2007-2009 01
019 89060216 KNUCKLE, STRG DY29 (JE5, MX7) 2008-2009 01
020 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (FRT UPR CONT ARM BALL STUD) 2007-2010 02
021 89060204 SHIELD, FRT BRK (4.720) DW29 (JE5) 2007-2008 01
021 89060204 SHIELD, FRT BRK (4.720) D29 (J56) 2007-2009 01
021 89060204 SHIELD, FRT BRK (4.720) DY29 (JE5) (EXPORT) 2008-2008 01
021 89060207 SHIELD, FRT BRK (4.720) DW29 (JE5) 2007-2008 01
021 89060207 SHIELD, FRT BRK (4.720) D29 (J56) 2007-2009 01
021 89060207 SHIELD, FRT BRK (4.720) DY29 (JE5) (EXPORT) 2008-2008 01
022 STUD, FRT WHL (ЧАСТЬ OF 23) 2007-2010
023 12413103 HUB, FRT WHL (W/BRG) (INCLS 22) (W/WHL SPD SEN) (ACDelco #FW149) DW29 (J56) 2007-2008 02
023 89060208 HUB, FRT WHL (INCLS 22) (INCLS SENSOR) (ACDelco #FW171) DW29 (JE5, MX7) 2007-2010 02
023 89060208 HUB, FRT WHL (INCLS 22) (INCLS SENSOR) (ACDelco #FW171) DY29 (JE5, MX7) (EXPORT) 2008-2008 02
024 25750248 ROTOR, FRT BRK (ACDelco #177-0965) D29 (J56) 2007-2009 02
024 89047762 ROTOR, FRT BRK (ACDelco #177-0915) DW29 (JE5) 2007-2008 02
024 89047762 ROTOR, FRT BRK (ACDelco #177-0915) DY29 (JE5) (EXPORT) 2008-2008 02
025 11515720 БОЛТ, FRT BRK ROT (M6X1X20, 12.3 OD) (FLAT 6 LOBED) (14.5 THD) (8.908) D 2007-2008 02
026 11516382 ГАЙКА, S/KNU (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2007-2010 02
027 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2010
028 18022052 БОЛТ, FRT BRK CLPR (M12X1.75X51, 20THD) (5.812) DW29 2007-2008 04
028 18022052 БОЛТ, FRT BRK CLPR (M12X1.75X51, 20THD) (5.812) DW29 (JE5) 2007-2008 04
028 18041878 БОЛТ, FRT BRK CLPR (M12X1.75X55) (W/O STEM ON TOP OF БОЛТ) (5.816) D29 (J56) 2007-2010 04
029 89060205 БОЛТ, FRT WHL HUB (M12X1.75X68.5, 20THD) D29 (J56) 2007-2009 06
029 89060205 БОЛТ, FRT WHL HUB (M12X1.75X68.5, 20THD) DW29 (JE5) 2007-2009 06
029 89060205 БОЛТ, FRT WHL HUB (M12X1.75X68.5, 20THD) DW29 (JL9) 2007-2009 06
030 11588357 ГАЙКА, FRT STAB SHF LINK (M12X1.75, 13.5 THK) (14.875) D29 2007-2008 04
031 BUSHING, FRT LWR CONT ARM (FRT) (ЧАСТЬ OF 17) 2007-2010
032 11519961 БОЛТ-HFH M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (FRT S/ABS YOKE) 2007-2010 02
033 25764673 YOKE, FRT S/ABS DW (MX7) 2007-2009 01
033 25764674 YOKE, FRT S/ABS DW (MX7) 2007-2009 01
034 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (FRT LWR CONT ARM) 2007-2010 02
035 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (FRT S/ABS YOKE) 2007-2010 02
036 03537773 ГАЙКА, FRT LWR CONT ARM FRT (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) DW29 2007-2008 02
037 11519149 БОЛТ, FRT LWR CONT ARM RR (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D 2007-2008 02
038 25750245 RETAINER, FRT STAB SHF INSL DW, DX, DY29 2008-2008 02
039 25751736 SHAFT, FRT STAB DW, DY29 (MX0, MX7) (EXC E5A) 2008-2008 01
039 25771335 SHAFT, FRT STAB DW, DY29 (E5A) 2008-2008 01
040 25773618 INSULATOR, FRT STAB SHF DW, DY (MX0, MX7) (EXC E5A) 2008-2008 02
041 25764660 CЛАМПА, FRT STAB SHF INSL DW, DY (MX0, MX7) (EXC E5A) 2008-2008 02
042 11515775 БОЛТ, HFH, M12X1.75X30, 10.9, 7114M (FRT STAB SHF INSL CLA) 2007-2010 04
043 15231140 LINK, FRT STAB SHF D (MX7) 2008-2008 02
044 03532785 STUD, ELEK SUSP POSN SEN (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) DW, DX29 (F55, TR7) (EXPORT) 2008-2008 01
044 03532785 STUD, ELEK SUSP POSN SEN (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) DY29 (F55, TR7) (EXPORT) 2008-2008 01
044 03532785 STUD, ELEK SUSP POSN SEN (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) DW29 (F55) 2008-2008 01
044 03532785 STUD, ELEK SUSP POSN SEN (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) DY29 (F55) (EXPORT) 2008-2008 01
045 BUSHING, FRT UPR CONT ARM (FRT) (ЧАСТЬ OF 3) 2007-2010
046 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (ЧАСТЬ OF 3) (8.917) 2007-2010 04
K01 88952018 WASHER KIT, FRT S/ABS (INCLS 4, 5) (INCLS 2-WASHERS AND 1-NUT) DW29 (FE1) 2007-2009 02
K01 88955519 WASHER KIT, FRT S/ABS (INCLS 4, 5) (INCLS 1-WASHER AND 2-NUTS) DW (FE3, F55) 2007-2008 02
