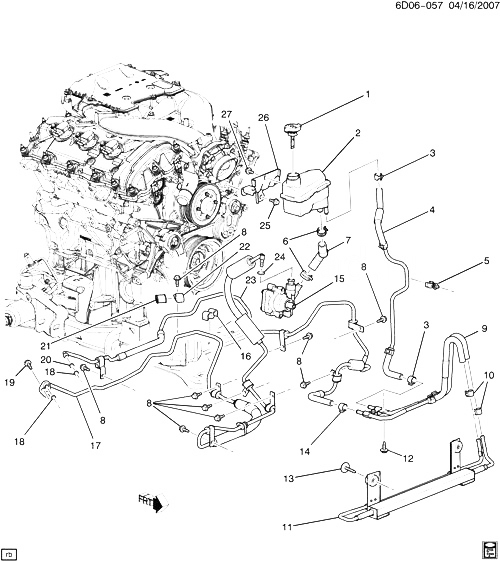

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88964536 |
CAP, P/S FLUID RSVR |
DY29 (EXPORT) |
2008-2009 |
01 |
| 002 |
19133714 |
RESERVOIR, P/S PUMP FLUID |
D29 |
2008-2009 |
01 |
| 003 |
|
CЛАМПА, P/S FLUID CLR OTLT HOSE (ЧАСТЬ OF 4) |
|
2008-2009 |
|
| 004 |
25820474 |
HOSE, P/S FLUID CLR OTLT (INCLS 3, 5)
| DY29 (LLT) |
2008-2009 |
01 |
|
| 005 |
|
CLIP, P/S FLUID CLR HOSE (ЧАСТЬ OF 4) |
|
2008-2009 |
|
| 006 |
|
CЛАМПА, P/S FLUID RSVR OTLT HOSE (ЧАСТЬ OF 7) |
|
2008-2009 |
|
| 007 |
15251170 |
HOSE, P/S FLUID RSVR OTLT (INCLS 6) |
DY29 (LLT) (EXPORT) |
2008-2009 |
01 |
| 008 |
10199206 |
БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) |
DY (EXPORT) |
2008-2009 |
AR |
| 008 |
10199206 |
БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) |
DY (EXPORT) |
2008-2009 |
AR |
| 009 |
10376953 |
HOSE, P/S FLUID CLR OTLT (BRIDGE HOSE) (INCLS 10)
| DY (EXC JL7) |
2008-2009 |
01 |
|
| 010 |
|
CЛАМПА, P/S FLUID CLR OTLT HOSE (ЧАСТЬ OF 9) |
|
2008-2009 |
|
| 011 |
15236157 |
COOLER, P/S FLUID
| DY29 (EXC JL7) (EXPORT) |
2008-2009 |
01 |
|
| 012 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (P/S FLUID CLR BRKT) |
|
2008-2009 |
01 |
| 013 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) |
|
2008-2009 |
02 |
| 014 |
|
CЛАМПА, P/S GR INL HOSE (ЧАСТЬ OF 23) |
|
2008-2009 |
|
| 015 |
25900770 |
PUMP, P/S (СМ. ГРУППУ 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА)
| DY (LLT) (EXPORT) |
2008-2009 |
01 |
|
| 016 |
|
CLIP, P/S GR OTLT PIPE (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 017 |
15804772 |
HOSE, P/S GR INL (INCLS 16, 18, 24) |
DY29 (LLT, NV7) (EXPORT) |
2008-2009 |
01 |
| 018 |
25779597 |
SEAL, P/S GR OTLT PIPE (O RING) (ЧАСТЬ OF 17, 23) (6.673) |
DY29 (LH2, LLT) (EXPORT) |
2008-2009 |
01 |
| 019 |
11517937 |
БОЛТ, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT)
|
2008-2009 |
01 |
|
| 020 |
15918816 |
GROMMET, P/S GR INL PIPE (ЧАСТЬ OF 23) |
DY29 (EXPORT) |
2008-2009 |
01 |
| 021 |
15918812 |
INSULATOR, P/S GR INL OTLT PIPE |
DY29 (LH2, LLT) (EXPORT) |
2008-2009 |
02 |
| 022 |
15918810 |
BRACKET, P/S GR INL HOSE OTLT PIPE (LEFT) |
DY29 (LH2, LLT) (EXPORT) |
2008-2009 |
02 |
| 023 |
15804770 |
HOSE, P/S GR OTLT (INCLS 14, 18, 20) |
DY29 (LH2, LLT, NV7) (EXPORT) |
2008-2008 |
01 |
| 024 |
25779597 |
SEAL, P/S GR PIPE (O RING) (ЧАСТЬ OF 17) (6.673) |
DY29 (EXPORT) |
2008-2009 |
01 |
| 025 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) |
|
2008-2009 |
01 |
| 026 |
19168192 |
BRACKET, P/S FLUID RSVR |
DY29 (LLT) (EXPORT) |
2008-2009 |
01 |
| 027 |
88964537 |
БОЛТ, P/S FLUID RSVR BRKT |
DY29 (EXPORT) |
2008-2009 |
01 |
