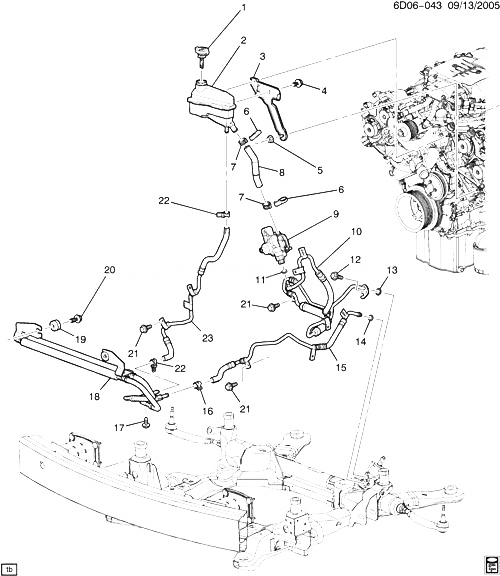

(6D06-043) - 2006-2009 DX29 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ LINES (LC3/4.4D) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88964536 CAP, P/S FLUID RSVR DW, DX29 2008-2009 01
002 19133714 RESERVOIR, P/S PUMP FLUID D29 2006-2009 01
003 88967187 BRACKET, P/S FLUID RSVR DX29 2006-2009 01
004 88964537 БОЛТ, P/S FLUID RSVR BRKT DX29 2008-2009 01
005 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (P/S FLUID RSVR BRKT) 2006-2009 02
006 CLIP, P/S RSVR OTLT (ЧАСТЬ OF 8) 2006-2009
007 CЛАМПА, P/S FLUID RSVR OTLT HOSE (ЧАСТЬ OF 8) 2006-2009
008 15251169 HOSE, P/S FLUID RSVR OTLT (INCLS 6, 7) DX29 2006-2009 01
009 25900772 PUMP, P/S DX 2006-2009 01
010 25828221 HOSE, P/S GR INL DX 2006-2009 01
011 SEAL, P/S GR INL HOSE FTG (O RING) 2006-2009
012 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (P/S GR INL OTLT PIPE RET) 2006-2009 07
013 SEAL, P/S GR INL HOSE (O RING) (*KIT1) 2006-2009
014 SEAL, P/S GR OTLT HOSE (O-RING) (*KIT1) 2006-2009
015 15816654 HOSE, P/S GR OTLT (INCLS 16) DX 2006-2008 01
016 CLIP, P/S GR OTLT HOSE (ЧАСТЬ OF 15) 2006-2009
017 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/S FLUID CLR BRKT) 2006-2009 01
018 15906726 COOLER, P/S FLUID (INCLS 19) DX29 2007-2008 01
019 GROMMET, P/S FLUID COOLER (ЧАСТЬ OF 18) 2006-2009
020 11516931 БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) 2006-2009 02
021 10199206 БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) DX 2006-2009 07
021 10199206 БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) DX 2006-2009 07
022 CЛАМПА, P/S FLUID CLG HOSE (ЧАСТЬ OF 23) 2006-2009
023 15789000 HOSE, P/S FLUID CLR OTLT (INCLS 22) DX (LC3, V08) 2008-2008 01
