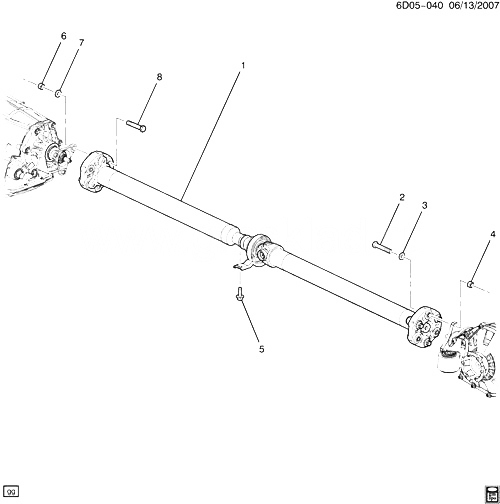

(6D05-040) - 2008-2009 DW,DY29 ВАЛ ПРИВОДА-КАРДАННЫЙ ВАЛ КРЕПЛЕНИЕ (ЗАДНИЙ КОЛЕСО DRIVE MX0) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15225526 SHAFT, PROP DY (MX0) (EXPORT) 2008-2009 01
001 15225526 SHAFT, PROP DW (MX0) 2008-2010 01
002 11588658 БОЛТ, RR PROP SHF (M12X1.75X70) (HEX) (8.900) D29 2008-2010 03
003 11588689 WASHER, RR PROP SHF (ID 12.25, OD 23.0, THK 3.38MM) D29 2008-2010 03
004 11516073 ГАЙКА, RR PROP SHF (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917) D29 2008-2010 03
005 11561618 БОЛТ, PROP SHF BRG SUPT (M10X1.5X35) (11.561) DY (EXPORT) 2008-2009 02
005 11561618 БОЛТ, PROP SHF BRG SUPT (M10X1.5X35) (11.561) DW 2008-2010 02
006 11516073 ГАЙКА, FRT PROP SHF (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917) D29 2008-2010 03
007 11588689 WASHER, FRT PROP SHF (ID 12.25, OD 23.0, THK 3.38MM) D29 2008-2010 03
008 11588658 БОЛТ, FRT PROP SHF (M12X1.75X70) (HEX) (8.900) D29 2008-2010 03
