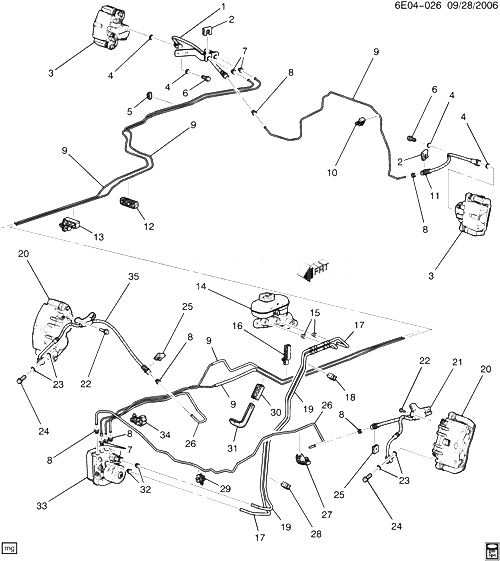

(6E04-026) - 2008-2009 DY29 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15875843 HOSE, RR BRK (INCLS 4, 6) DW, DX, DY29 (J56) 2008-2008 01
001 15933092 HOSE, RR BRK (1 HOSE) (INCLS 4, 6) (ACDelco #15933092) DW, DY29 (JE5, JL9) 2008-2009 01
002 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) D 2008-2009 02
003 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
004 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 1, 11) 2008-2009
005 15880948 RETAINER, BRK PIPE (IN 1ST POSITION JUST BEHIND MASTER CYL) (FOR 5 LINES W/45 DEGREE PUSHPIN) DW, DY29 (LLT, JE5, JL9) 2008-2009 02
006 БОЛТ, RR BRK FRT PIPE FTG (ЧАСТЬ OF 1, 11) 2008-2009
007 11569737 FITTING, RR BRK FRT PIPE (7/16-24X0.36, 0.30THD) (0.56 LONG, 3/16TUBE) D 2008-2009 01
008 11569737 FITTING, FRT BRK PIPE (7/16-24X0.36, 0.30THD) (0.56 LONG, 3/16TUBE) D 2008-2009 02
008 11570762 FITTING, FRT BRK PIPE DY29 (LH2, J56) (EXPORT) 2008-2009 01
008 11570762 FITTING, FRT BRK PIPE DY29 (LLT, J56) (EXPORT) 2008-2009 01
009 88983905 PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING) D 2008-2009 AR
010 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) D 2008-2009 04
011 15875844 HOSE, RR BRK (INCLS 4, 6) DW, DX, DY29 (J56) 2008-2008 01
011 15933091 HOSE, RR BRK (1 HOSE) (INCLS 4, 6) (ACDelco #15933091) DY29 (JE5, JL9) (EXPORT) 2008-2009 01
012 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) DW, DY (LH2, JE5, JL9) (EXC JL7) 2008-2008 01
013 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) D (LH2) 2008-2008 02
014 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ЦИЛИНДР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
015 11588803 FITTING, BRK PRESS MOD VLV FRT BRK PIPE (ЧАСТЬ OF 17, 19) (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE) DW, DY 2008-2008 02
016 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D29 (LH2, JE5, JL9, J56) 2008-2008 02
017 25801377 PIPE, BRK PRESS MOD VLV FRT (INCLS 15, 32) DY (EXPORT) 2008-2009 01
018 03541444 SPACER, FRT BRK PIPE DY (EXPORT) 2008-2008 02
019 25801397 PIPE, BRK PRESS MOD VLV RR (INCLS 15, 32) DY 2008-2009 01
020 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
021 15933094 HOSE, FRT BRK (INCLS 23, 24) DY29 (EXPORT) 2008-2009 01
022 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) 2008-2009 04
023 GASKET, FRT BRK HOSE FTG (ЧАСТЬ OF 21, 35) 2008-2009
024 БОЛТ, FRT BRK PIPE FTG (ЧАСТЬ OF 21, 35) 2008-2009
025 11569742 RETAINER, FRT BRK HOSE (ЧАСТЬ OF 35) (1 SIDED RETAINER) D 2008-2009 02
026 PIPE, FRT BRK (INCLS 29, 34) 2008-2009
027 25743891 RETAINER, FRT BRK PIPE (THREE WAY RETAINER SNAP LOCK CLOSURE SINGLE OFFSET FIR-TREE ATTACHMENT) DY 2008-2008 02
028 03541444 SPACER, FRT BRK PIPE DY (EXPORT) 2008-2008 02
029 25737279 CLIP, FRT BRK PIPE (ЧАСТЬ OF 26) (THREE WAY RETAINER SINGLE CENTRAL FIR-TREE ATTACHMENT) DY29 (JJL) 2008-2008 02
030 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DW, DY29 (LLT, JE5, JL9, J56) 2008-2008 01
030 15223305 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS TWO LINES W/PRONG) DY29 (LLT, JE5, JL9, J56) (EXPORT) 2008-2008 01
030 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) D29 (LC3, LH2, JE5, JL9) 2008-2008 01
030 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE D29 (LC3, LH2, JE5, JL9) 2008-2008 01
030 25867887 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) D (LH2) 2008-2008 01
030 25867887 CLIP, FUEL FEED EVAP EMIS FRT PIPE D (LH2) 2008-2008 01
031 25761218 BRACKET, FUEL PIPE D 2008-2009 01
032 15724650 ГАЙКА, INVERTED FLARED TUBE, 9/16-18, 1/4 TUBE, ZD (ЧАСТЬ OF 17, 19) (4.686) 2008-2009 01
033 VALVE, BRK PRESS MOD (СМ. ГРУППУ 04.000 КЛАПАН РЕГУЛИРОВКИ ДАВЛЕНИЯ В ТОРМОЗНОЙ СИСТЕМЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
034 RETAINER, RR BRK FRT PIPE (ЧАСТЬ OF 26) 2008-2009
035 15933095 HOSE, FRT BRK (INCLS 23-25) (ACDelco #176-1499) DY29 (EXPORT) 2008-2009 01
