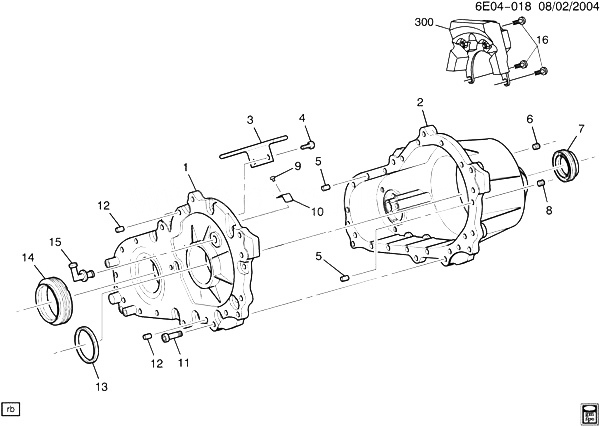

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CASE, TRFER (FRT HALF) (INCLS 12-14) |
|
2006-2010 |
|
| 001 |
88996677 |
CASE, TRFER (FRT HALF) (INCLS 12-14) |
D29 (MYB) |
2008-2010 |
01 |
| 002 |
19133265 |
CASE, TRFER (RR HALF) (INCLS 5, 7) |
D29 |
2007-2009 |
01 |
| 003 |
88996679 |
SNUBBER, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN |
D |
2006-2010 |
01 |
| 004 |
88996680 |
БОЛТ, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN SNBR (M5X0.8X16) |
D29 |
2006-2009 |
02 |
| 005 |
88984499 |
PIN, TRFER CASE HALF LOC (ЧАСТЬ OF 2) |
D29 |
2006-2010 |
02 |
| 006 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRFER CASE OIL FILL) (ACDelco #25522466)
|
2006-2010 |
01 |
|
| 007 |
88996657 |
SEAL, TRFER CASE RR ВЫХОДНОЙ SHF (ЧАСТЬ OF 2)
| D29 |
2006-2009 |
01 |
|
| 008 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRFER CASE OIL DRN) (ACDelco #25522466)
|
2006-2010 |
01 |
|
| 009 |
88996680 |
БОЛТ, TRFER CASE VENT BFL (M5X0.8X16) (4.535) |
D29 |
2006-2010 |
01 |
| 010 |
88996658 |
BAFFLE, TRFER CASE VENT |
D29 |
2006-2010 |
01 |
| 011 |
89048123 |
БОЛТ, TRFER CASE HALF (M8X1.25X30) |
D29 |
2006-2009 |
17 |
| 012 |
88984499 |
PIN, TRFER CASE HALF LOC (ЧАСТЬ OF 1) |
D29 |
2006-2010 |
02 |
| 013 |
88996656 |
SEAL, TRFER CASE INPUT SHF (ЧАСТЬ OF 1)
| D |
2006-2010 |
01 |
|
| 014 |
88996657 |
SEAL, TRFER CASE FRT ВЫХОДНОЙ SHF (ЧАСТЬ OF 1)
| D29 |
2006-2009 |
01 |
|
| 015 |
|
VENT, TRFER CASE |
|
2006-2010 |
|
| 016 |
11589341 |
БОЛТ - HFH, M10X1.5X69.9, 28.35 THD, 22.3 OD, 10.9, GMW3359, M-PT. (TRFER CASE VIB DPNR)
|
2006-2010 |
03 |
|
| 300 |
19133175 |
DAMPENER, TRFER CASE VIB (YOKE STYLE БОЛТS TO RR OF T-CASE) |
DW29 (LLT, MX7) |
2008-2010 |
01 |
