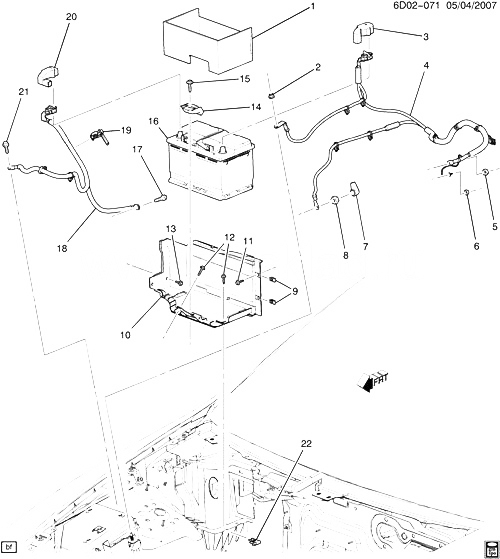

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25781867 |
SHIELD, BAT HT |
DW, DX |
2008-2009 |
01 |
| 002 |
11610091 |
ГАЙКА, BAT POS CBL (M8 X 1.25) (8.917) |
DW, DX, DY29 |
2008-2008 |
01 |
| 003 |
|
COVER, BAT POS CBL TERM (ЧАСТЬ OF 4) |
|
2008-2009 |
|
| 003 |
|
COVER, BAT POS CBL TERM (ЧАСТЬ OF 4) |
|
2008-2010 |
|
| 004 |
20767123 |
CABLE, BAT POS (INCLS 3, 7) (LABELED 20767123) (ACDelco #20767123) |
DX (LC3) |
2008-2009 |
01 |
| 004 |
25788165 |
CABLE, BAT POS (INCLS 3, 7) (LABELED 25788165) (ACDelco #25788165) |
DX (LC3) |
2008-2009 |
01 |
| 004 |
25788166 |
CABLE, BAT POS (INCLS 3, 7) (ACDelco #25788166) (LABELED 25788166) |
DW (LH2) |
2008-2008 |
01 |
| 005 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| DW29 (LH2) |
2008-2009 |
01 |
|
| 005 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| DX (LC3) |
2008-2009 |
01 |
|
| 006 |
11504568 |
ГАЙКА, HEX M5X0.8 PREV TORQ INSERT 9 ZC (STRTR SOL CBL) |
|
2008-2010 |
01 |
| 007 |
12146809 |
COVER, GEN WIRE TERM (ЧАСТЬ OF 4) (BLACK) (TERMINAL BOOT COVER) (2.343) |
D |
2008-2008 |
01 |
| 008 |
11515535 |
ГАЙКА, BAT WIRE (ATTACHES TO BACK OF GENERATOR) (2.559) |
D29 |
2008-2008 |
01 |
| 009 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 10) |
|
2008-2010 |
02 |
| 010 |
25783791 |
TRAY, BAT (INCLS 9) |
DX |
2008-2009 |
01 |
| 010 |
25783791 |
TRAY, BAT (INCLS 9) |
DW |
2008-2010 |
01 |
| 011 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (AIR INL) |
|
2008-2010 |
03 |
| 012 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (BAT TRAY) |
|
2008-2010 |
05 |
| 013 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2008-2010 |
02 |
|
| 014 |
25867297 |
RETAINER, BAT HOLDN |
DW, DX29 |
2008-2009 |
01 |
| 015 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BAT HOLDN RET)
|
2008-2010 |
01 |
|
| 016 |
89022169 |
АККУМУЛЯТОР, (CCA 770) (TOP POST) (277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #48-7YR) (PROFESSIONAL - 7 YR) |
DW29 (LH2, LLT) |
2008-2009 |
01 |
| 016 |
89022169 |
АККУМУЛЯТОР, (CCA 770) (TOP POST) (277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #48-7YR) (PROFESSIONAL - 7 YR) |
DX29 (LC3) |
2008-2009 |
01 |
| 017 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT CBL TERM) |
|
2008-2010 |
01 |
| 018 |
25788168 |
CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25788168) (LABELED 25788168) |
DW (LH2) |
2008-2008 |
01 |
| 018 |
25788168 |
CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25788168) (LABELED 25788168) |
DX (LC3) |
2008-2008 |
01 |
| 018 |
25930836 |
CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25930836) (LABELED 25930836) |
DW29 (LH2) |
2008-2008 |
01 |
| 018 |
25930836 |
CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25930836) (LABELED 25930836) |
DX29 (LC3) |
2008-2008 |
01 |
| 019 |
10306471 |
SENSOR, BAT CUR (ЧАСТЬ OF 18)
| DW29 (LH2) |
2008-2009 |
01 |
|
| 019 |
10306471 |
SENSOR, BAT CUR (ЧАСТЬ OF 18)
| DX29 (LC3) |
2008-2009 |
01 |
|
| 020 |
19116749 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) |
DX29 (LC3) |
2008-2009 |
01 |
| 020 |
19116749 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) |
DW29 (LH2) |
2008-2010 |
01 |
| 021 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| DX29 (LC3) |
2008-2009 |
01 |
|
| 021 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| DW29 (LH2) |
2008-2010 |
01 |
|
| 022 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (AIR INL HSG) |
|
2008-2010 |
05 |
