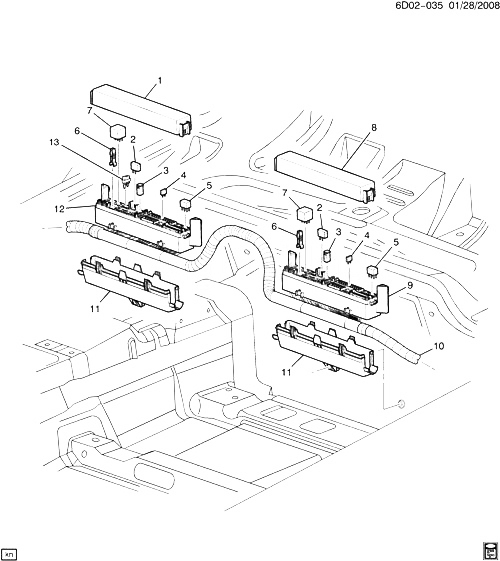

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, BODY I/P WRG HARN J/BLK (ЧАСТЬ OF 10) |
|
2006-2008 |
|
| 002 |
12077863 |
BREAKER, CIRCUIT, 30 AMP, GREEN (ЧАСТЬ OF 10) |
|
2005-2010 |
02 |
| 003 |
15319477 |
FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (ЧАСТЬ OF 10)
|
2005-2010 |
01 |
|
| 003 |
15319478 |
FUSE, 40AMP, GREEN, J-CASE, FEMALE (ЧАСТЬ OF 10) (ACDelco #15319478)
|
2005-2010 |
AR |
|
| 004 |
12077863 |
BREAKER, CIRCUIT, 30 AMP, GREEN (ЧАСТЬ OF 10) |
|
2005-2010 |
02 |
| 004 |
12092079 |
FUSE, 10A, MINI, RED (ЧАСТЬ OF 10) |
|
2005-2010 |
AR |
| 004 |
12092080 |
FUSE, 7.5A, MINI, BROWN (ЧАСТЬ OF 10)
|
2005-2010 |
02 |
|
| 004 |
88909754 |
FUSE, 15A, MINI, BLUE (ЧАСТЬ OF 10) (ACDelco #ATM15-25)
|
2005-2010 |
AR |
|
| 004 |
88909755 |
FUSE, 20A, MINI, YELLOW (ЧАСТЬ OF 10) (ACDelco #ATM20-25)
|
2005-2010 |
04 |
|
| 005 |
19116059 |
RELAY, F/PMP (ЧАСТЬ OF 10) (GRAY) (4 TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) |
D |
2008-2010 |
01 |
| 005 |
88953222 |
RELAY, S/LP SW (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D |
2006-2008 |
01 |
|
| 005 |
88953222 |
RELAY, S/LP SW (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| DW, DX29 |
2008-2008 |
01 |
|
| 005 |
88953222 |
RELAY, INTR LP (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D29 |
2006-2008 |
01 |
|
| 005 |
88953222 |
RELAY, IGN (ЧАСТЬ OF ДВИГАТЕЛЬ HARNESS) (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D |
2005-2008 |
01 |
|
| 005 |
88953222 |
RELAY, RR FOG LP (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D29 (EXC UA2) |
2006-2008 |
01 |
|
| 005 |
88953222 |
RELAY, B/U LP (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D (EXC UA2) |
2005-2008 |
01 |
|
| 005 |
88953222 |
RELAY, R/CMPT LID REL (ЧАСТЬ OF 10) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A)
| D29 |
2006-2008 |
01 |
|
| 005 |
89047063 |
RELAY, HDLP (ЧАСТЬ OF 10) (2.596) (ACDelco #D1761A) |
D |
2006-2008 |
02 |
| 005 |
89047063 |
RELAY, DSL WAIT IND LP (ЧАСТЬ OF 10) (2.596) (ACDelco #D1761A) |
D |
2006-2008 |
01 |
| 005 |
89047063 |
RELAY, HDLP (ЧАСТЬ OF 10) (2.596) (ACDelco #D1761A) |
D |
2006-2008 |
02 |
| 005 |
89047063 |
RELAY, INT AIR HTR (ЧАСТЬ OF 10) (2.596) (ACDelco #D1761A) |
D |
2006-2008 |
01 |
| 006 |
19116060 |
PULLER, FUSE (ЧАСТЬ OF 10) |
D |
2005-2010 |
01 |
| 007 |
19116059 |
RELAY, ACSRY (ЧАСТЬ OF 10) (GRAY) (4 TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) |
DW, DX29 |
2008-2009 |
01 |
| 007 |
19116059 |
RELAY, ACSRY (ЧАСТЬ OF 10) (GRAY) (4 TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) |
DY29 (EXPORT) |
2008-2009 |
01 |
| 007 |
21997408 |
RELAY, AUTO LVL CONT (ЧАСТЬ OF 10) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) |
D29 |
2006-2008 |
01 |
| 007 |
21997408 |
RELAY, R/WDO DEFG (ЧАСТЬ OF 10) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) |
DW, DX29 |
2008-2008 |
01 |
| 008 |
|
COVER, BODY I/P WRG HARN J/BLK (ЧАСТЬ OF 10) |
|
2006-2008 |
|
| 009 |
|
BLOCK, WRG HARN FUSE |
|
2008-2008 |
|
| 010 |
|
HARNESS, BODY WRG (INCLS 1-9, 11, 12-13) (СМ. ГРУППУ 13.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2005-2010 |
|
| 011 |
88956533 |
COVER, PWR DISTR FUSE BLK (ЧАСТЬ OF 10) (LOWER COVER FOR THE LH RH ЗАДНИЙ J/BLKS) (13.100) |
D29 |
2005-2008 |
02 |
| 012 |
|
BLOCK, WRG HARN FUSE (ЧАСТЬ OF 10) |
|
2008-2008 |
|
| 013 |
12135037 |
DIODE, M/FUNC (ЧАСТЬ OF 10) (1 AMP)
| D29 |
2006-2008 |
01 |
|
