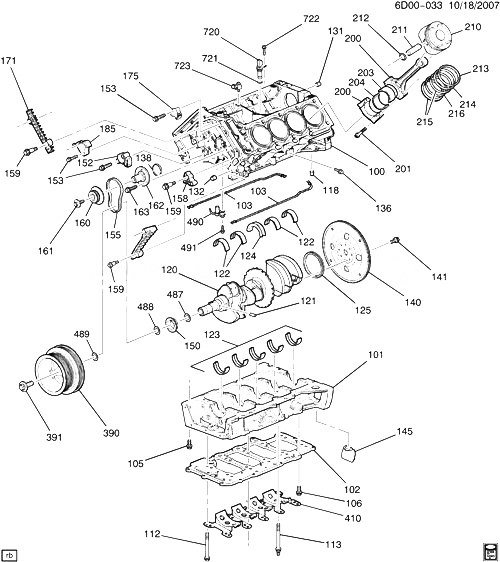

(6D00-033) - 2006-2009 DX29 ДВИГАТЕЛЬ В СБОРЕ-4.4L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ ВНУТРЕННИЕ ДЕТАЛИ (LC3/4.4D) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2006-2009
101 CRANKCASE, LWR (MCHG) 2006-2009
102 12580850 MANIFOLD, ENG OIL (СМ. ГРУППУ 00.000 ДВИГАТЕЛЬ В СБОРЕ/МАСЛЯНЫЙ НАСОС, PAN ДЕТАЛИ КОМПЛЕКТА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (WITHOUT МАСЛЯНЫЙ ПОДДОН BAFFLE) D (LC3) 2006-2009 01
103 12573430 SEAL, LWR C/CASE (4.3MM WIDE X 5MM TALL) D (LC3) 2006-2009 02
105 11610074 БОЛТ-HFH, M8X1.25X45, 21 THD, 16 OD, 10.9 STL, GMW3359 (LWR C/CASE) 2006-2009 10
106 03522376 БОЛТ, HFH, M6X1X23, 18 THD, 14.50 OD, 7T, ZP (ENG OIL MANIF) 2006-2009 10
112 03542310 БОЛТ, LWR C/CASE (M10X1.5X125, 30 THD) (8.900) D (LC3) 2006-2009 10
113 11561906 STUD, LWR C/CASE (M10X1.5X133.8, M9X1X13) (8.981) D (LC3) 2006-2009 01
118 03530355 PIN, LWR C/CASE LOC (M8X20) D (LC3) 2006-2009 04
120 12593766 CRANKSHAFT, (INCLS 121) D (LC3) 2006-2009 01
121 12585420 PIN, CR/SHF SPKT LOC (ЧАСТЬ OF 120) D (LC3) 2006-2009 01
122 89017562 BEARING KIT, CR/SHF (INCLS 123) (STD) (POSN # 1, 2, 4, 5) D (LC3) 2006-2009 01
123 BEARING, CR/SHF LWR (ЧАСТЬ OF 122) 2006-2009
124 89017563 BEARING KIT, CR/SHF (STD) (POSN # 3) D (LC3) 2006-2009 01
125 12568025 SEAL, CR/SHF RR OIL D (LC3) 2006-2009 01
131 12338076 PIN, TRANSAXLE LOC (19.5 MM X 18.5 MM) (TO CYL BLK) D (LH2, LC3) 2006-2009 02
132 03525915 PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) D (LC3) 2006-2009 02
136 24503702 PLUG, ENG BLK COOL HOLE (8X1.25X12, 10.5 THD W/6MM OF 6124M ADHES, 17.6 OD, 9.8, PC) D (LC3) 2006-2009 01
138 03522422 PLUG, CM/SHF (CUP, W/LIP, 50.24X6.12X1.52, 52.58 OD, 1008, OIL) D (LC3) 2006-2009 01
140 12582606 FLYКОЛЕСО, ENG D (LC3) 2006-2009 01
141 11589116 БОЛТ, FLYWHL (8.900) D (LC3) 2006-2009 08
145 12568122 COVER, FLYWHL HSG D29 (LC3, MYC) 2006-2009 01
150 12570154 SPROCKET, CR/SHF D (LC3) 2006-2009 01
152 12581223 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (PRIMARY) D (LC3) 2006-2009 01
153 01647264 БОЛТ, TMG CHAIN TENSR (HFH, 8X1.25X42, 22 THD, 17.0 OD, 9.8, PC, MACH) D (LC3) 2006-2009 06
155 12564274 CHAIN, PRIM TMG D (LC3) 2006-2009 01
158 12559388 GUIDE KIT, TMG CHAIN (PRIMARY CHAIN) (INCLS 159) D (LC3) 2006-2009 01
159 12553743 БОЛТ, CM/SHF INTER DRV CHAIN TENSR (ЧАСТЬ OF 158) (HFH, 8X1.25X41.8, 16.34 THD, 19.0, 12.85 BODY, 9.8, PC MACH) D (LC3) 2006-2009 08
160 12577433 SPROCKET, CM/SHF INTER DRV SHF D (LC3) 2006-2009 01
161 01647272 БОЛТ, CM/SHF SPKT D (LC3) 2006-2009 01
162 12577790 SHAFT, CM/SHF INTER DRV D (LC3) 2006-2009 01
163 15685550 БОЛТ, CM/SHF INTER DRV SHF RET (M6X1X20) (16.330) D (LC3) 2006-2009 03
171 12556023 GUIDE, TMG CHAIN (SECONDARY CHAIN GUIDE) D (LC3) 2006-2009 02
175 12556030 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (SECONDARY ON LH BANK) D (LC3) 2006-2009 01
185 12581281 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (SECONDARY ON RH BANK) D (LC3) 2006-2009 01
200 12606367 ROD, CONN (INCLS 201) D (LC3) 2006-2009 08
201 12552947 БОЛТ, CONN ROD (ЧАСТЬ OF 200) (MJ9X1.0-4H6HX61.9 LONG) D (LC3) 2006-2009 16
203 BEARING, CONN ROD (*KIT1) 2006-2009
204 BEARING, CONN ROD (*KIT1) 2006-2009
210 89018063 PISTON, (MCHG) (INCLS 211, 212) D (LC3) 2006-2009 08
211 PIN, PSTN (ЧАСТЬ OF 210) 2006-2009
212 12569638 RETAINER, PSTN PIN (ЧАСТЬ OF 210) D (LC3) 2006-2009 16
213 RING, PSTN CMPRN UPR (*KIT2) 2006-2009
214 RING, PSTN CMPRN LWR (*KIT2) 2006-2009
215 RAIL, PSTN OIL RING (*KIT2) 2006-2009
216 SPACER, PSTN OIL RING RL (*KIT2) 2006-2009
390 12603533 BALANCER, CR/SHF D (LC3) 2006-2009 01
391 11569873 БОЛТ, CR/SHF BALR (M14X1.5X48.4) D (LC3) 2006-2008 01
391 11569873 БОЛТ, CR/SHF BALR (M14X1.5X48.4) D (LC3) 2006-2009 01
410 12577394 BAFFLE, МАСЛЯНЫЙ ПОДДОН (B/W CRANK CASE AND PAN) D (LC3) 2006-2009 01
487 12591717 WASHER, CR/SHF BALR (BETWEEN TIMING SPRK AND CR SHFT FLANGE) (1 NOTCH) DX29 (LC3) 2006-2009 01
488 12601752 WASHER, CR/SHF BALR (BETWEEN TMNG SPRK AND МАСЛЯНЫЙ НАСОС DRIVE) (6 NOTCHES) DX29 (LC3) 2006-2009 01
489 12591719 WASHER, CR/SHF BALR (BETWEEN МАСЛЯНЫЙ НАСОС AND DAMPENER) (NO NOTCHES) DX29 (LC3) 2006-2009 01
490 12595158 NOZZLE, PSTN OIL D (LC3) 2006-2009 04
491 11517516 БОЛТ, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (PSTN OIL NOZ) 2006-2009 04
720 12580429 SENSOR, CR/SHF POSN (INCLS 721) (ACDelco #213-3515) D (LC3) 2006-2009 01
721 SEAL, CR/SHF POSN SEN (O RING) (ЧАСТЬ OF 720) 2006-2009
722 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF POSN SEN) 2006-2009 01
723 12570125 SENSOR, KNOCK (ACDelco #213-1576) D (LC3) 2006-2009 02
K01 12559363 BEARING KIT, CONN ROD (STD) (INCLS 203, 204) D (LC3) 2006-2009 08
K02 89017770 RING KIT, PSTN (INCLS 213-216) D (LC3) 2006-2009 08
