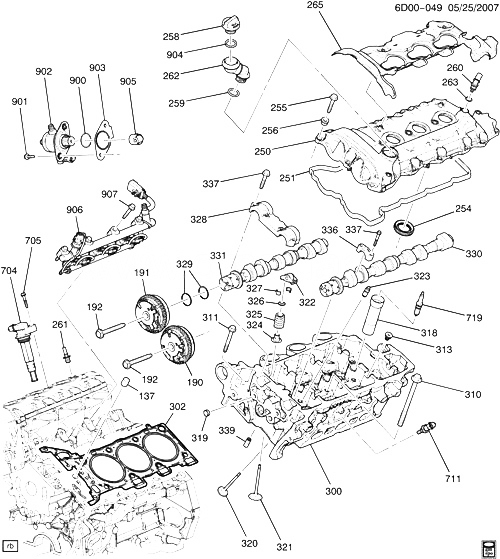

(6D00-049) - 2008 DW,DY29 ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ ДЕТАЛИ КОМПЛЕКТА (LLT/3.6V) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
137 12570326 PIN, CYL HD LOC D (LLT) 2008-2008 04
190 12606653 ACTUATOR, CM/SHF POSN (USE WASHER 12630941) D (LLT) 2008-2008 02
191 12603744 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) D (LLT) 2008-2008 01
191 12603745 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) D (LLT) 2008-2008 01
192 11588279 БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN) 2008-2008 04
250 12624804 COVER, CM/SHF (INCLS 251, 254-256, 260, 263) D (LLT) 2008-2008 01
250 12626054 COVER, CM/SHF (INCLS 251, 254-256, 261) D (LLT) 2008-2008 01
251 12595107 SEAL, CM/SHF CVR (ЧАСТЬ OF 250) (*KIT1) D (LLT) 2008-2008 01
251 12607401 SEAL, CM/SHF CVR (ЧАСТЬ OF 250) (*KIT1) D (LLT) 2008-2008 01
254 12607600 SEAL, SPLG SHLD (ЧАСТЬ OF 250) DM, DW (LLT) 2008-2008 06
254 12607600 SEAL, SPLG SHLD (ЧАСТЬ OF 250) DY (LLT) (EXPORT) 2008-2008 06
255 11518859 БОЛТ, HFH W/SHLDR, M6X1X35, 11.85 THD, 18 O.D., 8.8, GMW3359 (ЧАСТЬ OF 250) 2008-2008 26
256 12595122 INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 250) (*KIT1) D (LLT) 2008-2008 28
258 12593356 CAP, OIL FIL (INCLS 904) (ACDelco #FC221) D (LLT) 2008-2008 01
259 12593348 SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 262) (27.94MM I.D.) (SIZE #320) D (LLT) 2008-2008 01
262 12615294 TUBE, OIL FIL (INCLS 259) D (LLT) 2008-2008 01
263 SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 250, 260) 2008-2008
265 12601745 INSULATOR, CM/SHF HSG CVR D (LLT) 2008-2008 01
265 12603147 INSULATOR, CM/SHF HSG CVR D (LLT) 2008-2008 01
300 12590607 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LLT) 2008-2008 01
300 12617767 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LLT) 2008-2008 01
302 12620190 GASKET, CYL HD (*KIT1) D (LLT) 2008-2008 01
302 12624743 GASKET, CYL HD (*KIT1) D (LLT) 2008-2008 01
311 11588734 БОЛТ, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD) 2008-2008 03
313 11561751 PLUG, CYL HD WAT JKT HOLE (ЧАСТЬ OF 300) (M20X1.5X30.5) (1.531) D (LLT) 2008-2008 02
318 SLEEVE, SPLG WIRE (ЧАСТЬ OF 300) 2008-2008
320 12575354 VALVE, EXH (STD) D (LLT) 2008-2008 12
320 12584760 VALVE, EXH (0.075 O.S.) D (LLT) 2008-2008 12
321 12575351 VALVE, INT (STD) D (LLT) 2008-2008 12
321 12584763 VALVE, INT (0.075MM O.S.) (0.297) D (LLT) 2008-2008 12
322 24100294 ARM, VLV RKR D (LLT) 2008-2008 24
323 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) D (LLT) 2008-2008 24
324 12565836 SEAL, VLV STEM OIL D (LLT) 2008-2008 24
325 12575355 ПРУЖИНА, VLV D (LLT) 2008-2008 24
326 12575196 RETAINER, VLV SPR D (LLT) 2008-2008 24
327 12575197 KEY, VLV STEM D (LLT) 2008-2008 48
328 CAP, CM/SHF BRG (ЧАСТЬ OF 300) 2008-2008
329 12574477 RING, CM/SHF SPKT OIL SEAL (ЧАСТЬ OF 330, 331) D (LLT) 2008-2008 08
330 12604375 CAMSHAFT, EXH (INCLS 329) D (LLT) 2008-2008 01
330 12604376 CAMSHAFT, EXH (INCLS 329) D (LLT) 2008-2008 01
330 12604376 CAMSHAFT, EXH (INCLS 329) DY (LLT) (EXPORT) 2008-2008 01
331 12604374 CAMSHAFT, INT (INCLS 329) D (LLT) 2008-2008 01
331 12604377 CAMSHAFT, INT (INCLS 329) D (LLT) 2008-2008 01
336 CAP, CM/SHF BRG (ЧАСТЬ OF 300) 2008-2008
337 11518856 HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 300) 2008-2008 32
339 12580965 VALVE, ENG OIL MANIF CHK D (LLT) 2008-2008 04
704 12613057 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (INCLS 705) (ACDelco #12613057) D (LLT) 2008-2008 06
705 11588715 БОЛТ, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ЧАСТЬ OF 704) 2008-2008 AR
711 12566778 SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-1581) D (LLT, LY7) 2008-2008 01
711 12566778 SENSOR, ENG COOL TEMP (ACDelco #213-1581) D (LLT, LY7) 2008-2008 01
719 12597464 СВЕЧИ, (DO NOT CHANGE СВЕЧИ GAP) (ACDelco #41-990) (PLATINUM PLUG) D (LLT) 2008-2008 06
900 12600313 SEAL, F/PMP HSG (O RING) (ЧАСТЬ OF 902) (ACDelco #G43) D (LLT) 2008-2008 01
901 11562426 БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 902) 2008-2008 02
902 12626234 PUMP, FUEL (INCLS 900, 901, 903) (ACDelco #EP2129) D (LLT) 2008-2008 01
903 12595951 GASKET, F/PMP BRKT (ЧАСТЬ OF 902) D 2008-2008 01
904 12593348 SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 258) (27.94MM I.D.) (SIZE #320) D (LLT) 2008-2008 01
905 12590679 FOLLOWER, VLV LFTR (FUEL PUMP) D (LLT) 2008-2008 01
906 RAIL, DIR F/INJN FUEL (СМ. ГРУППУ 03.000 FUEL RAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2008
907 11519171 БОЛТ, F/INJN FUEL RL (M8X1.25X50) (3.275) D (LLT) 2008-2008 04
K01 12625782 GASKET KIT, CYL HD (INCLS 251, 256, 302) D (LLT) 2008-2008 01
