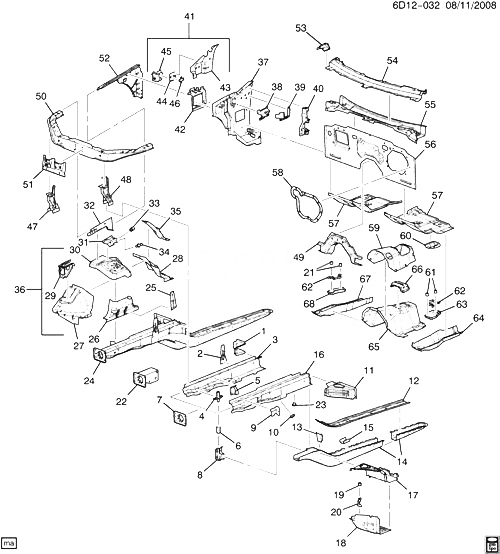

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
REINFORCEMENT, FLR PNL #1 C/BAR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 002 |
|
REINFORCEMENT, FRT W/H RR PNL (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 003 |
|
RAIL, F/CMPT INR SI (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 004 |
|
ГАЙКА, ENG MT (#1 CRADLE MT) (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 005 |
|
REINFORCEMENT, ENG FRT MT BRKT (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 006 |
|
ГАЙКА, ENG MT C/MBR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 007 |
|
REINFORCEMENT, F/CMPT INR S/RL (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 008 |
|
REINFORCEMENT, ENG MT C/MBR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 009 |
|
BRACKET, FRT W/H LWR FRT PNL (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 010 |
|
ГАЙКА, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 011 |
|
EXTENSION, F/CMPT OTR S/RL (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 012 |
|
REINFORCEMENT, F/CMPT S/RL RR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 013 |
|
DEFLECTOR, F/CMPT S/RL LWR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 014 |
|
RAIL, F/CMPT RR SI (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 015 |
|
REINFORCEMENT, F/CMPT S/RL SHPG HOOK (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 016 |
|
RAIL, F/CMPT OTR SI LWR (ЧАСТЬ OF 24) (*KIT1) |
|
2007-2010 |
|
| 017 |
|
EXTENSION, FLR PNL #1 C/BAR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 018 |
|
REINFORCEMENT, FLR PNL #1 C/BAR OTR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 019 |
11518595 |
NUT-HEX, M16X2, 24MM THK, 1008-1010 STL, PLAIN (ЧАСТЬ OF 24) |
|
2005-2010 |
01 |
| 020 |
|
REINFORCEMENT, FRT SUSP LWR SUPT RR (ЧАСТЬ OF 24) |
|
2007-2010 |
|
| 021 |
11518350 |
ГАЙКА, TRANS SUPT (ЧАСТЬ OF 68) (M10X1.5X24MM) |
D29 |
2006-2007 |
02 |
| 022 |
|
PLATE, F/CMPT S/RL |
|
2007-2010 |
|
| 023 |
25640395 |
ГАЙКА, ENG WRG HARN GND (ЧАСТЬ OF 24) (COPPER) (*KIT1) (9.647) |
D |
2005-2009 |
02 |
| 024 |
19120520 |
RAIL KIT, F/CMPT SI (INCLS 1-20, 23) (LWR) |
D29 |
2005-2008 |
01 |
| 024 |
19153415 |
RAIL KIT, F/CMPT SI (INCLS 1-20, 23) |
D29 |
2005-2008 |
01 |
| 025 |
10384299 |
REINFORCEMENT, FRT W/H PNL RR BR |
D29 |
2005-2009 |
01 |
| 026 |
|
PANEL, FRT W/H (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 027 |
|
EXTENSION, FRT W/H PNL FRT (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 028 |
|
EXTENSION, FRT W/H PNL (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 029 |
|
REINFORCEMENT, FRT W/H PNL UPR (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 030 |
|
ШЛАНГИ, FRT SUSP STRUT (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 031 |
|
BRACKET, F/FDR UPR (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 032 |
|
RAIL, F/CMPT FRT INR SI (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 033 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (ЧАСТЬ OF 36)
|
2005-2010 |
02 |
|
| 034 |
11609978 |
STUD, КАПОТ OPEN ASST ROD (ЧАСТЬ OF 36) (M6X1X16) (W/8MM BALL SIDE B)
| DW29 |
2005-2008 |
01 |
|
| 035 |
|
INSULATOR, FRT W/H PNL (ЧАСТЬ OF 36) |
|
2007-2010 |
|
| 036 |
15903605 |
PANEL, FRT W/H (INCLS 26-35) |
DW |
2005-2010 |
01 |
| 036 |
25783830 |
PANEL, FRT W/H (INCLS 26-35) |
DW29 |
2005-2010 |
01 |
| 037 |
19153098 |
PANEL, BODY H/PLR INR (INCLS 38-40) |
DW |
2005-2010 |
01 |
| 037 |
19153099 |
PANEL, BODY H/PLR INR (INCLS 38-40) |
DW |
2005-2010 |
01 |
| 038 |
|
SUPPORT, I/P OTR (ЧАСТЬ OF 37) |
|
2007-2010 |
|
| 039 |
|
BRACKET, DA LWR EXTN PNL (ЧАСТЬ OF 37) |
|
2007-2010 |
|
| 040 |
|
BRACKET, КАПОТ HGE LWR (ЧАСТЬ OF 37) |
|
2007-2010 |
|
| 041 |
10400148 |
REINFORCEMENT, BODY H/PLR UPR (INCLS 42-46) |
DW |
2005-2010 |
01 |
| 041 |
10400149 |
REINFORCEMENT, BODY H/PLR UPR (INCLS 42-46)
| DW |
2005-2010 |
01 |
|
| 042 |
|
REINFORCEMENT, BODY H/PLR UPR (ЧАСТЬ OF 41) |
|
2007-2010 |
|
| 043 |
|
REINFORCEMENT, BODY H/PLR UPR (ЧАСТЬ OF 41) |
|
2007-2010 |
|
| 044 |
|
REINFORCEMENT, FRT S/D UPR HGE (BODY SI) (ЧАСТЬ OF 41) |
|
2007-2010 |
|
| 045 |
|
REINFORCEMENT, FRT S/D CHK LINK (ЧАСТЬ OF 41) |
|
2007-2010 |
|
| 046 |
|
RETAINER, FRT S/D UPR HGE ANC PLT (BODY SI) (ЧАСТЬ OF 41) |
|
2007-2010 |
|
| 047 |
25711540 |
REINFORCEMENT, F/END UPR TIE BAR
| D29 |
2005-2009 |
01 |
|
| 048 |
25711541 |
REINFORCEMENT, F/END UPR TIE BAR
| D29 |
2005-2009 |
01 |
|
| 049 |
|
BAR, FLR PNL #1 CR |
|
2007-2010 |
|
| 050 |
25711564 |
BAR, F/END UPR TIE (INCLS 51) (UPPER)
| DW |
2007-2010 |
01 |
|
| 051 |
25711569 |
BRACKET, КАПОТ PRIM LAT (ЧАСТЬ OF 50) |
DW |
2005-2010 |
01 |
| 052 |
25829789 |
RAIL, F/CMPT OTR SI UPR |
D29 |
2005-2010 |
01 |
| 052 |
25829790 |
RAIL, F/CMPT OTR SI UPR |
D29 |
2005-2010 |
01 |
| 053 |
|
SEALER, BODY H/PLR (TO PLNM UPR PNL) |
|
2007-2010 |
|
| 054 |
|
PANEL, W/S FRM PLNM |
|
2007-2010 |
|
| 055 |
|
PANEL, PLNM LWR |
|
2007-2010 |
|
| 056 |
|
PANEL, DA UPR EXTN |
|
2007-2010 |
|
| 057 |
|
PANEL, DA LWR EXTN |
|
2007-2010 |
|
| 058 |
|
REINFORCEMENT, DA PNL (AT STRG COL OPG) |
|
2007-2010 |
|
| 059 |
|
INSULATOR, DA PNL LWR |
|
2007-2010 |
|
| 060 |
25696592 |
SUPPORT, PARK BRK FRT CBL |
D |
2005-2009 |
01 |
| 061 |
11518350 |
ГАЙКА, TRANS SUPT (ЧАСТЬ OF 63) (M10X1.5X24MM) |
D29 |
2006-2007 |
02 |
| 062 |
|
BRACE, TRANS SUPT (ЧАСТЬ OF 63, 68) |
|
2007-2010 |
|
| 063 |
25719541 |
REINFORCEMENT, TRANS SUPT (INCLS 61, 62) |
DW (MX5, MYB, MX7) |
2007-2007 |
01 |
| 063 |
25723918 |
REINFORCEMENT, TRANS SUPT (INCLS 61, 62) |
DW (MYB, M82, MX0) |
2007-2009 |
01 |
| 064 |
25715343 |
RAIL, TRANS MT SUPT FRT |
D29 (MX5, MYB, MYC) |
2007-2007 |
01 |
| 064 |
25723915 |
RAIL, TRANS MT SUPT FRT |
DW (MYB, M82, MX0) |
2007-2007 |
01 |
| 065 |
|
PANEL, DA LWR CTR EXTN |
|
2007-2010 |
|
| 066 |
|
REINFORCEMENT, DA PNL |
|
2007-2010 |
|
| 067 |
25715342 |
RAIL, TRANS MT SUPT FRT |
D29 (MX5, MYB, MYC) |
2007-2007 |
01 |
| 067 |
25723914 |
RAIL, TRANS MT SUPT FRT |
DW (MYB, M82, MX0) |
2007-2007 |
01 |
| 068 |
25710948 |
REINFORCEMENT, TRANS SUPT (INCLS 21, 62) |
DW (MX5, MYB, MX7) |
2007-2007 |
01 |
| 068 |
25723917 |
REINFORCEMENT, TRANS SUPT (INCLS 21, 62) |
DW (MYB, M82, MX0) |
2007-2009 |
01 |
| K01 |
19153414 |
RAIL, F/CMPT FRT SI (INCLS 3-5, 7, 9, 10, 16, 23) |
D29 |
2005-2008 |
01 |
