| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

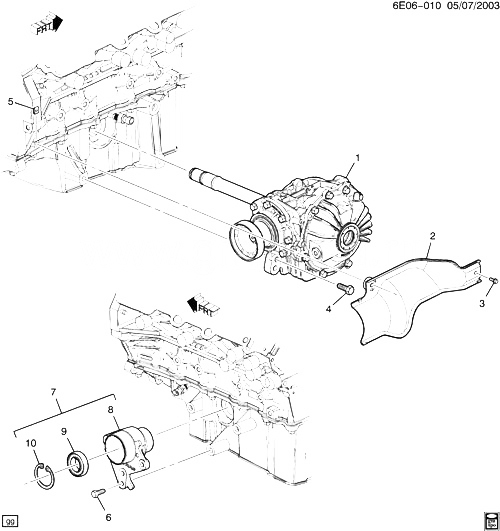

| 001 |
|
КРОНШТЕЙН, FRT DIFF (СМ. ГРУППУ 06.000 DIFFERENTIAL КРОНШТЕЙН/FRONT AXLE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2005-2010 |
|
| 002 |
25790586 |
SHIELD, F/AXL PROP SHF HT |
D29 |
2005-2007 |
01 |
| 003 |
11514139 |
БОЛТ, W/WA M6X1X26, 17 OD, HDR PNT, FULL THD, 9.8, POR (F/AXL PROP SHF HT SHLD)
|
2005-2010 |
02 |
|
| 004 |
11519346 |
БОЛТ, FRT DIFF CARR (БОЛТ-HFH W/CON WA, M12X1.75X60, 34 THD) |
D29 |
2005-2007 |
03 |
| 005 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (F/AXL PROP SHF HT SHLD PROPELLER SHAFT) |
|
2005-2010 |
01 |
| 006 |
11519348 |
БОЛТ, HFH, M10X1.5X41.35, 29.2 THD, 22.3 OD, 10.9, GMW3359 (FRT WHL DRV INTER SHF HSG) |
|
2005-2010 |
03 |
| 007 |
25714853 |
ШЛАНГИ, FRT WHL DRV INTER SHF (INCLS 8-10) (INCLS BEARING RETAINER)
| D29 |
2005-2007 |
01 |
|
| 008 |
|
ШЛАНГИ, FRT WHL DRV INTER SHF (ЧАСТЬ OF 7) |
|
2007-2010 |
|
| 009 |
|
BEARING, FRT WHL DRV INTER SHF (ЧАСТЬ OF 7) |
|
2007-2010 |
|
| 010 |
88996676 |
RETAINER, FRT WHL DRV INTER SHF BRG (ЧАСТЬ OF 7) |
D29 |
2005-2007 |
01 |
