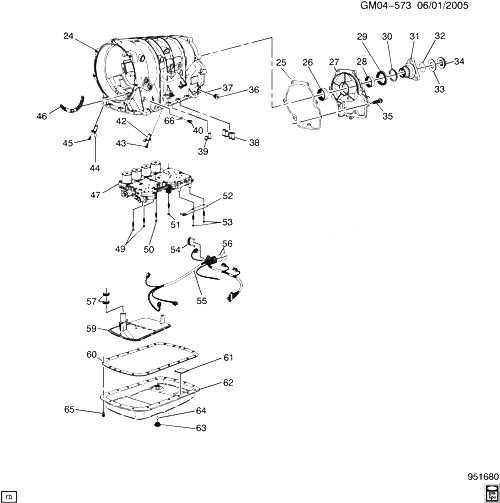

(GM04-573) - 2005-2007 DW29 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M82) (5L40E) CASE ДЕТАЛИ КОМПЛЕКТА CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
024 CASE, A/TRNS 2005-2007
025 96042861 GASKET, A/TRNS CASE EXTN (*KIT1) D (M82) 2006-2007 01
027 96042860 EXTENSION, A/TRNS CASE (INCLS 26, 28, 29) D (M82) 2006-2007 01
028 24237771 BEARING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 27) DW29 (LY7, M82) 2007-2007 01
029 96041851 SEAL, PROP SHF TRANS FLG FLUID (ЧАСТЬ OF 27) D29 (LY7, M82) 2005-2007 01
030 RING, PROP SHF TRANS FLG RET (ЧАСТЬ OF 34) 2005-2007
031 FLANGE, TRANS PROP SHF 2005-2007
031 96042984 FLANGE, ВЫХОДНОЙ SHF D (M82) 2006-2007 01
032 SEAL, PROP SHF TRANS FLG (O RING) (ЧАСТЬ OF 34) 2005-2007
033 WASHER, PROP SHF TRANS FLG THR (ЧАСТЬ OF 34) 2005-2007
034 96041805 NUT KIT, ВЫХОДНОЙ SHFT (INCLS 30, 32, 33) (M6X1.0X16) D (M82) 2005-2007 01
035 96025472 БОЛТ, A/TRNS CASE EXTN (M8X1.25X33) D (M82) 2005-2007 01
036 96042793 PLUG, A/TRNS FLUID LVL HOLE (ЧАСТЬ OF 59) D (M82) 2005-2007 01
037 SEAL, TRANS FLUID FIL PLUG (ЧАСТЬ OF 59) 2005-2007
038 96041778 SLEEVE, CTR SUPT FLUID PASG (INCLS 39) D (M82) 2005-2007 01
039 SLEEVE, O/D CLU FLUID PASG (ЧАСТЬ OF 38) 2005-2007
040 96042539 PLUG, A/TRNS FLUID PRESS TEST HOLE D (M82) 2005-2007 01
042 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD (4.329) DW29 (LY7, M82, MX5) 2007-2007 01
042 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD DW29 (LY7, M82, MX5) 2007-2007 01
043 96025052 БОЛТ, A/TRNS INPUT ВЫХОДНОЙ SPD SEN (M 6 X 1.0) DW29 (M82, MX5) 2006-2007 02
044 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD (4.329) DW29 (LY7, M82, MX5) 2007-2007 01
044 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD DW29 (LY7, M82, MX5) 2007-2007 01
045 96025052 БОЛТ, A/TRNS INPUT ВЫХОДНОЙ SPD SEN (M 6 X 1.0) DW29 (M82, MX5) 2006-2007 02
046 GASKET, A/TRNS ГИДРОНАСОС CVR (*KIT1) 2005-2007
047 96042963 VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 CONTROL VALVE BODY ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS SPACER PLATE GASKET) D (LY7, M82) 2006-2007 01
049 96021290 БОЛТ, VLV BODY (M8X1X50) D (M82) 2005-2007 08
050 96021012 БОЛТ, VLV BODY (M6X1X67.4) D (M82) 2005-2007 02
051 96021012 БОЛТ, VLV BODY (M6X1X67.4) D (M82) 2005-2007 02
052 96042712 DETENT, MAN SHFT D (M82) 2005-2007 01
053 БОЛТ, MAN SHFT DTNT 2005-2007
054 96017928 CLIP, WRG HARN D29 2005-2007 01
055 96042847 HARNESS, A/TRNS WRG D 2005-2007 01
055 96042847 HARNESS, A/TRNS WRG (2.480) D 2005-2007 01
056 96041849 SEAL, A/TRNS WRG CONN (O RING) DW29 2005-2007 01
057 SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 59) 2005-2007
059 96042545 FILTER KIT, A/TRNS FLUID (INCLS 36, 37, 57, 63, 64) (INCLS SEALS) (ACDelco #96042545) (CODE 3GBG) D (M82) 2005-2007 01
060 96042862 GASKET, A/TRNS FLUID PAN (*KIT1) D (M82, MX5) 2007-2007 01
061 08654701 MAGNET, A/TRNS FLUID PAN (ACDelco #8654701) D (M82) 2005-2007 01
062 96043177 PAN KIT, A/TRNS FLUID (INCLS 63, 64) D (M82) 2005-2007 01
063 90502556 PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 59, 62) (INCLS 64) (M14) (1.453) D (M82) 2005-2007 01
064 90528145 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (ЧАСТЬ OF 59, 62, 63) (18 X 2) (1.456) D (MX5, M82) 2007-2007 01
065 96020254 БОЛТ, A/TRNS FLUID PAN (M6X1.0X16) D (M82) 2005-2007 20
066 SEAL, A/TRNS FLUID PRESS TEST HOLE PLUG 2005-2007
K01 96042865 ТРАНСМИССИЯ KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 25, 46, 60) DW29 (LY7, M82) 2007-2007 01
K01 96042945 ТРАНСМИССИЯ KIT, AUTO (SERV OVERHAUL W/GSKT, SEAL, RET) (INCLS 25, 46, 60) D (LP1, LY7, M82) 2005-2007 01
