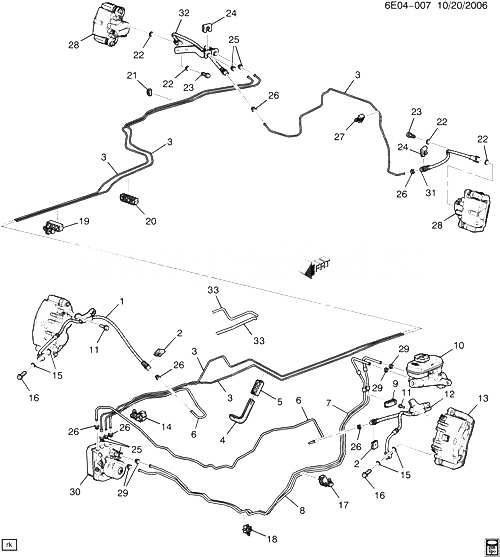

(6E04-007) - 2005-2007 D29 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15875850 HOSE, FRT BRK (INCLS 15, 16) D29 2007-2007 01
002 11569742 RETAINER, FRT BRK HOSE (1 SIDED RETAINER) D 2005-2010 02
003 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS) (8.964) 2005-2007 AR
004 25761218 BRACKET, FUEL PIPE D 2005-2010 01
005 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) D29 2005-2007 01
005 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE D29 2005-2007 01
006 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS) (8.964) 2005-2010 AR
007 15250845 PIPE, BRK PRESS MOD VLV FRT (INCLS 29) DX 2006-2009 01
007 15252165 PIPE, BRK PRESS MOD VLV FRT (INCLS 29) DW29 2005-2007 01
008 15252164 PIPE, BRK PRESS MOD VLV RR (INCLS 29) (FRT) DW29 2005-2007 01
008 15826944 PIPE, BRK PRESS MOD VLV RR (INCLS 29) DX 2006-2009 01
009 03541444 SPACER, FRT BRK PIPE D29 2006-2007 01
010 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДРР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2010
011 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) 2005-2010 04
012 15933094 HOSE, FRT BRK (INCLS 15, 16) DW, DX29 2006-2007 01
013 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2010
014 25743891 RETAINER, FRT BRK PIPE DW29 2007-2007 02
014 25743891 RETAINER, FRT BRK PIPE DX 2007-2009 02
015 GASKET, FRT BRK HOSE FTG (ЧАСТЬ OF 1, 12) 2005-2007
016 FITTING, FRT BRK PIPE (ЧАСТЬ OF 1, 12) 2005-2007
017 25743891 RETAINER, BRK PIPE DW29 (LH2) 2006-2007 02
017 25743891 RETAINER, BRK PIPE DX29 (LC3) 2006-2007 02
017 25743891 RETAINER, BRK PIPE DW29 (LY7) 2007-2007 02
018 25737279 RETAINER, FRT BRK PIPE (THREE WAY RETAINER SINGLE CENTRAL FIR-TREE ATTACHMENT) D29 2005-2009 02
019 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) DX29 (LC3) 2006-2008 02
019 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) DW29 (LY7) 2007-2008 02
020 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) DX29 (LC3) 2007-2007 01
020 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) DW29 (LH2, JE5, JL9) 2007-2008 01
020 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) DW29 (LY7) 2007-2008 01
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) DW29 (LH2) 2006-2008 02
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) DW29 (LY7) 2007-2007 02
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) DX29 (LC3) 2007-2008 02
022 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 31, 32) 2005-2007
023 FITTING, RR BRK FRT PIPE (ЧАСТЬ OF 31, 32) 2005-2007
024 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) D 2005-2010 02
025 15724650 ГАЙКА, INVERTED FLARED TUBE, 9/16-18, 1/4 TUBE, ZD (BRK PIPE) (4.686) 2005-2010 AR
026 15724650 ГАЙКА, INVERTED FLARED TUBE, 9/16-18, 1/4 TUBE, ZD (BRK PIPE) (4.686) 2005-2010 AR
027 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) D 2005-2010 04
028 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2010
029 FITTING, BRK PRESS MOD VLV FRT BRK PIPE (ЧАСТЬ OF 7, 8) 2005-2007
030 VALVE, BRK PRESS MOD (СМ. ГРУППУ 04.000 КЛАПАН РЕГУЛИРОВКИ ДАВЛЕНИЯ В ТОРМОЗНОЙ СИСТЕМЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2010
031 15875844 HOSE, RR BRK (INCLS 22, 23) DW29 (J56) 2006-2007 01
031 15875844 HOSE, RR BRK (INCLS 22, 23) DX29 2006-2007 01
031 15933091 HOSE, RR BRK (1 HOSE) (INCLS 22, 23) (ACDelco #15933091) DW29 (JE5, JL9) 2005-2007 01
032 15875843 HOSE, RR BRK (INCLS 22, 23) DW29 (J56) 2006-2007 01
032 15875843 HOSE, RR BRK (INCLS 22, 23) DX 2006-2007 01
032 15933092 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933092) DW29 (JE5) 2005-2007 01
032 15933092 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933092) DW29 (JL9) 2005-2007 01
033 12477665 PROTECTOR, FRT BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) D 2005-2010 AR
033 88964150 PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) D 2005-2010 AR
