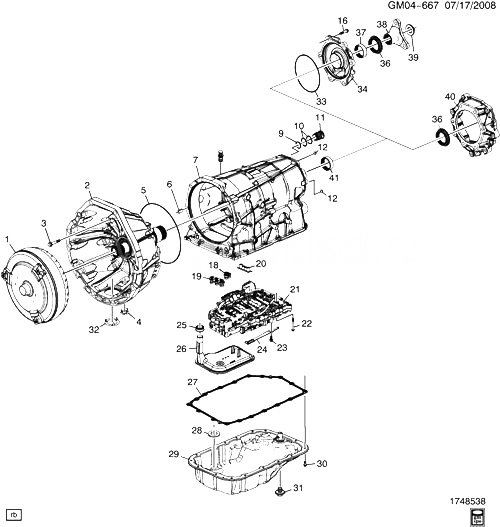

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24240018 |
CONVERTER, TORQ
| D (LH2, MYB, MX0, MX7) |
2007-2007 |
01 |
|
| 002 |
|
ШЛАНГИ, T/CV (W/ ГИДРОНАСОС) (СМ. ГРУППУ 04.000 TORQUE CONVERTOR ШЛАНГИ AND ГИДРОНАСОС ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2008 |
|
| 003 |
11515762 |
БОЛТ, T/CV HSG (8.900) |
DW (MYB) |
2007-2008 |
08 |
| 004 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
DW (LH2, MYB) |
2007-2007 |
01 |
| 005 |
24225543 |
SEAL, A/TRNS ГИДРОНАСОС (ACDelco #24225543)
| D (MYB) |
2007-2007 |
01 |
|
| 006 |
|
PIN, T/CV HSG LOC (ЧАСТЬ OF 7) |
|
2007-2008 |
|
| 007 |
24242045 |
CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242045) |
D (MYB, MX7) |
2007-2008 |
01 |
| 007 |
24242046 |
CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242046) |
D (MYB, MX0) |
2007-2007 |
01 |
| 008 |
24226020 |
PLUG, TRANS FLUID FIL TUBE |
DW29 (MYB) |
2007-2008 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT1, KIT2) |
|
2007-2008 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT1, KIT2) |
|
2007-2008 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG
| D (MYB) |
2007-2008 |
01 |
|
| 012 |
|
PLUG, A/TRNS CASE (ЧАСТЬ OF 7) |
|
2007-2008 |
|
| 016 |
11515762 |
БОЛТ, T/CV HSG (8.900) |
DW (MYB) |
2007-2008 |
08 |
| 018 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT2) |
|
2007-2008 |
|
| 019 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT2) |
|
2007-2008 |
|
| 020 |
24225557 |
SEAL, CTR SUPT FLUID PASG (*KIT2) |
D (MYB) |
2007-2007 |
01 |
| 021 |
|
VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ БЛОК УПРАВЛЕНИЯ КЛАПАНАМИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2008 |
|
| 022 |
24224820 |
БОЛТ, VLV BODY (USED ON TRANS BUILT ON 12-31-06 PRIOR) (FOR 2ND DES SEE 24237181) |
DW (LH2, MYB) (1ST DES) |
2007-2007 |
06 |
| 022 |
24237181 |
БОЛТ, VLV BODY (M5X0.8X73.0) (USED ON TRANS BUILT ON 01-01-07 FORWARD) (FOR 1ST DES SEE 24224820) |
DW (LH2, MYB) (2ND DES) |
2007-2007 |
06 |
| 023 |
24231074 |
БОЛТ, MAN SHFT DTNT (M10X1X14.5) |
D (MYB) |
2007-2008 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
D (MYB) |
2007-2007 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 26) |
|
2007-2008 |
|
| 026 |
24236933 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933)
| DW29 (MYB) |
2007-2007 |
01 |
|
| 027 |
24225800 |
GASKET, A/TRNS FLUID PAN (ACDelco #24225800)
| D (MYB) |
2007-2007 |
01 |
|
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617)
| D (MYB) |
2007-2008 |
01 |
|
| 029 |
24237064 |
PAN, A/TRNS FLUID (INCLS 31) (TRANS BUILT ON 3-2-07 PRIOR) (FOR 2ND DES SEE 24242410) |
D (MYB) (1ST DES) |
2007-2007 |
01 |
| 029 |
24242410 |
PAN, A/TRNS FLUID (INCLS 31) (ACDelco #24242410) (MUST SERVICE T/W 24236933 FILTER FOR TRANS BUILT ON 3-2-07 PRIOR) |
D (MYB) |
2007-2007 |
01 |
| 030 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (A/TRNS FLUID PAN)
|
2007-2008 |
17 |
|
| 031 |
24234212 |
PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 29) (ACDelco #24234212)
| D (MYB) |
2007-2007 |
01 |
|
| 032 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| DW (LH2, MYB) |
2007-2007 |
01 |
|
| 033 |
24225783 |
SEAL, A/TRNS CASE EXTN (ACDelco #24225783)
| D (MYB, MX0) |
2007-2008 |
01 |
|
| 034 |
24237879 |
EXTENSION, A/TRNS CASE (ACDelco #24237879) |
D29 (MYB, MX0) |
2007-2008 |
01 |
| 036 |
24228876 |
SEAL, ВЫХОДНОЙ SHF (5.556)
| DW (MYB) |
2007-2008 |
01 |
|
| 037 |
24214158 |
BEARING, ВЫХОДНОЙ SHF (DRAWN CUP) (4.131) (ACDelco #24214158) |
DW29 (LH2, MYB, MX0) |
2007-2007 |
01 |
| 038 |
24230287 |
FLANGE, PROP SHF TRANS |
D (MYB, MX0) |
2007-2008 |
01 |
| 039 |
24231524 |
ГАЙКА, FRT PROP SHF FLG (M22X1.5) (FLANGE HEX) |
D (MYB, MX0) |
2007-2008 |
01 |
| 040 |
24229687 |
EXTENSION, A/TRNS CASE (MCHG) |
D29 (MYB, MX7) |
2007-2007 |
01 |
| K01 |
24236928 |
SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) |
D (MYB) |
2007-2007 |
01 |
| K02 |
24238913 |
SEAL KIT, A/TRNS SERV (CONTROL VLV SOL ASM) (ACDelco #24238913)
| D (MYB) |
2007-2008 |
01 |
|
