| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

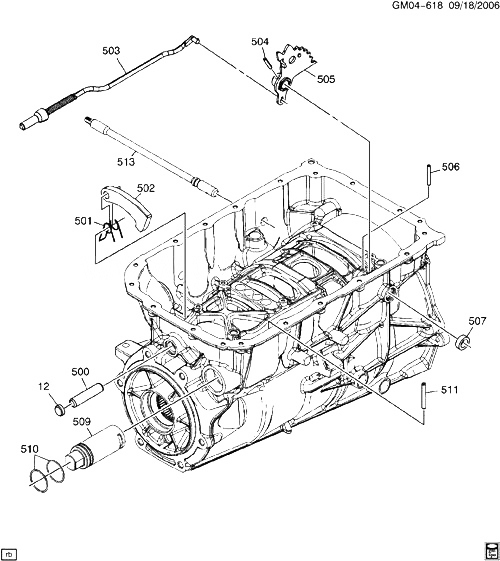

| 012 |
|
PLUG, PARK PAWL SHF HOLE (ЧАСТЬ OF CASE, A/TRANS - 04.103) |
|
2007-2007 |
|
| 500 |
|
SHAFT, PARK PAWL (ЧАСТЬ OF CASE, A/TRNS - 04.103) |
|
2007-2007 |
|
| 501 |
|
ПРУЖИНА, PARK PAWL (ЧАСТЬ OF CASE, A/TRNS - 04.103) |
|
2007-2007 |
|
| 502 |
|
PAWL, PARK (ЧАСТЬ OF CASE, A/TRNS - 04.103) |
|
2007-2007 |
|
| 503 |
24242086 |
ACTUATOR, PARK PAWL (ACDelco #24242086) |
D (MYB) |
2007-2007 |
01 |
| 504 |
24227077 |
PIN, MAN SHFT DTNT LVR HUB (ЧАСТЬ OF 505) |
D (MYB) |
2007-2009 |
01 |
| 505 |
24234562 |
LEVER, MAN SHFT DTNT (INCLS 504) (ACDelco #24234562) |
D (MYB) |
2007-2007 |
01 |
| 506 |
24225792 |
PIN, MAN SHFT SHF (ACDelco #24225792) |
D (MYB) |
2007-2009 |
01 |
| 507 |
24235861 |
SEAL, MAN SHFT SHF (*KIT1) (ACDelco #24235861)
| D (MYB) |
2007-2009 |
01 |
|
| 509 |
24224348 |
GUIDE, PARK PAWL ACTR (INCLS 510) |
D (MYB) |
2007-2007 |
01 |
| 510 |
24224350 |
SEAL, PARK PAWL ACTR GDE (O RING) (ЧАСТЬ OF 509) (*KIT1) (ACDelco #24224350) |
D (MYB) |
2007-2007 |
02 |
| 511 |
24226102 |
PIN, PARK PAWL ACTR GDE |
D (MYB) |
2007-2007 |
01 |
| 513 |
24228969 |
SHAFT, MAN SHFT (ACDelco #24228969) |
D (MYB, MX0) |
2007-2009 |
01 |
| K01 |
24243891 |
SEAL KIT, A/TRNS SERV (INCLS 507, 510) (FULL TRANS) (ACDelco #24243891) |
D (MYB) |
2007-2007 |
01 |
