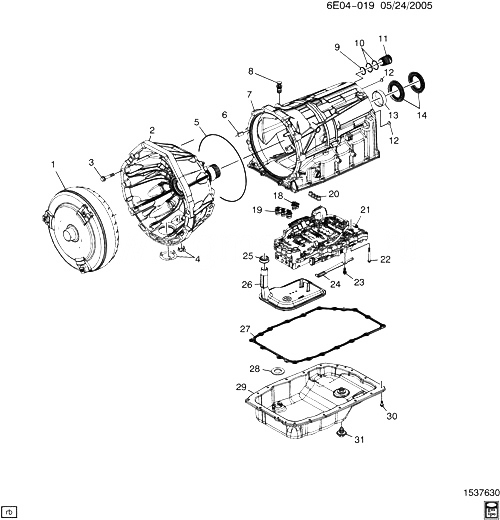

(6E04-019) - 2006-2009 DX29 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYC) (6L80) CASE ДЕТАЛИ КОМПЛЕКТА CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24236660 CONVERTER, TORQ D (LC3, MYC) 2006-2009 01
002 ШЛАНГИ, T/CV (W/ ГИДРОНАСОС) (СМ. ГРУППУ 04.000 TORQUE CONVERTOR ШЛАНГИ AND ГИДРОНАСОС ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2006-2009
003 24224574 БОЛТ, T/CV HSG D (MYC) 2006-2009 09
004 24205899 PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) D29 (MYC) 2006-2007 01
005 24224577 SEAL, A/TRNS ГИДРОНАСОС DX (LC3, MYC) 2006-2007 01
006 90351710 PIN, T/CV HSG LOC (0.293) DX (MYC) 2006-2009 01
007 24237786 CASE, A/TRNS (ACDelco #24237786) DX (LC3, MYC) 2006-2009 01
008 24226020 PLUG, TRANS FLUID FIL TUBE DX29 (MYC) 2006-2007 01
009 SEAL, A/TRNS WRG CONN (*KIT1, KIT2) 2006-2009
011 24239878 SLEEVE, A/TRNS ELEC CONN PASG D (MYC) 2006-2009 01
011 24239878 SLEEVE, A/TRNS ELEC CONN PASG DX (MYC) 2006-2009 01
012 PLUG, A/TRNS CASE 2006-2009
013 BUSHING, ВЫХОДНОЙ SHF 2006-2009
014 24238076 SEAL, ВЫХОДНОЙ SHF DX (MYC) 2006-2009 01
016 БОЛТ, A/TRNS CASE EXTN 2006-2009
018 SEAL, A/TRNS ГИДРОНАСОС (*KIT1) 2006-2009
019 SEAL, A/TRNS ГИДРОНАСОС (*KIT1) 2006-2009
020 SEAL, CTR SUPT FLUID PASG (*KIT1) 2006-2009
021 VALVE, CONT (W/BODY VLV) 2006-2009
022 24224820 БОЛТ, VLV BODY (USED ON TRANS BUILT ON 12-31-06 PRIOR) (FOR 2ND DES SEE 24237181) D (MYC) 2007-2007 06
022 24237181 БОЛТ, VLV BODY (USED ON TRANS BUILT ON 01-01-07 FORWARD) (FOR 1ST DES SEE 24224820) (M5X0.8X73.0) D (MYC) 2007-2007 06
023 24231074 БОЛТ, MAN SHFT DTNT (M10X1X14.5) D (MYC) 2006-2009 01
024 24222646 DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) DX (MYC) 2006-2009 01
025 SEAL, A/TRNS FLUID FLTR 2006-2009
026 24236931 FILTER KIT, A/TRNS FLUID (ACDelco #24236931) D (MYC) 2007-2007 01
027 24224781 GASKET, A/TRNS FLUID PAN (ACDelco #24224781) DX29 (MYC) 2006-2009 01
028 29535617 MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617) DX (MYC) 2006-2009 01
029 24235511 PAN, A/TRNS FLUID (INCLS 31) D (MYC) 2006-2009 01
030 11569816 БОЛТ, HFH, M6X1X19, 11.5 THD, 14.2 OD, 8.8 STL, GMW3359-BLACK, MAT POINT (A/TRNS FLUID PAN) 2006-2009 18
031 24234212 PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 29) (ACDelco #24234212) D (MYC) 2006-2009 01
K01 24236927 SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (CNTRL SOL VLV ASM) (ACDelco #24236927) D (MYC) 2006-2009 01
K02 24236928 SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) D (MYC) 2006-2009 01
