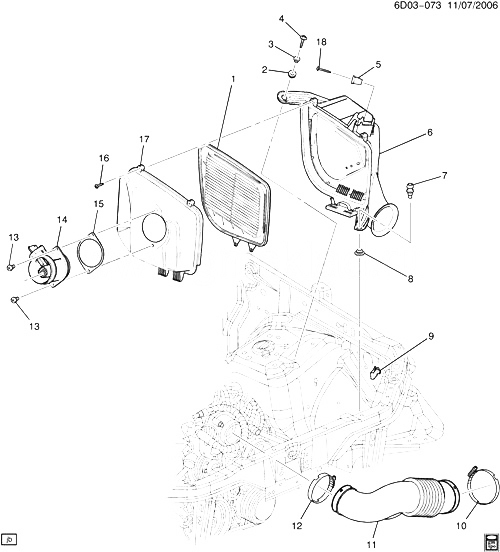

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25798271 |
ELEMENT, КОНДИЦИОНЕРL (ACDelco #A2944C)
| D29 (LH2, LY7) |
2007-2007 |
01 |
|
| 002 |
15147460 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 6) (MOUNT TO SHOCK TOWER) |
D29 (LY7) |
2007-2007 |
01 |
| 003 |
|
SPACER, INT AIR DUCT INSL (ЧАСТЬ OF 6) |
|
2007-2007 |
|
| 004 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (КОНДИЦИОНЕРL) |
|
2007-2010 |
02 |
| 005 |
15147458 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 6) (BEC MOUNT TO TIE BAR) |
D29 (LH2, LY7) |
2007-2007 |
01 |
| 006 |
15147452 |
ШЛАНГИ, КОНДИЦИОНЕРL (INCLS 2, 3, 5, 8, 16)
| D29 (LY7) |
2007-2007 |
01 |
|
| 007 |
11561910 |
БОЛТ, КОНДИЦИОНЕРL (M6X1.0X24) (T30 TORQ) (SHLDR W/FL WA) |
D |
2007-2009 |
01 |
| 008 |
19177871 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 6) (MOUNT TO MID RAIL) |
D29 (LY7) |
2007-2007 |
01 |
| 009 |
11515478 |
ГАЙКА, U-SHAPED MULTI THREAD SPRG (M6X1, 30 X 15.0) (КОНДИЦИОНЕРL) |
|
2007-2010 |
01 |
| 010 |
25733253 |
CЛАМПА, RR INT AIR DUCT (ЧАСТЬ OF 11) (FLEX END) |
D29 (LY7) |
2007-2009 |
01 |
| 011 |
|
DUCT, RR INT AIR (INCLS 10, 12) |
|
2007-2007 |
|
| 011 |
25733251 |
DUCT, RR INT AIR (INCLS 10, 12) |
D (LY7) |
2007-2007 |
01 |
| 012 |
25733254 |
CЛАМПА, RR INT AIR DUCT (ЧАСТЬ OF 11) (ELBOW END) |
D29 (LY7) |
2007-2009 |
01 |
| 013 |
|
БОЛТ, MASS AIRFLOW SEN |
|
2007-2010 |
|
| 013 |
88967332 |
БОЛТ, MASS AIRFLOW SEN (30.7MM) (3.403) |
D (LP1, LY7) |
2007-2007 |
02 |
| 014 |
12566846 |
SENSOR, MASS AIRFLOW (ACDelco #213-1593)
| D29 (LY7) |
2007-2007 |
01 |
|
| 015 |
15147456 |
GASKET, MASS AIRFLOW SEN |
D29 (LY7) |
2007-2007 |
01 |
| 016 |
|
БОЛТ, MASS AIRFLOW SEN (ЧАСТЬ OF 6) |
|
2007-2007 |
|
| 017 |
15147455 |
COVER, КОНДИЦИОНЕРL HSG
| DW29 (LY7) |
2007-2007 |
01 |
|
| 018 |
11562510 |
БОЛТ, HEX W/FLAT WASHER, M6X1X45, 40 THD, 17 OD, 9.8, GMW3359, W/ADH 6175M (КОНДИЦИОНЕРL) |
|
2007-2010 |
03 |
