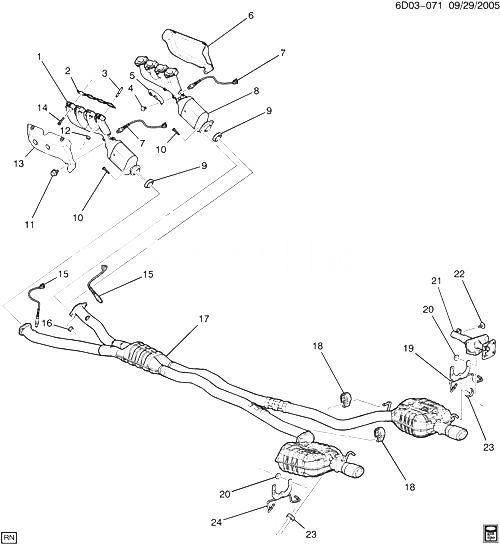

(6D03-071) - 2006-2009 DX29 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ (LC3/4.4D) CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12606643 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 9, 10) (3.685) D (LC3) 2006-2009 01
001 12606643 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 9, 10) D (LC3) 2006-2009 01
002 12567655 GASKET, EXH MANIF D (LC3) 2006-2009 02
003 11562490 STUD, STRAIGHT, M8X1.25X20, M8X1.25X40, 69 TL, 9.8, GMW3179, EXT HEX SOCKET (EXH MANIF) 2006-2009 04
004 10229247 RIVET, EXH MANIF H/SHLD (ЧАСТЬ OF 8) (3.601) D (LC3) 2006-2009 02
005 12568289 SHIELD, EXH MANIF LWR HT (ЧАСТЬ OF 8) D (LC3) 2006-2009 01
006 12576372 SHIELD, EXH MANIF HT D (LC3) 2006-2009 01
007 12588036 SENSOR, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3532) D (LC3, MYC, JJA) 2006-2007 02
008 12606642 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 4, 5, 9, 10) (3.685) D (LC3) 2006-2009 01
008 12606642 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 4, 5, 9, 10) D (LC3) 2006-2009 01
009 12555555 SEAL, EXH MANIF PIPE (ЧАСТЬ OF 1, 8) DX (LC3, JJA) 2006-2007 02
010 12562640 STUD, EXH PIPE (ЧАСТЬ OF 1, 8) (M10X1.5X36.5, 22 THD, M10X1.5X16, 14 THD, 20.8 OD, 5.8, 6164M, ) DX29 (LC3, JJA, JJB) 2006-2008 02
011 24505098 БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (EXH MANIF H/SHLD) 2006-2009 06
012 11516076 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MANIF) 2006-2009 04
013 12607338 SHIELD, EXH MANIF HT D29 (LC3) 2006-2007 01
014 11519171 БОЛТ, EXH MANIF CLA (M8X1.25X50) (3.275) D (LC3) 2006-2009 12
015 12609159 SENSOR, HTD OXY (POSN 2) (POST CONVERTER) (ACDelco #213-4156) DX (LC3) 2007-2009 02
016 11516076 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MUFF) 2006-2009 04
017 15899099 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) DX29 (LC3) 2006-2008 01
017 15899099 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) DX29 (LC3) 2006-2008 01
017 15899099 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) DX29 (LC3) 2006-2008 01
018 25711603 INSULATOR, EXH MUFF HNGR BRKT D 2006-2007 AR
019 15240254 BRACKET, EXH TAIL PIPE HNGR (INCLS 23) D29 2006-2009 01
020 11517397 ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (RR BPR ENGY ABS) 2006-2009 06
021 АМОРТИЗАТОР, RR BPR ENGY (СМ. ГРУППУ 07.000 BUMPERS/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (METAL E.A. UNIT) 2006-2009
022 11516611 БОЛТ, HEX HD W/CONICAL WA, M8X1, 25X30, 17 THD, 32 OD, 9.8 MAT, 7114M FIN MACH, 8MM P-POINT (RR BPR ENGY ABS) 2006-2009 02
023 15284207 INSULATOR, EXH TAIL PIPE HNGR (ЧАСТЬ OF 19, 24) D29 2006-2009 04
024 25902027 BRACKET, EXH TAIL PIPE HNGR (INCLS 23) DW, DX29 2007-2009 01
