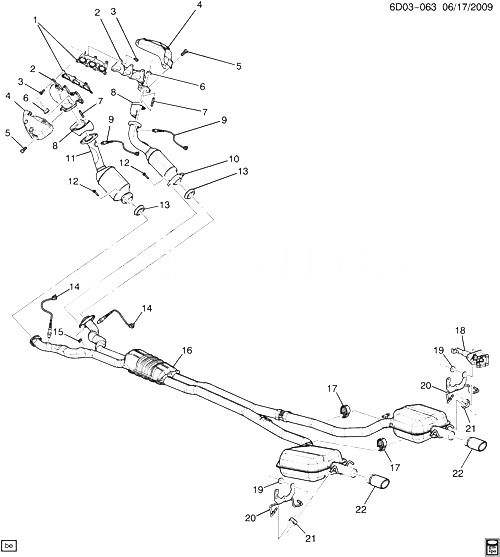

(6D03-063) - 2005-2007 DW29 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ (LY7/3.6-7) CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12576262 GASKET, EXH MANIF D (LY7) 2005-2007 01
001 12576263 GASKET, EXH MANIF D (LY7) 2005-2007 01
002 12571101 MANIFOLD, EXH D (LY7) 2005-2007 01
002 12571102 MANIFOLD, EXH D (LY7) 2005-2007 01
003 11518860 БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF H/SHLD) 2005-2007 14
004 12580706 SHIELD, EXH MANIF HT D (LY7) 2005-2007 01
004 12617267 SHIELD, EXH MANIF HT D (LY7) 2005-2007 01
005 11517516 БОЛТ, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (EXH MANIF H/SHLD) 2005-2007 06
006 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (CTLTC CONV) 2005-2007 04
007 11518424 STUD, STRAIGHT, M10X1.5X14.5, M10X1.5X31, 56 TL, 9.8, PL (EXH PIPE) 2005-2007 04
008 25768055 SEAL, CTLTC CONV (ЧАСТЬ OF 10, 11) (SEAL WITH COVER ATTACHED) D (LP1, LY7, JJA) 2005-2007 02
009 12596327 SENSOR, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3240) (W/OVAL SHAPED CONNECTOR) D29 (LY7) 2006-2007 02
010 12622978 CONVERTER, 3WAY CTLTC (INCLS 8, 12, 13) D29 (LP1, LY7) 2005-2007 01
011 12622977 CONVERTER, 3WAY CTLTC (INCLS 8, 12, 13) D29 (LP1, LY7, JJA) 2005-2007 01
012 11609596 STUD, CTLTC CONV (ЧАСТЬ OF 10, 11) D (LP1, LY7, LH2) 2005-2007 04
013 25709703 SEAL, CTLTC CONV (ЧАСТЬ OF 10, 11) (ROUND METAL SEAL) D 2005-2007 01
014 12597449 SENSOR, HTD OXY (POSN 2) (ДВИГАТЕЛЬ OUT) (ACDelco #213-3851) DW (LY7) 2007-2007 02
015 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (EXH MUFF) 2005-2007 04
016 15290904 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 0904) DW29 (LY7) (EXC AE5) 2007-2007 01
016 15290904 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 0904) (3.701) DW29 (LY7) (EXC AE5) 2007-2007 01
016 15290904 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 0904) (3.701) DW29 (LY7) (EXC AE5) 2007-2007 01
016 15779882 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 1489, 9882) DW (LY7, AE5) (EXPORT) 2007-2007 01
016 15779882 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 1489, 9882) (3.701) DW (LY7, AE5) (EXPORT) 2007-2007 01
016 15779882 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 17, 22) (CODE 1489, 9882) (3.701) DW (LY7, AE5) (EXPORT) 2007-2007 01
017 25711603 INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 16) D 2005-2007 AR
018 АМОРТИЗАТОР, RR BPR ENGY (СМ. ГРУППУ 07.000 БАМПЕР ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (METAL E.A. UNIT) 2005-2007
019 11518444 ГАЙКА, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (RR BPR ENGY ABS) 2005-2007 06
020 15240254 BRACKET, EXH TAIL PIPE HNGR (INCLS 21) D29 2005-2007 01
020 25902027 BRACKET, EXH TAIL PIPE HNGR (INCLS 21) DW, DX29 2007-2007 01
021 15284207 INSULATOR, EXH TAIL PIPE HNGR (ЧАСТЬ OF 20) D29 2006-2007 04
022 15251183 PIPE, EXH TAIL (ЧАСТЬ OF 16) DW29 (LY7) 2005-2007 02
