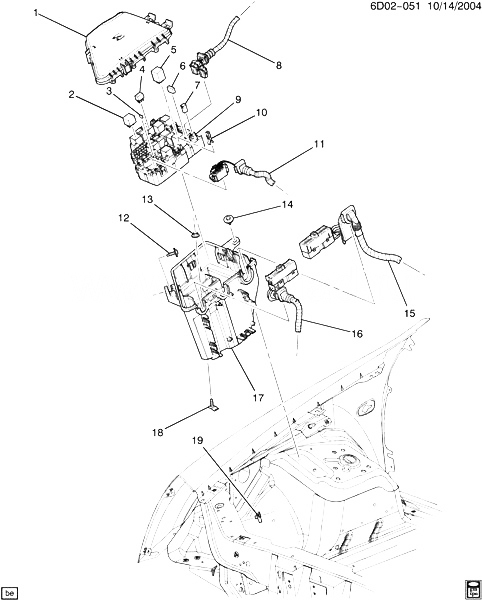

(6D02-051) - 2005-2007 D29 РЕЛЕ/ДВИГАТЕЛЬНЫЙ ОТСЕК CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15801186 COVER, MULTIUSE RLY FUSE D29 2007-2007 01
002 12193606 RELAY, HDLP LOW BEAM (ЧАСТЬ OF 9) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) (ACDelco #12193606) D29 2005-2007 01
003 FUSE, F/CMPT FUSE BLK (ЧАСТЬ OF 9) 2005-2007
004 88953222 RELAY, FOG LP (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (ACDelco #D1755A) D29 2005-2007 01
004 88953222 RELAY, IGN START SW (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) D29 2005-2007 01
004 88953222 RELAY, HDLP HIGH BEAM (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) D 2005-2007 01
004 88953222 RELAY, СИГНАЛ (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) D29 2005-2007 01
004 88953222 RELAY, PCM (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) D29 2005-2007 01
005 21997408 RELAY, FAN CONT (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (ACDelco #15-81106) D 2005-2007 03
005 21997408 RELAY, STRTR (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) D 2005-2007 01
005 21997408 RELAY, ACSRY (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) DW29 2005-2007 02
005 21997408 RELAY, STRTR (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) D 2005-2007 01
005 21997408 RELAY, BLO MOT (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) D 2005-2007 01
005 21997408 RELAY, BLO MOT (ЧАСТЬ OF 9) (5-TERMINAL) (SPDT, 280 MINI, HI/LOW, BLACK) (1.055) (ACDelco #15-81106) D 2005-2007 01
005 88953222 RELAY, FAN CONT (ЧАСТЬ OF 9) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) D29 2006-2007 01
006 12092075 FUSE, MINI (30A) (GREEN) (ЧАСТЬ OF 9) (ACDelco #12092075) 2005-2007 01
006 12092080 FUSE, 7.5A, MINI, BROWN (ЧАСТЬ OF 9) 2005-2007 02
006 88909753 FUSE, MINI, 10 AMP, RED (ЧАСТЬ OF 9) 2005-2007 18
006 88909754 FUSE, 15A, MINI, BLUE (ЧАСТЬ OF 9) (ACDelco #ATM15-25) 2005-2007 11
006 88909755 FUSE, 20A, MINI, YELLOW (ЧАСТЬ OF 9) (ACDelco #ATM20-25) 2005-2007 06
007 15319477 FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (ЧАСТЬ OF 9) 2005-2007 03
007 15319478 FUSE, 40AMP, GREEN, J-CASE, FEMALE (ЧАСТЬ OF 9) (ACDelco #15319478) 2005-2007 01
007 15319479 FUSE, 50 AMP, RED, J-CASE, FEMALE, REGULAR BLOW (ЧАСТЬ OF 9) 2005-2007 01
007 15319480 FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (ЧАСТЬ OF 9) 2005-2007 04
008 HARNESS, BODY WRG (СМ. ГРУППУ 13.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
009 15867860 BLOCK, ENG WRG HARN JUNC (INCLS 2-7, 10) D29 2005-2007 01
009 15867861 BLOCK, ENG WRG HARN JUNC (INCLS 2-7, 10) DW29 (TT6, TT7, TT8) (EXC TQ5) 2006-2007 01
009 15867861 BLOCK, ENG WRG HARN JUNC (INCLS 2-7, 10) DX29 (TT7, TT8) (EXC TQ5) 2006-2007 01
010 19116060 PULLER, FUSE (ЧАСТЬ OF 9) D 2005-2007 01
011 HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ДВИГАТЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLUDES BEC CONNECTOR) 2005-2007
012 11518094 БОЛТ-HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (MULTIUSE RLY FUSE BRKT) 2005-2007 01
013 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (MULTIUSE RLY FUSE BRKT) 2005-2007 01
014 11518497 SCREW, ASM HEX HD W/FLAT WASHER, M6X1.0X25, 14 THD, 9.8 (MULTIUSE RLY FUSE BRKT) 2005-2007 01
015 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
016 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
017 25738787 BRACKET, MULTIUSE RLY FUSE D29 2005-2007 01
018 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (MULTIUSE RLY FUSE BRKT) 2005-2007 01
019 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (MULTIUSE RLY FUSE BRKT) 2005-2007 01
