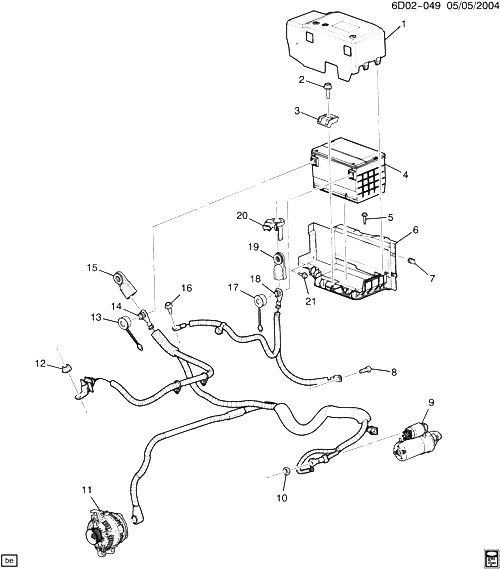

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15292925 |
SHIELD, BAT HT
| D |
2005-2007 |
01 |
|
| 002 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2005-2007 |
01 |
|
| 003 |
25558374 |
RETAINER, BAT HOLDN (CENTER SLOT)
| D29 |
2005-2007 |
01 |
|
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
DW29 (LH2) |
2006-2007 |
01 |
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
DX29 (LC3) |
2006-2007 |
01 |
| 005 |
11517486 |
БОЛТ-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (BAT TRAY) |
|
2005-2007 |
04 |
| 006 |
15812692 |
TRAY, BAT (INCLS 7) |
DW, DX29 |
2006-2007 |
01 |
| 007 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 6) |
|
2005-2007 |
02 |
| 008 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT CBL TERM) (8.900) (ACDelco #19115561)
|
2005-2007 |
01 |
|
| 009 |
89017760 |
STARTER, (REMAN) (ACDelco #323-1633) (DELCO SERIES PG260H)
| D (LC3) |
2006-2007 |
01 |
|
| 009 |
89017760 |
STARTER, (REMAN) (ACDelco #323-1633) (DELCO SERIES PG260H)
| D (LH2) |
2006-2007 |
01 |
|
| 010 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (M8X1.25X6, BRASS) (2.343)
| D |
2005-2007 |
01 |
|
| 011 |
25709327 |
GENERATOR, (ACDelco #25709327)
| D29 (LC3) |
2006-2007 |
01 |
|
| 011 |
25709327 |
GENERATOR, (ACDelco #25709327)
| D29 (LH2) |
2006-2007 |
01 |
|
| 012 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (BAT POS CBL) |
|
2005-2007 |
01 |
| 013 |
12160210 |
COVER, BAT POS CBL TERM (ЧАСТЬ OF 14) (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) |
D29 |
2005-2007 |
01 |
| 014 |
15869243 |
CABLE, BAT POS (INCLS 13, 15) |
DW (LH2) |
2007-2007 |
01 |
| 014 |
15885749 |
CABLE, BAT POS (INCLS 13, 15) |
DX29 (LC3) |
2007-2007 |
01 |
| 015 |
12146809 |
COVER, GEN WIRE TERM (ЧАСТЬ OF 14) (BLACK) (TERMINAL BOOT COVER) (2.343) |
D |
2005-2007 |
01 |
| 016 |
11518202 |
БОЛТ, HFH, M10X1.5X30, 22.0 00, 6202M, 6280M, TAP, TR, P-PT (BAT NEG CBL GND) |
|
2005-2007 |
01 |
| 017 |
12010049 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) (BLACK) (SNAPS ON TO АККУМУЛЯТОР БОЛТ) |
D29 (LH2, LY7) |
2005-2007 |
01 |
| 017 |
12010049 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) (BLACK) (SNAPS ON TO АККУМУЛЯТОР БОЛТ) |
DX29 (LC3, JJA) |
2006-2007 |
01 |
| 018 |
15869245 |
CABLE, BAT NEG (INCLS 17, 19, 20) (ACDelco #15869245) |
DW29 (LH2) |
2007-2007 |
01 |
| 018 |
15869245 |
CABLE, BAT NEG (INCLS 17, 19, 20) (ACDelco #15869245) |
DX29 (LC3) |
2007-2007 |
01 |
| 019 |
12160209 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) |
D29 (LH2, LY7, JJA) |
2005-2007 |
01 |
| 019 |
12160209 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) |
DX (LC3, JJA) |
2006-2007 |
01 |
| 020 |
10306471 |
SENSOR, BAT CUR (ЧАСТЬ OF 18)
| D29 |
2005-2007 |
01 |
|
| 021 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT CBL)
|
2005-2007 |
02 |
|
