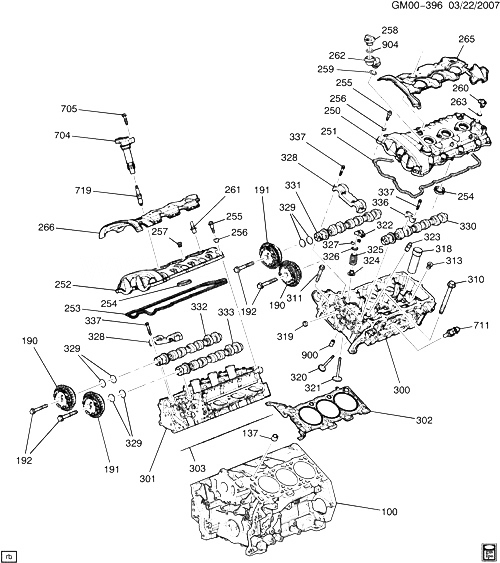

(GM00-396) - 2007 D ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ ДЕТАЛИ КОМПЛЕКТА (LY7/3.6-7) CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2007-2007
137 12570326 PIN, CYL HD LOC D (LY7) 2007-2007 04
190 12590683 ACTUATOR, CM/SHF POSN (EXHAUST) (STAMPED 12590683) (FOR 2ND DES SEE 12606653) (EXHAUST) D (LY7, M82) 2007-2007 02
190 12606653 ACTUATOR, CM/SHF POSN (STAMPED 12606653) (FOR 1ST DES SEE 12590683) (USE WASHER 12630941) D (LY7) 2007-2007 02
191 12590682 ACTUATOR, CM/SHF POSN (STAMPED 12590682) (FOR 2ND DES SEE 12603744) (INTAKE) D (LY7) 2007-2007 01
191 12590682 ACTUATOR, CM/SHF POSN (STAMPED 12590682) (FOR 2ND DES SEE 12603745) (INTAKE) D (LY7) 2007-2007 01
191 12603744 ACTUATOR, CM/SHF POSN (STAMPED 12603744) (FOR 1ST DES SEE 12590682) (INT) (USE WASHER 12630941) D (LY7) 2007-2007 01
191 12603745 ACTUATOR, CM/SHF POSN (STAMPED 12603745) (FOR 1ST DES SEE 12590682) (INT) (USE WASHER 12630941) D (LY7) 2007-2007 01
192 11588279 БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN) 2007-2007 04
250 12626055 COVER, CM/SHF (INCLS 251, 254-257, 260, 263) D (LY7) 2007-2007 01
251 12591200 SEAL, CM/SHF CVR (ЧАСТЬ OF 250) (*KIT1) D (LY7) 2007-2007 01
252 12626054 COVER, CM/SHF (INCLS 253-257, 261, 263) D (LY7) 2007-2007 01
253 12591203 SEAL, CM/SHF CVR (ЧАСТЬ OF 252) (*KIT1) D (LY7) 2007-2007 01
254 SEAL, SPLG SHLD (ЧАСТЬ OF 250, 252) 2007-2007
255 11561288 БОЛТ, CM/SHF CVR (ЧАСТЬ OF 250, 252) (HFH W/SHLDR, M6X1X35, 13 THD, 18 OD) (8.900) D (LY7) 2007-2007 26
256 12566250 INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 250, 252) D (LY7) 2007-2007 26
257 INSERT, IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ БОЛТ THD (ЧАСТЬ OF 250, 252) 2007-2007
258 12593356 CAP, OIL FIL (INCLS 904) (ACDelco #FC221) D (LY7) 2007-2007 01
259 12593348 SEAL, OIL FIL TUBE (O RING) (ЧАСТЬ OF 262) (27.94MM I.D.) (SIZE #320) (1.758) D (LY7) 2007-2007 01
260 12578316 FITTING, PCV (INCLS 263) (ЧАСТЬ OF 250) D (LY7) 2007-2007 01
261 12583384 FITTING, PCV (INCLS 263) (ЧАСТЬ OF 252) D (LY7) 2007-2007 01
262 12597946 TUBE, OIL FIL (INCLS 259) D (LY7) 2007-2007 01
263 SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 250, 252, 260, 261) 2007-2007
265 12601744 INSULATOR, CM/SHF HSG CVR (0.413) D (LY7) 2007-2007 01
266 12601745 INSULATOR, CM/SHF HSG CVR D (LY7) 2007-2007 01
300 12603904 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LY7) 2007-2007 01
301 12603901 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LY7) 2007-2007 01
302 GASKET, CYL HD (*KIT1) 2007-2007
303 GASKET, CYL HD (*KIT1) 2007-2007
310 11518863 БОЛТ, CYL HD 2007-2007 32
311 11519177 БОЛТ-HEX FLANGE HD, REDUCED BODY, M8X1.25X90, 8.8, GMW3359 (CYL HD) 2007-2007 02
313 11561751 PLUG, CYL HD WAT JKT HOLE (ЧАСТЬ OF 300, 301) (M20X1.5X30.5) (1.531) D (LY7) 2007-2007 02
318 SLEEVE, SPLG WIRE (ЧАСТЬ OF 300, 301) 2007-2007
319 11562127 PLUG, CYL HD OIL GAL (ЧАСТЬ OF 300, 301) (CUP-14.22 OD, 6.6 THK, 304SS) D (LY7) 2007-2007 04
319 12566290 PLUG, CYL HD OIL GAL (ЧАСТЬ OF 300, 301) (CUP DIA 14.178MM) D (LY7) 2007-2007 04
320 12575354 VALVE, EXH (STD) D (LY7) 2007-2007 12
320 12584760 VALVE, EXH (0.075 O.S.) D (LY7) 2007-2007 12
321 12575351 VALVE, INT (STD) D (LY7) 2007-2007 12
321 12584763 VALVE, INT (0.075MM O.S.) (0.297) D (LY7) 2007-2007 12
322 24100294 ARM, VLV RKR D (LY7) 2007-2007 24
323 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) D (LY7) 2007-2007 24
324 12565836 SEAL, VLV STEM OIL D (LY7) 2007-2007 24
325 12575355 ПРУЖИНА, VLV D (LY7) 2007-2007 24
326 12575196 RETAINER, VLV SPR D (LY7) 2007-2007 24
327 12575197 KEY, VLV STEM D (LY7) 2007-2007 48
328 CAP, CM/SHF BRG (ЧАСТЬ OF 300, 301) 2007-2007
329 12574477 RING, CM/SHF SPKT OIL SEAL (ЧАСТЬ OF 330-333) D (LY7) 2007-2007 08
330 12566670 CAMSHAFT, EXH (INCLS 329) D (LY7) 2007-2007 01
330 12632192 CAMSHAFT, EXH (INCLS 329) DW (LY7) 2007-2007 01
331 12609250 CAMSHAFT, INT (INCLS 329) D (LY7) 2007-2007 01
332 12620457 CAMSHAFT, EXH (INCLS 329) D (LY7) 2007-2007 01
332 12632194 CAMSHAFT, EXH (INCLS 329) D (LY7) 2007-2007 01
332 12632194 CAMSHAFT, EXH (INCLS 329) DW (LY7) 2007-2007 01
333 12609252 CAMSHAFT, INT (INCLS 329) (USE W/ACTUATOR 12603745) (FOR 1ST DES SEE 12566671) D (LY7) (2ND DES) 2007-2007 01
336 CAP, CM/SHF BRG (ЧАСТЬ OF 300, 301) 2007-2007
337 11518856 HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 300, 301) 2007-2007 16
704 12613057 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (INCLS 705) (ACDelco #12613057) D (LY7) 2007-2007 06
705 11588715 БОЛТ, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ЧАСТЬ OF 704) 2007-2007 01
711 12566778 SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-1581) D (LY7) 2007-2007 01
711 12566778 SENSOR, ENG COOL TEMP (ACDelco #213-1581) D (LY7) 2007-2007 01
719 12597464 СВЕЧИ, (DO NOT CHANGE СВЕЧИ GAP) (ACDelco #41-990) (PLATINUM PLUG) D (LY7) 2007-2007 06
900 12580965 VALVE, ENG OIL MANIF CHK D (LY7) 2007-2007 04
904 12593348 SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 258) (27.94MM I.D.) (SIZE #320) D (LY7) 2007-2007 01
K01 12625785 GASKET KIT, CYL HD (INCLS 251, 253, 302, 303) D (LY7) 2007-2007 01
