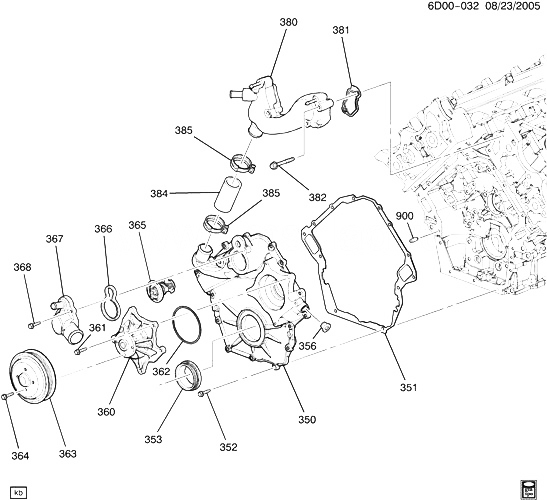

(6D00-032) - 2006-2009 DX29 ДВИГАТЕЛЬ В СБОРЕ-4.4L V8 ЧАСТЬ 3 ПЕРЕДНЯЯ КРЫШКА И ОХЛАЖДЕНИЕ (LC3/4.4D) CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
350 89018044 COVER, ENG FRT (INCLS 353) D (LC3) 2006-2009 01
351 12593627 GASKET, ENG FRT CVR D (LC3) 2006-2009 01
352 11519038 БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (ENG FRT CVR) 2006-2009 15
353 SEAL, ENG FRT CVR (ЧАСТЬ OF 350) 2006-2009
356 12569545 PLUG, ENG FRT CVR HOLE D (LC3) 2006-2009 01
360 12595614 PUMP, WAT (W/SEAL) (INCLS 362) (ACDelco #251-699) D (LC3) 2006-2009 01
361 11519038 БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (W/PMP) 2006-2009 05
362 12563877 SEAL, W/PMP CVR (O RING) (ЧАСТЬ OF 360) D (LC3) 2006-2009 01
363 12604614 PULLEY, W/PMP D (LC3) 2006-2009 01
364 24503961 БОЛТ, W/PMP PUL (M6X1.0 6G THD W/WA) (8MM SOCKET HD) D (LC3) 2006-2009 04
365 12601556 THERMOSTAT, ENG COOL (ACDelco #131-157) D (LC3) 2006-2009 01
366 12590871 GASKET, ENG COOL THERM (ACDelco #12590871) D (LC3) 2006-2009 01
367 12590759 ШЛАНГИ, ENG COOL THERM D (LC3) 2006-2009 01
368 11519038 БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (ENG COOL THERM HSG) 2006-2009 02
380 12582237 OUTLET, WAT (ACDelco #15-10591) D (LC3) 2006-2009 01
381 12590862 GASKET, WAT OTLT D (LC3) 2006-2009 02
382 11519174 БОЛТ, HFH, W/REDUCED BODY, M8X1.25X65, THD 22, O.D. 18, 8.8, GMW3359 (WAT OTLT) 2006-2009 04
384 12608315 HOSE, RAD BYPASS D (LC3) 2006-2009 01
385 15024902 CЛАМПА, HOSE ПРУЖИНА, 42MM - NOM SIZE, BLK (RAD BYPASS HOSE) 2006-2009 02
900 03525915 PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) D (LC3) 2006-2009 02
