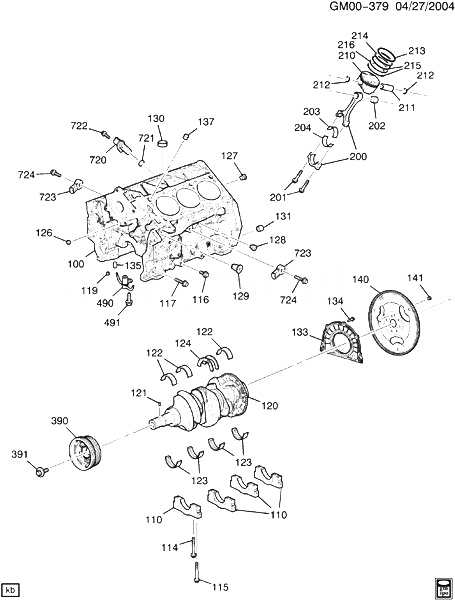

(GM00-379) - 2005-2007 D ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И ВНУТРЕННИЕ ДЕТАЛИ (LY7/3.6-7) CADILLAC - STS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG (MCHG) 2005-2007
110 CAP, CR/SHF BRG 2005-2007
114 11518861 БОЛТ, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP) 2005-2007 08
115 12560272 БОЛТ, CR/SHF BRG CAP (BOTTOM (LONG) (M10X2X102.5, 24.5) D (LY7) 2005-2007 10
116 11609410 БОЛТ, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056) 2005-2007 04
116 89021297 ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (CR/SHF BRG CAP) 2005-2007 AR
117 11589000 БОЛТ, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) 2005-2007 04
119 12557520 PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) D (LY7) 2005-2007 01
120 12621351 CRANKSHAFT, D (LY7) 2007-2007 01
120 12621351 CRANKSHAFT, (****REFERENCE ONLY, DO NOT CATALOG*******) (USES BALANCER W/KEY) D (LY7) 2007-2007 01
120 12621351 CRANKSHAFT, (WHEN REPLACING CRANK W/O KEY, REQUIRES KEY AND BALANCER) D (LY7) 2007-2007 01
121 12585420 PIN, CR/SHF SPKT LOC D (LY7) 2005-2007 01
122 BEARING, CR/SHF UPR (*KIT1) 2005-2007
123 BEARING, CR/SHF LWR (*KIT1, KIT2) 2005-2007
124 BEARING, CR/SHF THR (*KIT2) 2005-2007
126 12566290 PLUG, ENG BLK OIL GAL (CUP DIA 14.178MM) (0.253) D (LY7) 2005-2007 01
127 12566587 PLUG, ENG BLK OIL GAL D (LY7) 2005-2007 04
128 12566587 PLUG, ENG BLK OIL GAL D (LY7) 2005-2007 04
129 12565988 PLUG - M20X1.5X30.5, 8.8, GMW3044, SEALANT PER GM9985490 (CYL HD WAT JKT HOLE) 2005-2007 02
130 00360571 PLUG, ENG BLK CORE HOLE (CUP DIA 34.3MM) D (LY7) 2007-2007 02
131 12597210 PIN, TRANS LOC D (LP1, LY7) 2006-2007 02
133 12620955 SEAL, CR/SHF RR OIL (INCLS 134) D (LY7) 2005-2007 01
134 11517590 БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ЧАСТЬ OF 133) 2005-2007 02
135 22531637 PIN, МАСЛЯНЫЙ ПОДДОН LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) D (LY7) 2005-2007 02
137 12570326 PIN, CYL HD LOC D (LY7) 2005-2007 04
140 12572042 PLATE, A/TRNS FLEX D (LY7) 2005-2007 01
141 11518862 БОЛТ, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) 2005-2007 08
200 12608432 ROD, CONN (INCLS 201, 202) D (LY7) 2005-2007 06
201 11519680 БОЛТ, CONN ROD (ЧАСТЬ OF 200) (M9X1X53) D (LY7) 2005-2007 12
202 BUSHING, CONN ROD (ЧАСТЬ OF 200) 2005-2007
203 BEARING, CONN ROD (UPPER) (*KIT4) 2005-2007
204 BEARING, CONN ROD (LOWER) (*KIT4) 2005-2007
210 12585675 PISTON, (W/PIN) (INCLS 211, 212) (.25 O.S.) D (LY7) 2005-2007 06
210 12590866 PISTON, (W/PIN) (INCLS 211, 212) (STD) D (LY7) 2005-2007 06
211 PIN, PSTN (ЧАСТЬ OF 210) 2005-2007
212 12566186 RETAINER, PSTN PIN (ЧАСТЬ OF 210) D (LY7) 2005-2007 12
213 RING, PSTN CMPRN UPR (*KIT3) 2005-2007
214 RING, PSTN CMPRN LWR (*KIT3) 2005-2007
215 RAIL, PSTN OIL RING (*KIT3) 2005-2007
216 SPACER, PSTN OIL RING RL (*KIT3) 2005-2007
390 12597654 BALANCER, CR/SHF (DUAL BELT, W/O KEYWAY) (FOR 2ND DES SEE 12603180) D (LY7) (1ST DES) 2007-2007 01
390 12603180 BALANCER, CR/SHF (DUAL BELT) (USES BALANCER W/KEY) (FOR 1ST DES SEE 12597654) D (LY7) (2ND DES) 2007-2007 01
391 11569873 БОЛТ, CR/SHF BALR (M14X1.5X48.4) D (LY7) 2005-2007 01
490 12590119 NOZZLE, PSTN OIL D (LY7) 2005-2007 03
491 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) 2005-2007 01
720 12582652 SENSOR, CR/SHF POSN (INCLS 721, 722) (ACDelco #213-1632) D (LY7, LP1) 2005-2007 01
721 SEAL, CR/SHF POSN SEN (O RING) (ЧАСТЬ OF 720) 2005-2007
722 11517590 БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ЧАСТЬ OF 720) 2005-2007 01
723 12618603 SENSOR, KNOCK (W/O LEADS) (INCLS 724) (ACDelco #213-4335) D (LY7) 2005-2007 02
724 11519980 БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (ЧАСТЬ OF 723) 2005-2007 01
K01 12610603 BEARING KIT, CR/SHF (#1, 2, 4 STD) (INCLS 122, 123) D (LY7) 2007-2007 03
K02 12610604 BEARING KIT, CR/SHF (#3 STD) (INCLS 123, 124) D (LY7) 2007-2007 01
K03 12608615 RING KIT, PSTN (INCLS 213-216) (STD) D (LY7) 2005-2007 06
K04 12598657 BEARING KIT, CONN ROD (INCLS 203, 204) D (LY7) 2005-2007 06
