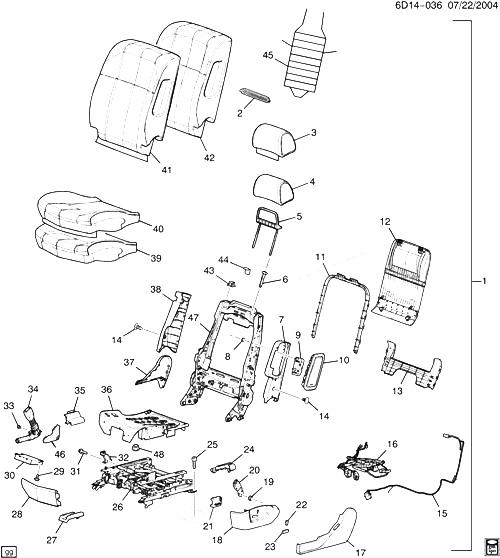

(6D14-036) - 2005-2010 D29 СИДЕНЬЕ В СБОРЕ/DRIVER (ИСКЛЮЧАЯ ВЕНТИЛЯЦИЮ И ОБОГРЕВ KB6) CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) 2005-2006
002 88995199 ПРУЖИНА, D/SEAT BK CUSH PAD SUPT WIRE DW 2005-2010 01
003 19123274 COVER, D/SEAT H/RST (EBONY) DX (194, 674) 2006-2006 01
003 19123276 COVER, D/SEAT H/RST (GRAY) DX (134) 2006-2006 01
003 88992718 COVER, D/SEAT H/RST (EBONY) DW (192) 2005-2006 01
003 88992719 COVER, D/SEAT H/RST (CASHMERE) DW (322) 2005-2006 01
003 88992720 COVER, D/SEAT H/RST (GRAY) DW (132) 2005-2006 01
003 88995098 COVER, D/SEAT H/RST (CASHMERE) DW (323) 2005-2006 01
003 88995099 COVER, D/SEAT H/RST (EBONY) DW (193) 2005-2006 01
003 88995270 COVER, D/SEAT H/RST (GRAY) DW (133) 2005-2009 01
004 88952658 PAD, D/SEAT H/RST D29 2005-2010 01
005 88897670 SUPPORT, D/SEAT H/RST D 2005-2007 01
006 88994546 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DW (19I) 2006-2006 01
006 88994546 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DX (19I, 67I) 2006-2009 01
006 88994608 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (13I) 2005-2009 01
006 88994608 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DX (13I) 2006-2009 01
006 88994609 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (32I) 2005-2006 01
006 88994611 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (13I) 2005-2009 01
006 88994611 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DX (13I) 2006-2009 01
006 88994612 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (32I) 2005-2006 01
006 88994613 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) (11.625) DW (19I) 2006-2006 01
006 88994613 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) (11.625) DX (19I, 67I) 2006-2009 01
007 88992019 PANEL, D/SEAT BK CUSH FIN (FILLER) (OUTBOARD) DW, DX 2006-2009 01
008 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (INFL RST D/SEAT SI MDL) 2005-2010 06
009 88993161 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2005-2010 01
009 88993161 ШЛАНГИ, INFL RST F/SEAT SI MDL DX 2006-2009 01
009 88993162 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2005-2010 01
009 88993162 ШЛАНГИ, INFL RST F/SEAT SI MDL DX 2006-2009 01
010 15939003 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) DW (32I) 2006-2006 01
010 15939004 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DW (19I) 2006-2006 01
010 15939004 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DX (19I, 67I) 2006-2009 01
010 15939005 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DW (13I) 2006-2009 01
011 88993281 RETAINER, D/SEAT BK CUSH FIN PNL (TRIM RING) (14.924) DW 2005-2010 01
011 88993281 RETAINER, D/SEAT BK CUSH FIN PNL (TRIM RING) (14.924) DX 2006-2009 01
012 19123717 PANEL, D/SEAT BK CUSH FIN (GRAY) (NUANCE MATTE) DX (134) 2006-2009 01
012 19123718 PANEL, D/SEAT BK CUSH FIN (EBONY) DX (19I, 67I) 2006-2009 01
012 88993967 PANEL, D/SEAT BK CUSH FIN (GRAY) DW (132) 2005-2006 01
012 88993967 PANEL, D/SEAT BK CUSH FIN (GRAY) DX (134) 2006-2006 01
012 88993968 PANEL, D/SEAT BK CUSH FIN (EBONY) DW (192) 2005-2006 01
012 88993969 PANEL, D/SEAT BK CUSH FIN (CASHMERE) DW (322) 2005-2006 01
012 88995213 PANEL, D/SEAT BK CUSH FIN (CASHMERE) DW (323) 2005-2006 01
012 88995214 PANEL, D/SEAT BK CUSH FIN (EBONY) DW (193) 2005-2006 01
012 88995265 PANEL, D/SEAT BK CUSH FIN (GRAY) DW (133) 2005-2009 01
013 88994001 COVER, D/SEAT INR ADJR RR FIN (GRAY) DW, DX (13I) 2006-2009 01
013 88994002 COVER, D/SEAT INR ADJR RR FIN (EBONY) DW (19I) 2005-2006 01
013 88994002 COVER, D/SEAT INR ADJR RR FIN (EBONY) DX (19I, 67I) 2006-2009 01
013 88994003 COVER, D/SEAT INR ADJR RR FIN (CASHMERE) D29 (32I) 2005-2006 01
014 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK CUSH FIN PNL (PUSH IN)) 2005-2010 05
015 15218855 HARNESS, INFL RST WRG D29 (IL2, IL3) 2006-2010 02
016 88952682 HARNESS, D/SEAT ADJR WRG DW29 (AQ9, UX8) (EXC AL2, AX4, A45, KA1, KB6) 2005-2007 01
017 88993983 COVER, D/SEAT RECL FIN (GRAY) (OUTBOARD) DW, DX (13I) 2006-2009 01
017 88993984 COVER, D/SEAT RECL FIN (EBONY) (OUTBOARD) DW (19I) 2005-2006 01
017 88993984 COVER, D/SEAT RECL FIN (EBONY) (OUTBOARD) DX (19I, 67I) 2006-2009 01
017 88993985 COVER, D/SEAT RECL FIN (CASHMERE) (OUTBOARD) DW (32I) 2005-2006 01
018 88993971 BEZEL, D/SEAT ADJR SW (GRAY) DW (AL2, 13I) 2005-2009 01
018 88993971 BEZEL, D/SEAT ADJR SW (GRAY) DX (13I) 2006-2009 01
018 88993972 BEZEL, D/SEAT ADJR SW (EBONY) DW (AL2, 19I) 2005-2006 01
018 88993972 BEZEL, D/SEAT ADJR SW (EBONY) DX (19I, 67I) 2006-2009 01
018 88993973 BEZEL, D/SEAT ADJR SW (CASHMERE) DW (AL2, 32I) 2005-2006 01
018 88993977 BEZEL, D/SEAT ADJR SW (GRAY) DW (13I) (EXC AL2) 2005-2009 01
018 88994854 BEZEL, D/SEAT ADJR SW (EBONY) DW (19I) (EXC AL2) 2005-2009 01
018 88994855 BEZEL, D/SEAT ADJR SW (CASHMERE) DW (32I) (EXC AL2) 2005-2009 01
019 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT BELT (RETR SI)) 2005-2010 04
020 25742613 PLATE, D/SEAT BELT ANC (RETR SI) D29 2005-2010 01
021 89043625 SWITCH, D/SEAT ADJR RECL (8-WAY W/O KNOBS/BUTTONS, ADJR RECL) (11.588) D29 2005-2010 01
022 25752511 KNOB, D/SEAT RECL LVR (GRAY) D29 (13I) 2005-2009 01
022 25770401 KNOB, D/SEAT RECL LVR (CASHMERE) DW (32I) 2005-2006 01
022 89043626 KNOB, D/SEAT RECL LVR (EBONY) (11.588) DW, DX (19I) 2006-2006 01
023 12451443 KNOB, D/SEAT ADJR SW (EBONY) (11.588) DW, DX (19I) 2006-2006 01
023 25752512 KNOB, D/SEAT ADJR SW (GRAY) D29 (13I) 2005-2006 01
023 25770402 KNOB, D/SEAT ADJR SW (CASHMERE) DW (32I) 2005-2006 01
024 88994013 COVER, D/SEAT OTR ADJR RR FIN (GRAY) (ПОЛ) DW, DX (13I) 2006-2009 01
024 88994014 COVER, D/SEAT OTR ADJR RR FIN (EBONY) (ПОЛ) DW (19I) 2005-2010 01
024 88994015 COVER, D/SEAT OTR ADJR RR FIN (CASHMERE) (ПОЛ) D29 (32I) 2005-2006 01
025 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (D/SEAT ADJR (W/BELT)) (8.907) 2005-2010 02
026 88952671 ADJUSTER, D/SEAT DW (A45) 2005-2010 01
026 88952671 ADJUSTER, D/SEAT DX 2006-2009 01
026 88992727 ADJUSTER, D/SEAT DW (EXC A45) 2005-2010 01
027 88994019 COVER, D/SEAT OTR ADJR FRT FIN (GRAY) (ПОЛ) DW (13I) 2005-2010 01
027 88994019 COVER, D/SEAT OTR ADJR FRT FIN (GRAY) (ПОЛ) DX (13I) 2006-2009 01
027 88994020 COVER, D/SEAT OTR ADJR FRT FIN (EBONY) (ПОЛ) DW, DX (19I) 2006-2009 01
027 88994021 COVER, D/SEAT OTR ADJR FRT FIN (CASHMERE) (ПОЛ) DW (32I) 2005-2009 01
028 88993995 COVER, D/SEAT CUSH FRT (GRAY) (11.573) DW (132, 133) 2005-2009 01
028 88993995 COVER, D/SEAT CUSH FRT (GRAY) (11.573) DX (134) 2006-2009 01
028 88993996 COVER, D/SEAT CUSH FRT (EBONY) (11.573) DW (192, 193) 2005-2006 01
028 88993996 COVER, D/SEAT CUSH FRT (EBONY) (11.573) DX (194, 674) 2006-2009 01
028 88993997 COVER, D/SEAT CUSH FRT (CASHMERE) (11.573) DW (322, 323) 2005-2006 01
029 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2005-2010 03
030 15870719 МОДУЛЬ, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) (11.558) D29 2005-2010 01
030 15870719 МОДУЛЬ, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) D29 2005-2010 01
031 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (D/SEAT RECL FIN CVR BRKT) 2005-2010 01
032 88994341 BRACKET, D/SEAT RECL FIN CVR DW 2005-2010 01
032 88994341 BRACKET, D/SEAT RECL FIN CVR DX 2006-2009 01
033 11517781 NUT-HEX SPL, M10X1.5X20.2, 9, 4345M, 6175M (D/SEAT BELT TR CVR) 2005-2010 01
034 10367772 BELT, D/SEAT (BKL SI) (CASHMERE) DW (AQ9, AX4, 32I, 39I) (EXPORT) 2006-2009 01
034 10367773 BELT, D/SEAT (BKL SI) (GRAY) DW, DX (AX4, 13I) (EXPORT) 2006-2009 01
034 10367774 BELT, D/SEAT (BKL SI) (EBONY) DW (AQ9, AX4, 19I) (EXPORT) 2006-2009 01
034 10367774 BELT, D/SEAT (BKL SI) (EBONY) DX (AQ9, AX4, 194, 674) (EXPORT) 2006-2009 01
035 88994007 COVER, D/SEAT INR ADJR LWR RR FIN (GRAY) (ПОЛ) (КРАСКА TO MATCH) DW, DX (13I) 2006-2009 01
035 88994008 COVER, D/SEAT INR ADJR LWR RR FIN (EBONY) (ПОЛ) DW (19I) 2005-2006 01
035 88994008 COVER, D/SEAT INR ADJR LWR RR FIN (EBONY) (ПОЛ) DX (19I, 67I) 2006-2009 01
036 88952675 РАМА, D/SEAT CUSH DW 2005-2010 01
036 88952675 РАМА, D/SEAT CUSH DX 2006-2009 01
037 88993989 COVER, D/SEAT RECL FIN (GRAY) (INBOARD) DW, DX (13I) 2006-2009 01
037 88993990 COVER, D/SEAT RECL FIN (EBONY) (INBOARD) DX (19I, 67I) 2006-2009 01
038 88992767 PANEL, D/SEAT BK CUSH FIN (FILLER) (INBOARD) DW, DX 2006-2009 01
039 88952680 PAD, D/SEAT CUSH DW (EXC KB6) 2005-2010 01
039 88952680 PAD, D/SEAT CUSH DX 2006-2009 01
040 88992706 COVER, D/SEAT CUSH (GRAY) DW (KA1, 132) (EXC KB6) 2005-2006 01
040 88992827 COVER, D/SEAT CUSH (EBONY) DW (KA1, 192) (EXC KB6) 2005-2006 01
040 88992828 COVER, D/SEAT CUSH (CASHMERE) DW (AL2, KA1, 322) (EXC KB6) 2005-2006 01
040 88994367 COVER, D/SEAT CUSH (EBONY) DW (192) (EXC KA1, KB6) 2005-2006 01
040 88994368 COVER, D/SEAT CUSH (CASHMERE) DW (322) (EXC KA1, KB6) 2005-2006 01
040 88994369 COVER, D/SEAT CUSH (GRAY) DW (132) (EXC KA1, KB6) 2005-2006 01
040 88995785 COVER, D/SEAT CUSH (GRAY) DX (AQ9, 134) 2006-2006 01
040 88995786 COVER, D/SEAT CUSH (EBONY) DX (194) 2006-2006 01
040 88995787 COVER, D/SEAT CUSH (RED) DX (674) 2006-2006 01
041 19122838 COVER, D/SEAT BK CUSH (EBONY) DX (AQ9, AX4, UX8, 194) (EXPORT) 2006-2006 01
041 19122840 COVER, D/SEAT BK CUSH (RED) DX (AQ9, AX4, 674) (EXPORT) 2006-2006 01
041 19123386 COVER, D/SEAT BK CUSH (EBONY) DW (AQ9, AX4, 192) (EXC KA1) (EXPORT) 2006-2006 01
041 19123387 COVER, D/SEAT BK CUSH (CASHMERE) DW (AQ9, AX4, 322) (EXC KA1) (EXPORT) 2006-2006 01
041 19123388 COVER, D/SEAT BK CUSH (GRAY) DW (AQ9, AX4, 132) (EXC KA1) (EXPORT) 2006-2006 01
041 19123394 COVER, D/SEAT BK CUSH (EBONY) DW (AQ9, AX4, 193) (EXC KA1) (EXPORT) 2006-2006 01
041 19123395 COVER, D/SEAT BK CUSH (CASHMERE) DW (AQ9, AX4, 323) (EXC KA1) (EXPORT) 2006-2006 01
041 19123396 COVER, D/SEAT BK CUSH (GRAY) DW (AQ9, AX4, 133) (EXC KA1) (EXPORT) 2006-2006 01
041 19124252 COVER, D/SEAT BK CUSH (GRAY) DX (AQ9, AX4, 134) (EXPORT) 2006-2006 01
041 88992821 COVER, D/SEAT BK CUSH (CASHMERE) (W/SIAB, HEAT, VENT, BOSE) DW (AL2, AQ9, A45, 322) (EXC KA1) 2005-2006 01
041 88992822 COVER, D/SEAT BK CUSH (GRAY) DW (AL2, AQ9, A45, UY5, 132) 2005-2006 01
041 88994359 COVER, D/SEAT BK CUSH (EBONY) DW (AQ9, UX8, 192) (EXC AL2, KA1, KB6) 2005-2006 01
041 88994360 COVER, D/SEAT BK CUSH (CASHMERE) DW (AQ9, UX8, 322) (EXC AL2, KA1, KB6) 2005-2006 01
041 88994361 COVER, D/SEAT BK CUSH (GRAY) D29 (UX8, 132) (EXC AL2, KA1) 2005-2006 01
041 88995074 COVER, D/SEAT BK CUSH (GRAY) (W/HEAT BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KA1, UY5, 132) (EXC KB6) 2005-2006 01
041 88995075 COVER, D/SEAT BK CUSH (CASHMERE) (W/BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KA1, UY5, 322) (EXC KB6) 2005-2006 01
041 88995076 COVER, D/SEAT BK CUSH (EBONY) (W/BOSE ДИНАМИКИ) DW (KA1, 192) (EXC KB6) 2005-2006 01
041 88995268 COVER, D/SEAT BK CUSH (GRAY) (W/BOSE) DW (133) (EXC KA1) 2005-2009 01
041 88995724 COVER, D/SEAT BK CUSH (GRAY) (W/O BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KA1, UX8, 132) (EXC AX4, KB6) 2005-2006 01
041 88995725 COVER, D/SEAT BK CUSH (EBONY) (W/O BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KA1, UX8, 192) (EXC KB6) 2005-2006 01
041 88995726 COVER, D/SEAT BK CUSH (CASHMERE) (W/O BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KA1, UX8, 322) (EXC KB6) 2005-2006 01
041 88995780 COVER, D/SEAT BK CUSH (EBONY) DW (AL2, AQ9, AX4, 19I) (EXPORT) 2006-2006 01
041 88995780 COVER, D/SEAT BK CUSH (EBONY) DX (AQ9, UY5, 194) 2006-2006 01
041 88995781 COVER, D/SEAT BK CUSH (RED) DX (AQ9, 674) 2006-2006 01
042 88952678 PAD, D/SEAT BK CUSH (W/O BOSE) DW (EXC KB6) 2005-2010 01
042 88952678 PAD, D/SEAT BK CUSH (W/O BOSE) DX 2006-2009 01
042 88994074 PAD, D/SEAT BK CUSH (W/BOSE) DW (KA1) (EXC KB6) 2005-2010 01
042 88994074 PAD, D/SEAT BK CUSH (W/BOSE) DX 2006-2009 01
043 11570654 ГАЙКА, D/SEAT (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) DW, DX 2006-2009 02
044 88994323 CAP, D/SEAT H/RST GDE DW 2005-2010 01
044 88994323 CAP, D/SEAT H/RST GDE DX 2006-2009 01
044 88994324 CAP, D/SEAT H/RST GDE DW 2005-2010 01
044 88994324 CAP, D/SEAT H/RST GDE DX 2006-2009 01
045 88992736 SUPPORT, D/SEAT BK CUSH PAD DW 2005-2010 01
046 88994291 COVER, D/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (32I) 2005-2006 01
046 88994291 COVER, D/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW, DX (13I) 2006-2009 01
046 88994295 COVER, D/SEAT BELT OPG TR (RETR SI) (GRAY) DW (13I) 2005-2006 01
046 88994295 COVER, D/SEAT BELT OPG TR (RETR SI) (GRAY) DW (19I) 2006-2009 01
046 88994295 COVER, D/SEAT BELT OPG TR (RETR SI) (GRAY) DX (19I, 674) 2006-2009 01
046 88994297 COVER, D/SEAT BELT OPG TR (RETR SI) (EBONY) DW (19I) 2005-2006 01
046 88994297 COVER, D/SEAT BELT OPG TR (RETR SI) (EBONY) DW (32I) 2006-2010 01
047 88994920 РАМА, D/SEAT BK CUSH (W/O MEMORY) (INCLS RECL MOTOR) DW 2005-2010 01
047 88994922 РАМА, D/SEAT BK CUSH (W/MEMORY) (INCLS RECL MOTOR) DW 2005-2010 01
047 88994922 РАМА, D/SEAT BK CUSH (W/MEMORY) (INCLS RECL MOTOR) DX 2006-2006 01
048 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT) 2005-2010 04
