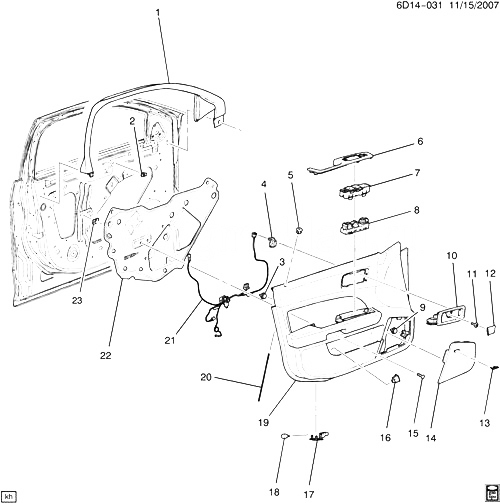

(6D14-031) - 2005-2007 D29 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15265340 WEATHERSTRIP, FRT S/D WDO DX 2006-2009 01
001 15265340 WEATHERSTRIP, FRT S/D WDO DW 2006-2010 01
002 ГАЙКА, FRT S/D TR 2005-2010
002 11570654 ГАЙКА, FRT S/D TR (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) DW, DX 2006-2009 02
003 11562044 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 19) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DW, DX 2006-2010 06
004 25746453 SWITCH, DR LK (ЧАСТЬ OF 19) (EBONY) DW 2005-2010 01
004 25746453 SWITCH, DR LK (ЧАСТЬ OF 19) (EBONY) DX 2006-2009 01
005 25903279 BEZEL, DR LK STATUS IND (ЧАСТЬ OF 19, 20) D29 2005-2010 01
006 BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 19) 2005-2007
007 ШЛАНГИ, FRT S/D ACSRY SW (ЧАСТЬ OF 19) 2005-2007
008 25746447 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (LOCK/UNLOCK, TRUNK REL, MIRROR) DW (DL7) 2005-2010 01
008 25746447 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (LOCK/UNLOCK, TRUNK REL, MIRROR) DX (DL7) 2006-2009 01
008 25746448 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (W/SW (S) 1-MIRROR, 1-WDO LOCK, 4-WDO) DW (DR2, 13I, 19I, 32I) 2006-2006 01
008 25746448 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (W/SW (S) 1-MIRROR, 1-WDO LOCK, 4-WDO) DX (DR2, 19I, 67I) 2006-2006 01
009 11562043 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 19) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DW, DX29 2006-2006 10
010 10370352 HANDLE, FRT S/D I/S (ЧАСТЬ OF 19) (CASHMERE) (REQUIRES QTY 2 11501793 NUT) DW (32I) 2005-2009 01
010 10370353 HANDLE, FRT S/D I/S (ЧАСТЬ OF 19) (EBONY) (REQUIRES QTY 2 11501793 NUT) DW (DL7, DR2, 132, 133, 192, 193) 2005-2006 01
010 10370353 HANDLE, FRT S/D I/S (ЧАСТЬ OF 19) (EBONY) (REQUIRES QTY 2 11501793 NUT) DX (DL7, DR2, 194, 674) 2006-2006 01
011 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR) 2005-2010 02
012 10373149 COVER, FRT S/D I/S HDL BZL FIN (EBONY) D29 (13I, 19I, 67I) 2006-2006 01
012 10373151 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) D29 (32I) 2005-2006 01
013 10291759 EMBLEM, RDO FRT S/D SPKR GRL (ЧАСТЬ OF 14, 19) D29 2005-2007 02
014 89046417 GRILLE, RDO FRT SPKR (ЧАСТЬ OF 19) (INCLS 13) (GRAY) (9.655) DW29 (132, 133) 2005-2007 01
014 89046418 GRILLE, RDO FRT SPKR (ЧАСТЬ OF 19) (INCLS 13) (EBONY) (9.655) DW29 (192, 193) 2005-2007 01
014 89046419 GRILLE, RDO FRT SPKR (ЧАСТЬ OF 19) (INCLS 13) (CASHMERE) (9.655) DW29 (322, 323) 2005-2007 01
015 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) 2005-2010 01
016 25733723 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 19) (GRAY) (ACDelco #D1498E) DW29 (132, 133) 2005-2009 01
016 25769208 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 19) (EBONY) (LABELED 25769208) (ACDelco #D1499E) DW29 (192, 193, 194) 2005-2009 01
016 25769208 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 19) (EBONY) (LABELED 25769208) (ACDelco #D1499E) DX29 (134, 194, 674) 2006-2009 01
016 25769209 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 19) (CASHMERE) (ACDelco #D1400F) D29 (322, 323) 2005-2009 01
017 10359030 ЛАМПА, CTSY (ЧАСТЬ OF 19) (INCLS 18) D 2005-2010 04
018 19115808 BULB, FRT S/D C/LP (ЧАСТЬ OF 17, 19) (8.991) (ACDelco #19115808) D 2005-2010 02
019 15773704 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) DX (DR2, 134) 2006-2007 01
019 15773706 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) DX (DR2, 194) 2006-2009 01
019 15773708 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) DX (DR2, 674) 2006-2009 01
019 15773711 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (HANDLE/W/FOLD/FULL LEATHER) DX (DL7, 134) 2006-2007 01
019 15773712 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) DX (DL7, 194) 2006-2009 01
019 15773713 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) (HANDLE/W/FOLD/FULL LEATHER) DX (DL7, 674) 2006-2009 01
019 15917257 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) DW (B20, DR2, 192) 2005-2006 01
019 15917258 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) DW (B20, DR2, 132) 2005-2006 01
019 15917259 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (B20, DR2, 322) 2005-2006 01
019 15917273 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) DW (DR2, 192) (EXC B20) 2005-2006 01
019 15917274 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) DW (DR2, 132) (EXC B20) 2005-2006 01
019 15917275 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (DR2, 322) (EXC B20) 2005-2006 01
019 20755589 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) DX (DR2, 134) 2006-2009 01
019 20755590 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (HANDLE/W/FOLD/FULL LEATHER) DX (DL7, 134) 2006-2009 01
019 89045058 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (DL7, 322) (EXC B20) 2005-2006 01
019 89045059 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) (LESS SWITCH ASMS) DW (DL7, 192) (EXC B20) 2005-2006 01
019 89045060 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (LESS SWITCH ASMS) DW (DL7, 132) (EXC B20) 2005-2006 01
019 89045067 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (B20, DL7, 322) 2005-2006 01
019 89045068 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) (LESS SWITCH ASMS) DW (B20, DL7, 192) 2005-2006 01
019 89045069 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (LESS SWITCH ASMS) DW (B20, DL7, 132) 2005-2006 01
019 89045070 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (B20, DR2, 323) 2006-2007 01
019 89045071 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) (LESS SWITCH ASMS) DW (B20, DR2, 193) 2005-2007 01
019 89045072 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (LESS SWITCH ASMS) DW (B20, DR2, 133) 2005-2007 01
019 89045073 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) DW (B20, DL7, 323) 2005-2008 01
019 89045074 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) (LESS SWITCH ASMS) DW (B20, DL7, 193) 2005-2007 01
019 89045075 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) (LESS SWITCH ASMS) DW (B20, DL7, 133) 2005-2007 01
020 25799901 INDICATOR, DR LK STATUS (ЧАСТЬ OF 19) (INCLS 5) (EBONY) D29 2005-2009 02
021 21992958 HARNESS, FRT S/D WRG (ЧАСТЬ OF 19) DW29 2005-2010 01
021 21992958 HARNESS, FRT S/D WRG (ЧАСТЬ OF 19) DX29 2006-2009 01
022 15291741 DEFLECTOR, FRT S/D WAT D29 2005-2010 01
023 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D29 2005-2010 04
