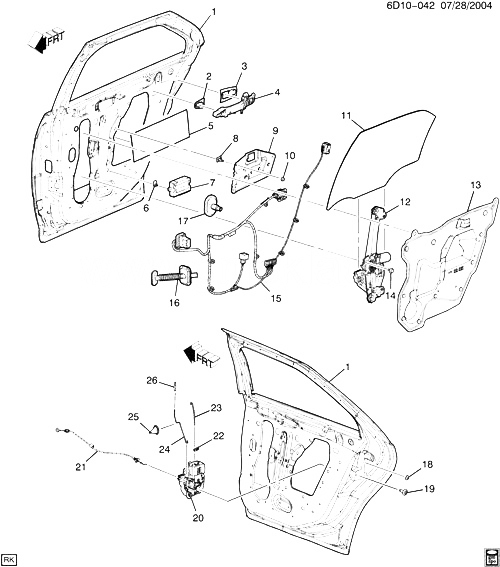

(6D10-042) - 2005-2010 D29 АРМАТУРА ЗАДНЕЙ ДВЕРИ ЧАСТЬ 2 CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89022643 DOOR, RR SI (10.351) D29 2005-2010 01
001 89022644 DOOR, RR SI (10.351) D29 2005-2010 01
002 SEAL, RR S/D O/S HDL (ЧАСТЬ OF 4) 2005-2010
003 SEAL, RR S/D O/S HDL (ЧАСТЬ OF 4) 2005-2010
004 25864483 ШЛАНГИ KIT, RR S/D O/S HDL (INCLS 2, 3) (INCLS ШЛАНГИ И SEALS) DW 2005-2010 01
004 25864483 ШЛАНГИ KIT, RR S/D O/S HDL (INCLS 2, 3) (INCLS ШЛАНГИ И SEALS) DX 2006-2009 01
004 25864484 ШЛАНГИ KIT, RR S/D O/S HDL (INCLS 2, 3) (INCLS ШЛАНГИ И SEALS) DW 2005-2010 01
004 25864484 ШЛАНГИ KIT, RR S/D O/S HDL (INCLS 2, 3) (INCLS ШЛАНГИ И SEALS) DX 2006-2009 01
005 25752069 DEADENER, RR S/D #2 DW, DX 2006-2006 02
006 11570209 БОЛТ, DR LK O/S R/VIEW MIR P/W CONT MDL (2.510) (QUICKIE CLIP) D 2005-2010 02
007 15910993 МОДУЛЬ, DR LK P/W CONT D29 2005-2007 01
007 15910993 МОДУЛЬ, DR LK P/W CONT (10.485) D29 2005-2007 01
007 15910994 МОДУЛЬ, DR LK P/W CONT D29 2005-2007 01
007 15910994 МОДУЛЬ, DR LK P/W CONT (10.485) D29 2005-2007 01
008 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RR S/D PULL HDL HNGR PLT) 2005-2010 08
009 25735487 PLATE, RR S/D PULL HDL HNGR D29 2005-2010 01
009 25735488 PLATE, RR S/D PULL HDL HNGR D29 2005-2010 01
010 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RR S/D PULL HDL HNGR PLT) 2005-2010 08
011 25715107 WINDOW, RR S/D D29 2005-2010 01
011 25715108 WINDOW, RR S/D D29 2005-2010 01
012 15277681 REGULATOR, RR S/D WDO (INCLS MOTOR) (ACDelco #15277681) D29 2005-2010 01
012 15277682 REGULATOR, RR S/D WDO (INCLS MOTOR) (ACDelco #15277682) D29 2005-2010 01
013 25723826 DEFLECTOR, RR S/D WAT D29 2005-2010 01
013 25723827 DEFLECTOR, RR S/D WAT D29 2005-2010 01
014 11519381 БОЛТ, WASHER M6X1X15, 5.75 THD, 17 OD, 8.8, GMW3359, M-POINT, 1.65 CON SPRWA (RR S/D WDO REG) 2005-2010 06
015 25774062 HARNESS, RR S/D DR WRG (INCLS 16, 17) DW, DX29 2006-2008 01
015 25774063 HARNESS, RR S/D DR WRG (INCLS 16, 17) DW, DX29 2006-2008 01
016 GROMMET, RR S/D WRG HARN (ЧАСТЬ OF 15) 2005-2010
017 GROMMET, RR S/D WRG HARN (ЧАСТЬ OF 15) 2005-2010
018 25676040 PLUG, RR S/D ACC HOLE (25MM OD) (12.809) D29 2005-2010 02
019 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (RR S/D LK) 2005-2010 04
020 12450838 LOCK, RR S/D (INCLS 21, 22) D29 (UA2) (EXPORT) 2005-2008 01
020 20786543 LOCK, RR S/D (INCLS 21, 22) DW (EXC UA2) 2005-2010 01
020 20786543 LOCK, RR S/D (INCLS 21, 22) DX (EXC UA2) 2006-2009 01
020 25843158 LOCK, RR S/D (INCLS 21, 22) D29 (UA2) (EXPORT) 2005-2008 01
020 25876549 LOCK, RR S/D (INCLS 21, 22) DW (EXC UA2) 2005-2010 01
020 25876549 LOCK, RR S/D (INCLS 21, 22) DX (EXC UA2) 2006-2009 01
021 CABLE, RR S/D I/S HDL (ЧАСТЬ OF 20) 2005-2010
022 RETAINER, RR S/D LK ROD (ЧАСТЬ OF 20) 2005-2010
023 25737316 ROD, RR S/D O/S HDL D29 2005-2010 01
023 25737317 ROD, RR S/D O/S HDL D29 2005-2010 01
024 25751819 ROD, RR S/D LKG (INCLS 25, 26) (EBONY) D29 (13I, 19I, 32I) 2005-2006 01
024 25751820 ROD, RR S/D LKG (INCLS 25, 26) (EBONY) D29 (13I, 19I, 32I) 2005-2006 01
025 10328154 SEAL, RR S/D I/S HDL (ЧАСТЬ OF 24) (10.565) DW, DX 2006-2006 02
026 15233953 KNOB, RR S/D LKG ROD (ЧАСТЬ OF 24) (EBONY) D29 2005-2010 02
