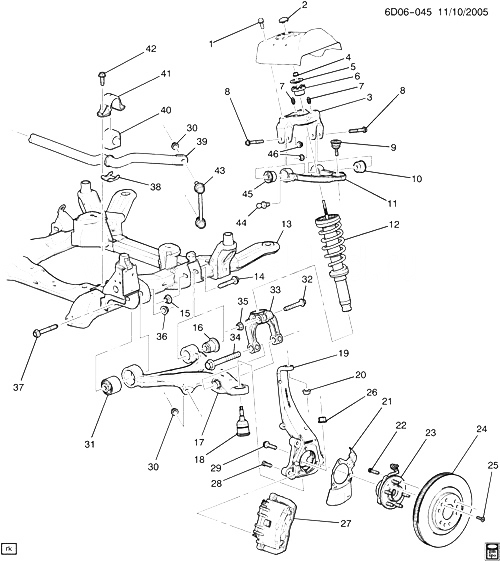

(6D06-045) - 2006 DX29 ПОДВЕСКА-ПЕРЕДНЯЯ CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11519393 БОЛТ, HEX W/CON ПРУЖИНА WA, M12X1.75X50, 35 OD, 42 THD, 10.9, 7114M (FRT S/ABS UPR BRKT) 2006-2006 10
002 25700262 PLUG, FRT S/ABS ACC HOLE DX29 2006-2006 02
003 19207759 BRACKET, FRT UPR CONT ARM (INCLS 6, 8-11, 44-46) DX29 (7LL) 2006-2006 01
003 19207760 BRACKET, FRT UPR CONT ARM (INCLS 6, 8-11, 44-46) DX29 (6LL) 2006-2006 01
004 ГАЙКА, FRT S/ABS (ЧАСТЬ OF 12) (*KIT1) 2006-2006
005 WASHER, FRT S/ABS (ЧАСТЬ OF 12) (*KIT1) 2006-2006
006 MOUNT, FRT SUSP STRUT (ЧАСТЬ OF 3) 2006-2006
007 LOCATOR, FRT SUSP STRUT UPR 2006-2006
008 11519961 БОЛТ, FRT UPR CONT ARM (БОЛТ, HEX FLNG HD (12X1.75X75) (PZOR 10.9) (ЧАСТЬ OF 3) (M12X1.75X75) (8.900) D 2006-2006 04
009 STUD, FRT UPR CONT ARM BALL (ЧАСТЬ OF 3) 2006-2006
010 BUSHING, FRT UPR CONT ARM (RR) (ЧАСТЬ OF 3) 2006-2006
011 ARM, FRT UPR CONT (ЧАСТЬ OF 3) 2006-2006
012 АМОРТИЗАТОР KIT, FRT SHK (СМ. ГРУППУ 06.000 STRUT ASM/FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 4, 5) 2006-2006
013 РАМА, DRIVETRAIN FRT SUSP (СМ. ГРУППУ 09.000 РАМА КРЕПЛЕНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2006-2006
014 11519151 БОЛТ, FRT LWR CONT ARM FRT (HFH, M14X2X110) (POINTED POINT) (7.039) D 2006-2006 02
015 03537773 ГАЙКА, FRT LWR CONT ARM FRT (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) DX 2006-2006 04
016 BUSHING, FRT LWR CONT ARM RR (ЧАСТЬ OF 17) 2006-2006
017 15829325 ARM, FRT LWR CONT (INCLS 16, 18, 31) DX 2006-2006 01
017 15921068 ARM, FRT LWR CONT (INCLS 16, 18, 31) (REPLACE IN PAIRS 2005 THRU 2007) D29 (M22, M82) 2006-2006 01
017 15921068 ARM, FRT LWR CONT (INCLS 16, 18, 31) (REPLACE IN PAIRS 2005 THRU 2007) DX 2006-2006 01
018 STUD, FRT LWR CONT ARM BALL (ЧАСТЬ OF 17) 2006-2006
019 89060203 KNUCKLE, STRG D29 (J56) 2006-2006 01
019 89060206 KNUCKLE, STRG D29 (J56) 2006-2006 01
020 11519879 ГАЙКА, FRT UPR CONT ARM BALL STUD (TO STRG ARM) (M12X1.75X16.75, 28 OD) (8.915) D29 2006-2006 02
021 89060204 SHIELD, FRT BRK (4.720) D29 (J56) 2006-2006 01
021 89060207 SHIELD, FRT BRK (4.720) D29 (J56) 2006-2006 01
022 STUD, FRT WHL (ЧАСТЬ OF 23) 2006-2006
023 15816313 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 22) (ACDelco #FW328) DX29 (J56) 2006-2006 02
024 25750248 ROTOR, FRT BRK (ACDelco #177-0965) D29 (J56) 2006-2006 02
025 11515720 БОЛТ, FRT BRK ROT (M6X1X20, 12.3 OD) (FLAT 6 LOBED) (14.5 THD) (8.908) D 2006-2006 02
026 11516382 ГАЙКА, S/KNU (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2006-2006 02
027 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2006-2006
028 18041878 БОЛТ, FRT BRK CLPR (M12X1.75X55) (W/O STEM ON TOP OF БОЛТ) (5.816) D29 (J56) 2006-2006 04
029 89060205 БОЛТ, FRT WHL HUB (M12X1.75X68.5, 20THD) D29 (J56) 2006-2006 06
030 11588357 ГАЙКА, FRT STAB SHF LINK (M12X1.75, 13.5 THK) (14.875) D29 2006-2006 04
031 BUSHING, FRT LWR CONT ARM (FRT) (ЧАСТЬ OF 17) 2006-2006
032 11609232 БОЛТ, HFH, M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (FRT S/ABS YOKE) 2006-2006 02
033 15281270 YOKE, FRT S/ABS DX 2006-2006 01
033 15281271 YOKE, FRT S/ABS DX 2006-2006 01
034 11589263 БОЛТ-HFH, M16X2X125, 38 THD, 35 OD, 10.9, GMW3359, HDR PT. (FRT LWR CONT ARM) 2006-2006 02
035 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (FRT S/ABS YOKE) 2006-2006 02
036 03537773 ГАЙКА, FRT LWR CONT ARM FRT (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) DX 2006-2006 02
037 11519149 БОЛТ, FRT LWR CONT ARM RR (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D 2006-2006 02
038 25750245 RETAINER, FRT STAB SHF INSL D29 2006-2006 02
039 25771335 SHAFT, FRT STAB DX29 2006-2006 01
040 25759231 INSULATOR, FRT STAB SHF DX29 2006-2006 02
041 10364742 CЛАМПА, FRT STAB SHF INSL DX 2006-2006 02
042 11515775 БОЛТ, HFH, M12X1.75X30, 10.9, 7114M (FRT STAB SHF INSL CLA) 2006-2006 04
043 15231140 LINK, FRT STAB SHF DX29 2006-2006 02
044 03532785 STUD, ELEK SUSP RR POSN SEN LINK BALL (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) D29 (FE3, F55) 2006-2006 01
044 03532785 STUD, ELEK SUSP RR POSN SEN LINK BALL (ЧАСТЬ OF 3) (M5X1.0X25.5) (BALL STYLE) D29 (TT7, TT8) (EXC F55) (EXPORT) 2006-2006 01
045 BUSHING, FRT UPR CONT ARM (FRT) (ЧАСТЬ OF 3) 2006-2006
046 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (ЧАСТЬ OF 3) (8.917) 2006-2006 04
K01 88952018 WASHER KIT, FRT S/ABS (INCLS 4, 5) (INCLS 2-WASHERS AND 1-NUT) DX 2006-2006 02
