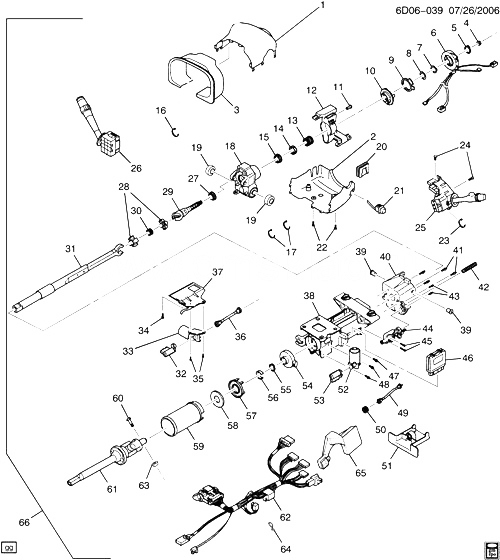

(6D06-039) - 2005-2010 D29 РУЛЕВАЯ КОЛОНКА CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26089791 COVER KIT, STRG COL TR (INCLS 2) (EBONY) D29 (NP5, 13I, 19I, NR7, N31) (EXC UA2) 2005-2006 01
001 88967182 COVER KIT, STRG COL TR (INCLS 2) (CASHMERE) (CONTAINS UPPER AND LOWER COVERS) D29 (NP5, T79, 32I) (EXC UA2) 2005-2006 01
001 88967182 COVER KIT, STRG COL TR (INCLS 2) (CASHMERE) (CONTAINS UPPER AND LOWER COVERS) D29 (NR7, N31, 32I) 2005-2006 01
002 COVER, STRG COL LWR TR (ЧАСТЬ OF 1) 2005-2010
003 89060608 SHROUD, STRG COL D29 2005-2007 01
004 11609659 ГАЙКА, HEX M14X1.5 PLAIN GRD 9 (STRG WHL) (8.917) 2005-2010 AR
005 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ RET) 2005-2010 01
006 89060610 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ KIT, INFL RST STRG WHL MDL D29 (NP5) 2005-2007 01
006 89060612 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ KIT, INFL RST STRG WHL MDL D29 (NR7, N31) 2005-2007 01
007 26011609 WASHER, STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ D 2005-2010 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) D29 2005-2009 01
009 26094187 PLATE, STRG SHF LK (W/SHIELD) D29 (UA2) 2005-2006 01
010 26097073 CAM, T/SIG SW CANC D29 (NR7, N31) 2005-2009 01
011 26069932 БОЛТ, STRG COL LWR TR CVR (M5.2X1.81X15.12) (2.188) D29 2005-2008 02
012 26094275 BRACKET, T/SIG SW D29 (EXC UA2) 2005-2010 01
013 26055299 ПРУЖИНА, STRG SHF UPR BRG D29 2005-2007 01
014 15231641 SEAT, STRG SHF UPR BRG RACE D29 2005-2007 01
015 RACE, STRG COL INR 2005-2010
016 89060609 STRAP, WRG HARN D (EXC T79, UA2) 2005-2008 01
017 89060609 STRAP, WRG HARN D29 (NP5, NR7) (EXC T79, UA2) 2005-2006 01
018 19152361 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NR7, N31, 32I) (EXC UA2) 2006-2006 01
018 19152361 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) DW, DX29 (NR7, N31, 13I, 19I, 67I) (EXC UA2) 2006-2006 01
018 19152362 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NR7, N31, 13I, 19I, 32I, 67I, UA2, T79) (EXPORT) 2006-2006 01
018 19152363 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NP5, T79, 13I, 19I, 32I, NR7) (EXC UA2) 2005-2006 01
018 19152364 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NP5, T79, UA2, 13I, 19I, 32I) 2005-2006 01
018 88964350 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NP5, T79, 13I, 19I) (EXC UA2) 2005-2006 01
018 89060611 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (A45, KA1) (EXC UA2) 2005-2006 01
018 89060613 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NP5, T79, UA2, 13I, 19I) 2005-2006 01
018 89060618 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D29 (NR7, N31, T79, UA2) 2005-2006 01
019 RETAINER, STRG SHF LWR BRG SEAL (ЧАСТЬ OF 18) 2005-2010
020 PROTECTOR, STRG COL LWR TR CVR 2005-2010
021 15946638 SWITCH, STRG COL TILT WHL TLSCP D29 (NP5, 13I, 19I, 32I, NR7) (EXC UA2) 2005-2006 01
022 26069932 БОЛТ, STRG COL LWR TR CVR (M5.2X1.81X15.12) (2.188) D 2005-2008 01
023 89060609 STRAP, WRG HARN D (EXC T79, UA2) 2005-2008 01
024 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (6.760) D29 2005-2008 02
025 01999391 SWITCH, T/SIG HDLP DIMR (W/CRUISE CONTROL) (2.895) (ACDelco #D6262C) DW29 (N31, 13I, 19I) (EXC T79, UA2) 2005-2009 01
025 01999391 SWITCH, T/SIG HDLP DIMR (W/CRUISE CONTROL) (ACDelco #D6262C) DW29 (EXC T79, UA2) 2005-2009 01
025 01999392 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL FUNCTIONS) (ACDelco #D6384D) D29 (T79) 2005-2010 01
026 01999309 SWITCH, WSW WSWA (ACDelco #D6377D) D29 2005-2009 01
027 26078225 BEARING, STRG COL TILT WHL ACTR D 2005-2007 02
028 26066321 SPHERE KIT, STRG SHF (USES ALUMINUM TUBULAR LWR SHAFT W/ALUMINUM YOKE) D29 2005-2006 01
029 26074286 SHAFT, UPR STRG D29 (EXC UA2) 2005-2007 01
029 26075655 SHAFT, UPR STRG DW29 (UA2) 2005-2007 01
030 26100228 ПРУЖИНА, STRG COL TILT D29 2005-2007 01
031 89060603 SHAFT, LWR STRG D29 2005-2007 01
032 89060599 SENSOR, STRG COL TILT WHL POSN D29 2005-2007 01
033 15231658 MOTOR, STRG COL TLSCP ACTR D29 2005-2007 01
034 26064459 БОЛТ, STRG COL TLSCP ACTR (M4.2X1.59X11.5) (W/WSHR-TORX HD) D29 2005-2008 02
035 26075085 БОЛТ, STRG COL TLSCP ACTR (M8X18X25) D29 2005-2008 02
036 26064544 CABLE, STRG COL TLSCP ACTR D29 2005-2007 01
037 89060600 BRACKET, STRG COL TILT WHL ACTR D29 (NP5, 13I, 19I) 2005-2006 01
037 89060600 BRACKET, STRG COL TILT WHL ACTR D29 (NR7, N31, 32I, 13I, 19I, 67I) 2006-2006 01
037 89060614 BRACKET, STRG COL TILT WHL ACTR D29 (NR7, NP5, T79, UA2, 13I, 19I, 32I, 67I) (EXC KA1) 2006-2006 01
038 26070093 JACKET, STRG COL (INCLS ADAP, BRG, SUPT, BRKT LWR, STRAP-ENGY ABS) D29 (NP5, T79) (EXC UA2) 2005-2006 01
039 26036521 PIN, STRG COL PIV D29 2005-2007 02
040 26078023 SUPPORT, STRG COL HSG (INCLS TILT ACTUATOR) (ПОЛ SHIFT APPLICATIONS) D29 (EXC UA2) 2005-2007 01
040 26078024 SUPPORT, STRG COL HSG (INCLS TILT ACTUATOR) (COLUMN SHIFT APPLICATIONS) D29 (EXC UA2) 2005-2007 01
040 26089798 SUPPORT, STRG COL HSG D29 (UA2) 2005-2007 01
041 26064458 БОЛТ, STRG COL HSG SUPT (M6X1.0X34) D 2005-2010 04
042 26100228 ПРУЖИНА, STRG COL TILT D29 2005-2007 01
043 26075085 БОЛТ, STRG COL TLSCP ACTR (M8X18X25) D29 2005-2008 02
044 89060596 ACTUATOR, STRG COL TLSCP D29 (NP5, 13I, 19I, 32I, NR7, N31) (EXC UA2) 2005-2006 01
045 26064459 БОЛТ, STRG COL TLSCP ACTR (M4.2X1.59X11.5) (W/WSHR-TORX HD) D 2005-2010 02
045 26075085 БОЛТ, STRG COL TLSCP ACTR (M8X18X25) D 2005-2010 02
045 26075531 БОЛТ, STRG COL TLSCP ACTR (M5X0.8X24) D 2005-2010 02
045 26098504 БОЛТ, STRG COL TLSCP ACTR (M6X1X18, 14THD, 11.75O) D 2005-2010 02
046 89060617 LOCK, STRG COL ELEK (6.760) D 2005-2007 01
047 26064459 БОЛТ, STRG COL TLSCP ACTR (M4.2X1.59X11.5) (W/WSHR-TORX HD) D29 2005-2008 02
048 26075531 БОЛТ, STRG COL TLSCP ACTR (M5X0.8X24) D29 2005-2008 02
049 26078026 CABLE, STRG COL TILT WHL ACTR D29 2005-2007 01
050 26081434 ПРУЖИНА, STRG COL TLSCP ACTR CBL (17.97MM LONG, 5.40MM I.D.) D29 2005-2007 01
051 26080058 COVER, STRG COL JKT LWR (SHIELD) D29 2005-2007 01
052 15231659 MOTOR, STRG COL TILT WHL ACTR (INCLS MOTOR, SENSOR, CABLE, BRKT, AND БОЛТS) (6.521) D29 2005-2007 01
053 89060602 SENSOR, STRG COL TLSCP POSN D29 2005-2007 01
054 15231656 SENSOR, STRG WHL POSN (BLACK) D29 2005-2008 01
055 26070027 RETAINER, STRG ANGLE SEN (27.82 ID, 1.27MM THK) (EXT SNAP) D29 2005-2010 01
056 ADAPTER, STRG ANGLE SEN 2005-2010
057 26075084 RETAINER, STRG SHF LWR BRG SEAL D29 2005-2007 01
058 26056695 SEAL, STRG SHF D29 2005-2008 01
059 26064593 SEAL, STRG COL BOOT D29 2005-2007 01
060 26058124 БОЛТ, S/GR CPLG (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) D29 2005-2007 01
061 15212408 SHAFT, UPR INTER STRG (6.524) D29 2005-2006 01
062 89060607 HARNESS, STRG COL WRG D29 (EXC UA2) 2005-2007 01
062 89060615 HARNESS, STRG COL WRG D29 (UA2) 2005-2007 01
063 11514597 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) D 2005-2007 01
064 89060606 CLIP, CONVOLUTED CDT D29 2005-2007 01
065 89060605 BRACKET, STRG COL TLSCP ACTR D 2005-2010 01
066 15894812 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NP5, T79, 32I) (EXC UA2) 2005-2006 01
066 15894814 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NR7, T79, 32I, N31) (EXC UA2) 2005-2006 01
066 15894815 COLUMN, STRG (INCLS 1-65) (EBONY) D29 (NR7, T79, UA2, N31, 13I, 19I, 67I) 2006-2006 01
066 15894816 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NR7, T79, UA2, N31, 32I) 2006-2006 01
066 15894817 COLUMN, STRG (INCLS 1-65) (EBONY) DW, DX29 (NR7, N31, 13I, 19I, 67I) (EXC T79, UA2) 2006-2007 01
066 15894818 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NR7, N31, 32I) (EXC T79, UA2) 2006-2006 01
066 15894820 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NP5, T79, UA2, 32I) 2005-2006 01
066 15894821 COLUMN, STRG (INCLS 1-65) (EBONY) D29 (NP5, 13I, 19I) (EXC T79, UA2) 2005-2006 01
066 15894822 COLUMN, STRG (INCLS 1-65) (CASHMERE) D29 (NP5, 32I) (EXC T79, UA2) 2005-2006 01
066 21997691 COLUMN, STRG (INCLS 1-65) (EBONY) (CODE 8544) D29 (NP5, T79, 13I, 19I) (EXC UA2) 2005-2006 01
066 21997693 COLUMN, STRG (INCLS 1-65) (EBONY) (CODE 8545) DW, DX29 (NR7, N31, T79, 13I, 19I, 31I) (EXC UA2) 2006-2006 01
066 21997699 COLUMN, STRG (INCLS 1-65) (EBONY) (CODE 8548) D29 (NP5, T79, UA2, 13I, 19I) 2005-2006 01
