| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88964161 |

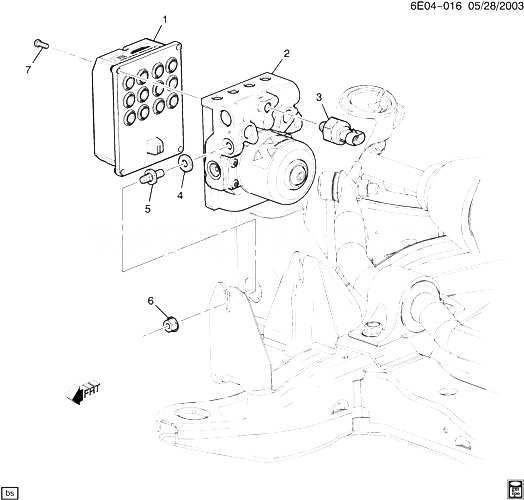

МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMNGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #88964161)
| DW29 (LH2, FE3, JE5, NV7, QAF, Q12) |
2005-2006 |
01 |
|
| 001 |
88964161 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMNGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #88964161)
| DW29 (LY7, NV7) |
2005-2006 |
01 |
|
| 001 |
88964161 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMNGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #88964161)
| DW29 (LH2, FE3, J56, QAF) |
2006-2007 |
01 |
|
| 001 |
88964161 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMNGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #88964161)
| DX29 |
2006-2008 |
01 |
|
| 001 |
89060336 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMINGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #89060336)
| DW29 (LH2, FE3) (EXC NV7) |
2005-2006 |
01 |
|
| 001 |
89060336 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMINGBRK APPLY SEN REQS CALIBREFER TO SERV INFO) (ACDelco #89060336)
| DW29 (FE1) (EXC NV7) |
2005-2007 |
01 |
|
| 002 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3) (ACDelco #89060233)
| DW29 (FE1, FE3) |
2005-2007 |
01 |
|
| 002 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3) (ACDelco #89060233)
| DX29 |
2006-2007 |
01 |
|
| 003 |
25743362 |
SENSOR, BRK PRESS MOD VLV PRESS (ЧАСТЬ OF 2) (ACDelco #25743362)
| D29 |
2005-2010 |
01 |
|
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV |
D29 |
2005-2008 |
01 |
| 005 |
11588304 |
STUD, FLANGE DOUBLE END, M8X14 UNTHD, M8X1.25X13, 17 OD, 5.8, GM4345M (BRK PRESS MOD VLV BRKT) |
|
2005-2010 |
02 |
| 006 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BRK PRESS MOD VLV BRKT) (8.915) (ACDelco #11514596) |
|
2005-2010 |
02 |
| 007 |
11508351 |
SCREW, PAN HD, C/R, 5X0.8X13, 9.3 OD, FULL THD, THD RLLR, 6171M, PC (BRK PRESS MOD VLV) (8.977) |
|
2005-2010 |
04 |
