| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
18047980 |

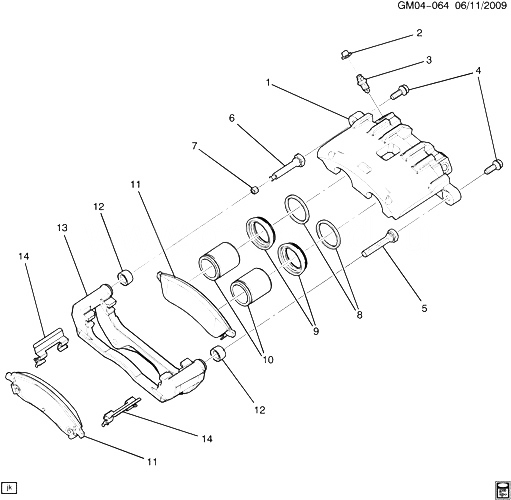

CALIPER, FRT BRK (INCLS 2-4, 8-10) (IF DISCONTINUED USE DURASTOP EQUIVALENT) (4.667) (ACDelco #172-1643)
| DW29 (JE5, MV3, MX5) |
2006-2006 |
01 |
|
| 001 |
18047980 |
CALIPER, FRT BRK (INCLS 2-4, 8-10) (IF DISCONTINUED USE DURASTOP EQUIVALENT) (4.667) (ACDelco #172-1643)
| DW29 (JE5, MX0) (EXC JE2) |
2006-2007 |
01 |
|
| 001 |
18047981 |
CALIPER, FRT BRK (INCLS 2-4, 8-10) (IF DISCONTINUED USE DURASTOP EQUIVALENT) (4.667) (ACDelco #172-1644)
| DW29 (JE5, MV3, MX5) |
2006-2006 |
01 |
|
| 001 |
18047981 |
CALIPER, FRT BRK (INCLS 2-4, 8-10) (IF DISCONTINUED USE DURASTOP EQUIVALENT) (4.667) (ACDelco #172-1644)
| DW29 (JE5, MX0) (EXC JE2) |
2006-2007 |
01 |
|
| 001 |
89027066 |
CALIPER, FRT BRK (INCLS 2-4, 8-10) |
DW29 (JE2, JE5, M22, M82) |
2006-2006 |
01 |
| 001 |
89027067 |
CALIPER, FRT BRK (INCLS 2-4, 8-10) |
DW29 (JE2, JE5, M22, M82) |
2006-2006 |
01 |
| 002 |
18043178 |
COVER, FRT BRK BLEDR SCREW (ЧАСТЬ OF 1) |
DW29 (JE5) |
2005-2008 |
02 |
| 003 |
18047986 |
VALVE KIT, FRT BRK CLPR BLEDR (ЧАСТЬ OF 1) (ACDelco #18047986) |
DW29 (JE5) |
2005-2008 |
02 |
| 004 |
18046750 |
БОЛТ, FRT BRK CLPR GDE PIN (ЧАСТЬ OF 1, 11) (*KIT2)
| DW29 (JE5) |
2005-2008 |
04 |
|
| 005 |
|
PIN, FRT BRK CLPR GDE (*KIT1) |
|
2005-2007 |
|
| 006 |
|
PIN, FRT BRK CLPR GDE (*KIT1) |
|
2005-2007 |
|
| 007 |
|
BUSHING, FRT BRK CLPR GDE PIN (*KIT1) |
|
2005-2007 |
|
| 008 |
|
SEAL, FRT BRK CLPR PSTN (ЧАСТЬ OF 1) (*KIT2) |
|
2005-2007 |
|
| 009 |
|
BOOT, FRT BRK CLPR PSTN (ЧАСТЬ OF 1) (*KIT2) |
|
2005-2007 |
|
| 010 |
18047985 |
PISTON KIT, FRT BRK CLPR (ЧАСТЬ OF 1) |
DW29 (JE5) |
2005-2008 |
04 |
| 011 |
19122384 |
PAD KIT, FRT DISC BRK (INCLS 4, 14) (ACDelco #171-688) |
DW29 (JE5, M22, M82) (EXC JE2) |
2006-2006 |
01 |
| 011 |
19122384 |
PAD KIT, FRT DISC BRK (INCLS 4, 14) (ACDelco #171-688) |
DW29 (JE5, MV3, MX5) |
2006-2006 |
01 |
| 011 |
88967243 |
PAD KIT, FRT DISC BRK (INCLS 4, 14) (ACDelco #171-0896)
| DW29 (JE2, JE5, M22, M82) |
2006-2006 |
01 |
|
| 012 |
18045221 |
SEAL, FRT BRK CLPR GDE PIN |
DW29 (JE5) |
2005-2008 |
04 |
| 013 |
18047987 |
BRACKET, FRT BRK CLPR (W/GUIDE PIN БОЛТS)
| DW29 (JE5) |
2005-2008 |
02 |
|
| 014 |
18046698 |
ПРУЖИНА, FRT DISC BRK PAD RET (ЧАСТЬ OF 11) (ACDelco #179-2235) |
DW29 (JE5) |
2005-2008 |
04 |
| K01 |
18047989 |
PIN KIT, FRT BRK CLPR GDE (INCLS 5-7) (INCLS 2 (2.5) БОЛТS) |
DW29 (JE5) |
2005-2008 |
02 |
| K02 |
18047984 |
CALIPER KIT, FRT BRK (INCLS 4, 8, 9) (4.667) (ACDelco #173-0538) |
DW29 (JE5) |
2005-2008 |
02 |
