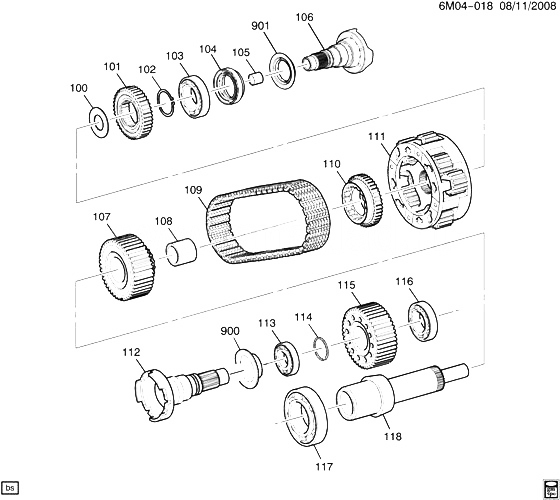

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
88984517 |
WASHER, TRFER CASE PLNT CARR SUN GR THR (ЧАСТЬ OF 106) (25.8X52.0X2.2) |
D29 |
2005-2007 |
01 |
| 101 |
88984524 |
GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) |
DW |
2005-2007 |
01 |
| 102 |
88984493 |
RING, TRFER CASE RR ВЫХОДНОЙ SHF RR BRG RET (41MM I.D.) (ACDelco #88984493) |
D29 |
2005-2007 |
01 |
| 103 |
88996564 |
BEARING, TRFER CASE FRT ВЫХОДНОЙ SHF DRV SPKT |
D29 |
2005-2007 |
01 |
| 104 |
88996665 |
BEARING, TRFER CASE MAIN SHF FRT (ВЫХОДНОЙ ВАЛ FRT) |
D29 |
2005-2007 |
01 |
| 105 |
19168733 |
BUSHING, TRFER CASE RR ВЫХОДНОЙ SHF (ЧАСТЬ OF 106)
| D29 |
2005-2007 |
01 |
|
| 106 |
19178237 |
SHAFT, TRFER CASE RR ВЫХОДНОЙ (INCLS 105, 901) |
D29 |
2005-2006 |
01 |
| 107 |
19133264 |
SPROCKET, TRFER CASE FRT ВЫХОДНОЙ SHF DRV (INCLS 108)
| D29 |
2005-2007 |
01 |
|
| 108 |
19168732 |
BUSHING, TRFER CASE FRT ВЫХОДНОЙ SHF DRV SPKT (ЧАСТЬ OF 107) (ACDelco #19168732) |
D29 |
2005-2007 |
01 |
| 109 |
89059578 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV
| D29 |
2005-2006 |
01 |
|
| 110 |
88984523 |
GEAR, TRFER CASE PLNT CARR SUN (ВЫХОДНОЙ) |
DW |
2005-2007 |
01 |
| 111 |
89059279 |
КРОНШТЕЙН, FRT/RR DRV DIFF |
D29 |
2005-2007 |
01 |
| 112 |
89059284 |
SHAFT, TRFER CASE FRT ВЫХОДНОЙ (INCLS 900) |
D29 |
2005-2007 |
01 |
| 113 |
88996664 |
BEARING, TRFER CASE FRT ВЫХОДНОЙ SHF RR |
D29 |
2005-2007 |
01 |
| 114 |
88996671 |
RING, TRFER CASE FRT ВЫХОДНОЙ SHF BRG RET |
D29 |
2005-2007 |
01 |
| 115 |
88996666 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN
| D29 |
2005-2007 |
01 |
|
| 116 |
|
BEARING, TRFER CASE RR ВЫХОДНОЙ SHF RR |
|
2005-2007 |
|
| 117 |
|
BEARING, TRFER CASE INPUT SHF |
|
2005-2007 |
|
| 118 |
19132966 |
SHAFT, TRFER CASE INPUT |
D29 |
2005-2006 |
01 |
| 900 |
|
DEFLECTOR, TRFER CASE FRT ВЫХОДНОЙ SHF SEAL DIRT (ЧАСТЬ OF 112) |
|
2005-2007 |
|
| 901 |
88996681 |
DEFLECTOR, TRFER CASE RR ВЫХОДНОЙ SHF SEAL DIRT (ЧАСТЬ OF 106) (5.555) |
D29 |
2005-2006 |
01 |
