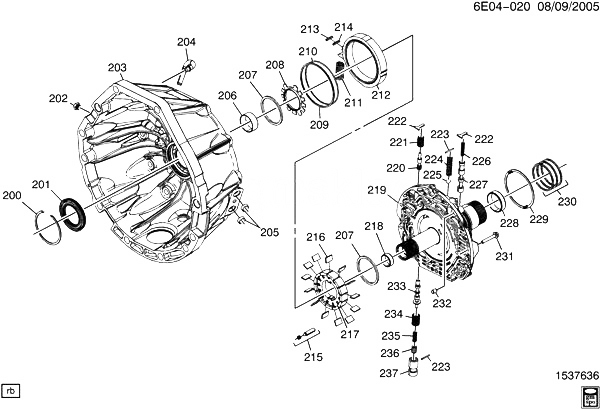

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
24218963 |
RING, T/CV FLUID SEAL RET
| D (MYC) |
2006-2007 |
01 |
|
| 201 |
24237531 |
SEAL, T/CV FLUID (ЧАСТЬ OF 217, 219) (ACDelco #24237531)
| D (MYC) |
2006-2009 |
01 |
|
| 202 |
08654382 |
PLUG, LINE PRESS TEST HOLE (ACDelco #8654382) |
DX (MYC) |
2006-2009 |
01 |
| 203 |
24236116 |
ШЛАНГИ, T/CV (MCHG) (INCLS 206) (ACDelco #24236116) |
DX (MYC) |
2006-2009 |
01 |
| 204 |
24231684 |
PIPE, A/TRNS VENT |
D (MYC) |
2006-2008 |
01 |
| 205 |
24237658 |
SEAL, TRANS FLUID CLR PIPE FTG (ЧАСТЬ OF 217, 219) (SEALS ONE PIPE) (*KIT1)
| DX29 (LC3, MYC) |
2006-2007 |
02 |
|
| 206 |
|
BUSHING, T/CV (ЧАСТЬ OF 203) |
|
2006-2009 |
|
| 207 |
|
RING, A/TRNS ГИДРОНАСОС VANE (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 208 |
|
GUIDE, A/TRNS ГИДРОНАСОС ROT (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 209 |
|
RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 210 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (ЧАСТЬ OF 217) (*KIT1) |
|
2006-2009 |
|
| 211 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС SLIDE OTR (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 212 |
24222668 |
SLIDE, A/TRNS ГИДРОНАСОС (17.948MM-17.961MM) (ACDelco #24222668) |
D (MYC) |
2006-2009 |
01 |
| 212 |
24224131 |
SLIDE, A/TRNS ГИДРОНАСОС (17.961MM-17.974MM) (ACDelco #24224131) |
D (MYC) |
2006-2009 |
01 |
| 212 |
24224132 |
SLIDE, A/TRNS ГИДРОНАСОС (17.974MM-17.987MM) (ACDelco #24224132) |
D (MYC) |
2006-2009 |
01 |
| 213 |
|
SEAL, A/TRNS ГИДРОНАСОС SLIDE (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 214 |
|
SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (ЧАСТЬ OF 217) (*KIT1) |
|
2006-2009 |
|
| 215 |
|
PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 216 |
|
VANE, A/TRNS ГИДРОНАСОС (ЧАСТЬ OF 217) |
|
2006-2009 |
|
| 217 |
24236935 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.948MM-17.961MM) (4.224) (ACDelco #24236935) |
D (MYC) |
2006-2008 |
01 |
| 217 |
24236936 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.961MM-17.974MM) (4.224) (ACDelco #24236936) |
D (MYC) |
2006-2008 |
01 |
| 217 |
24236937 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.974MM-17.987MM) (4.224) (ACDelco #24236937) |
D (MYC) |
2006-2008 |
01 |
| 218 |
|
BUSHING, TURB SHF FRT (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 219 |
24236939 |
COVER KIT, A/TRNS ГИДРОНАСОС (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 218, 220-230, 232-237) (ACDelco #24236939) (MUST USE T/W 24237185 FOR 2006 UNITS) |
D (MYC) |
2006-2006 |
01 |
| 220 |
|
VALVE, CONV FEED LIM (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 221 |
|
ПРУЖИНА, PRESS RLF BALL VLV (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 222 |
|
ПРУЖИНА, CONV FEED LIM VLV (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 223 |
|
PIN, PRESS RLF BALL VLV SPR (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 224 |
|
ПРУЖИНА, PRESS RLF BALL VLV (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 225 |
00147500 |
VALVE, PRESS RLF BALL (ЧАСТЬ OF 219) |
D (MYC) |
2006-2009 |
01 |
| 226 |
|
ПРУЖИНА, TCC C/VLV (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 227 |
|
VALVE, TCC CONT (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 228 |
|
BUSHING, TURB SHF RR (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 229 |
24224692 |
WASHER, 1-2-3-4 3-5 REV CLU HSG THR (ЧАСТЬ OF 219) |
D (MYC) |
2006-2009 |
01 |
| 230 |
24238248 |
RING, 1-2-3-4 3-5 REV CLU FLUID SEAL (ЧАСТЬ OF 217, 219) (*KIT1) |
D (MYC) |
2006-2007 |
03 |
| 231 |
24227061 |
БОЛТ, A/TRNS ГИДРОНАСОС CVR (ACDelco #24227061)
| D (MYC) |
2006-2009 |
13 |
|
| 233 |
|
VALVE, PRESS REG (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 234 |
|
ПРУЖИНА, PRESS REG VLV OTR (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 235 |
|
ПРУЖИНА, PRESS REG VLV INR (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 236 |
|
VALVE, ISOLATOR (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| 237 |
|
SLEEVE, ISOLATOR VLV (ЧАСТЬ OF 219) |
|
2006-2009 |
|
| K01 |
24236926 |
SEAL KIT, A/TRNS SERV (INCLS 205, 210, 214, 230) (ACDelco #24236926) |
D (MYC) |
2006-2007 |
01 |
