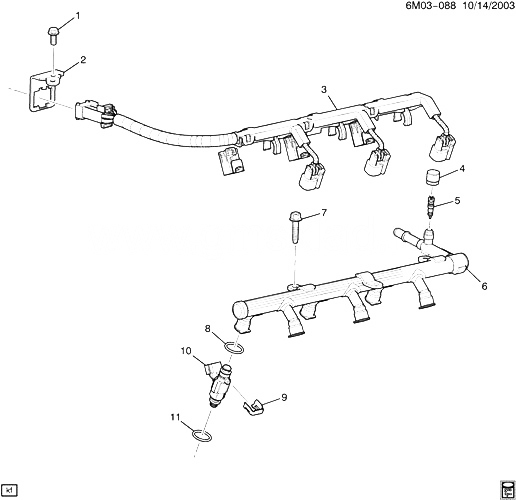

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (WRG HARN BRKT) |
|
2005-2007 |
01 |
| 002 |
|
BRACKET, F/INJR WRG HARN (ЧАСТЬ OF 3) |
|
2005-2007 |
|
| 003 |
12596182 |
HARNESS, F/INJR WRG (INCLS 2) (IF REPL 12584312 MAY NEED TO INSTALL BRACKET FROM HARNESS.) |
D (LY7) |
2005-2007 |
01 |
| 004 |
25532662 |
CAP, FUEL PRESS SERV VLV (CAP FOR PRESSURE TEST SCHRADER VALVE) (*KIT2) (3.163) (ACDelco #214-1044)
| D (LY7, MV1) |
2006-2007 |
01 |
|
| 004 |
25532662 |
CAP, FUEL PRESS SERV VLV (CAP FOR PRESSURE TEST SCHRADER VALVE) (*KIT2) (3.163) (ACDelco #214-1044)
| DW (LY7, MX5, M82) |
2006-2007 |
01 |
|
| 005 |
|
VALVE, FUEL PRESS SERV (ЧАСТЬ OF 6) (*KIT2) |
|
2005-2007 |
|
| 006 |
12572886 |
RAIL, F/INJN FUEL (INCLS 5, 9) (ACDelco #217-1551)
| D (LY7) |
2005-2007 |
01 |
|
| 007 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (F/INJN FUEL RL)
|
2005-2007 |
03 |
|
| 008 |
|
SEAL, F/INJR (O RING) (UPPER) (ЧАСТЬ OF 10) (*KIT1) |
|
2005-2007 |
|
| 009 |
|
CLIP, F/INJN FUEL RL (ЧАСТЬ OF 6) (*KIT3) |
|
2005-2007 |
|
| 010 |
12571159 |
INJECTOR, M/PORT FUEL (INCLS 8, 11) (ACDelco #217-1552)
| D (LY7) |
2005-2006 |
06 |
|
| 011 |
|
SEAL, F/INJN FUEL RL (O RING) (LOWER) (ЧАСТЬ OF 10) (*KIT1) |
|
2005-2007 |
|
| K01 |
12576479 |
SEAL KIT, M/PORT F/INJR (INCLS 8, 11) (ACDelco #217-1541)
| D (LP1, LY7) |
2005-2006 |
01 |
|
| K02 |
12584592 |
VALVE KIT, FUEL PRESS SERV (INCLS 4, 5) (INCLUDES CAP AND VALVE) (ACDelco #12584592)
| D (LC3, LP1, LY7) |
2006-2006 |
01 |
|
| K03 |
12584591 |
RETAINER KIT, F/INJR (INCLS 9) (ACDelco #12584591)
| D (LY7) |
2005-2007 |
01 |
|
