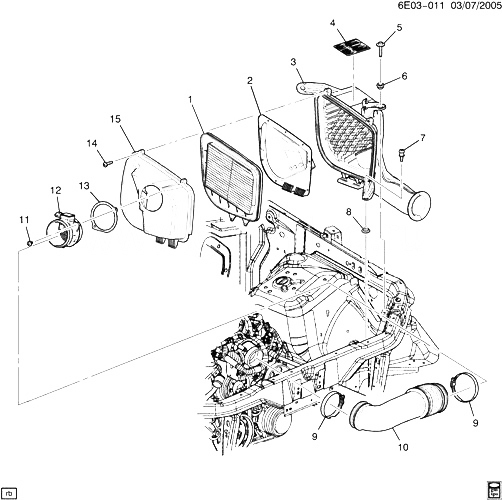

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25798271 |
ELEMENT, КОНДИЦИОНЕРL (ACDelco #A2944C)
| D29 (LH2, LY7) |
2005-2006 |
01 |
|
| 002 |
|
SHIELD, FRT INT AIR DUCT SPH |
|
2005-2006 |
|
| 003 |
15147452 |
ШЛАНГИ, КОНДИЦИОНЕРL (INCLS 4, 6, 8)
| D29 (LY7) |
2005-2006 |
01 |
|
| 003 |
15147457 |
ШЛАНГИ, КОНДИЦИОНЕРL (INCLS 4, 6, 8)
| D29 (LH2) |
2005-2006 |
01 |
|
| 004 |
|
LABEL, КОНДИЦИОНЕР REFRIG CHRG (ЧАСТЬ OF 3) |
|
2005-2006 |
|
| 005 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (КОНДИЦИОНЕРL) |
|
2005-2006 |
02 |
| 006 |
15147458 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 3) (BEC MOUNT TO TIE BAR) |
D29 (LH2) |
2005-2006 |
01 |
| 006 |
15147458 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 3) (BEC MOUNT TO TIE BAR) |
D29 (LY7) |
2005-2006 |
01 |
| 007 |
11561910 |
БОЛТ, КОНДИЦИОНЕРL (M6X1.0X24) (T30 TORQ) (SHLDR W/FL WA) |
D |
2006-2006 |
01 |
| 008 |
15147460 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 3) (MOUNT TO SHOCK TOWER) |
D29 (LH2) |
2005-2006 |
01 |
| 008 |
15147460 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 3) (MOUNT TO SHOCK TOWER) |
D29 (LY7) |
2005-2006 |
01 |
| 009 |
|
CЛАМПА, КОНДИЦИОНЕРL OTLT DUCT (ЧАСТЬ OF 10) |
|
2005-2006 |
|
| 010 |
25733251 |
DUCT, RR INT AIR (INCLS 9) |
D (LY7) |
2005-2006 |
01 |
| 010 |
25744215 |
DUCT, RR INT AIR (INCLS 9)
| D29 (LH2) |
2005-2006 |
01 |
|
| 011 |
88967332 |
БОЛТ, MASS AIRFLOW SEN (ЧАСТЬ OF 12) (30.7MM) (3.403) |
D (LP1, LY7) |
2006-2006 |
02 |
| 012 |
12566846 |
SENSOR, MASS AIRFLOW (INCLS 11) (ACDelco #213-1593)
| D29 (LY7) |
2005-2006 |
01 |
|
| 012 |
12567377 |
SENSOR, MASS AIRFLOW (INCLS 11) (ACDelco #213-1594)
| D29 (LH2) |
2005-2006 |
01 |
|
| 013 |
15147461 |
GASKET, MASS AIRFLOW SEN (ROUND) |
D29 (LH2) |
2005-2006 |
01 |
| 014 |
25314060 |
БОЛТ, M6X1X30, 11 THD, 12.5 OD, 4.8, 6047M, P-PT (КОНДИЦИОНЕРL HSG CVR) |
|
2005-2006 |
02 |
| 015 |
15147455 |
COVER, КОНДИЦИОНЕРL HSG
| DW29 (LY7) |
2005-2006 |
01 |
|
| 015 |
15147459 |
COVER, КОНДИЦИОНЕРL HSG
| D29 (LH2) |
2005-2006 |
01 |
|
