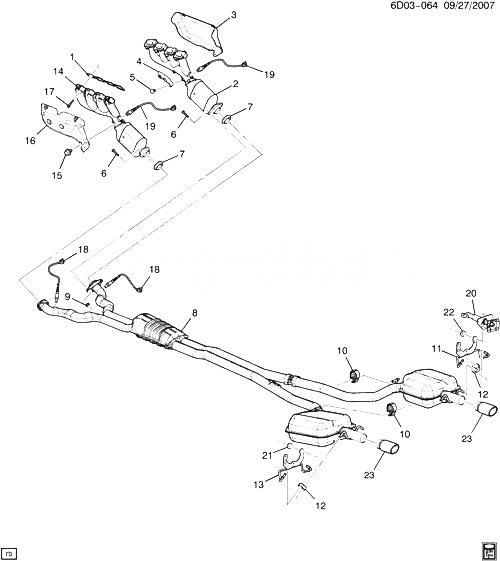

(6D03-064) - 2005-2007 DW29 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ (LH2/4.6A) CADILLAC - STS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12567655 GASKET, EXH MANIF D (LH2) 2005-2007 02
002 12567688 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 4-7) D (LH2) 2005-2006 01
002 12567688 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS 4-7) (3.601) D (LH2) 2005-2006 01
003 12576372 SHIELD, EXH MANIF HT D (LH2) 2005-2007 01
004 12568289 SHIELD, EXH MANIF LWR HT (ЧАСТЬ OF 2) D (LH2) 2005-2007 01
005 10229247 RIVET, EXH MANIF H/SHLD (ЧАСТЬ OF 2) (3.601) D (LH2) 2005-2007 02
006 11609596 STUD, CTLTC CONV (ЧАСТЬ OF 2, 14) D (LP1, LY7, LH2) 2005-2007 04
007 25709703 SEAL, CTLTC CONV (ЧАСТЬ OF 2, 14) (ROUND METAL SEAL) D 2005-2007 01
008 15290903 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 23) (CODE 0903) D29 (LH2) 2005-2006 01
008 15290903 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 23) (CODE 0903) (3.701) D29 (LH2) 2005-2006 01
008 15290903 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 23) (CODE 0903) (3.701) D29 (LH2) 2005-2006 01
009 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (EXH MUFF) 2005-2007 04
010 25711603 INSULATOR, EXH MUFF HNGR BRKT D 2005-2007 AR
011 15240254 BRACKET, EXH TAIL PIPE HNGR (INCLS 12) D29 2005-2007 01
012 15284207 INSULATOR, EXH TAIL PIPE HNGR (ЧАСТЬ OF 11, 13) D29 2006-2007 04
013 25902027 BRACKET, EXH TAIL PIPE HNGR (INCLS 12) D29 2005-2006 01
014 12567687 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INLCS 6, 7) D (LH2) 2005-2006 01
014 12567687 MANIFOLD, EXH (W/3WAY CTLTC CONV) (INLCS 6, 7) (3.601) D (LH2) 2005-2006 01
015 24505098 БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (EXH MANIF H/SHLD) 2005-2007 06
016 12607338 SHIELD, EXH MANIF HT D (LH2) 2005-2007 01
017 11519171 БОЛТ, EXH MANIF CLA (M8X1.25X50) (3.275) D (LH2) 2005-2007 12
018 12590035 SENSOR, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-2823) D (LH2, LP1, LY7) 2005-2006 02
019 12575657 SENSOR, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-1572) D29 (LH2) 2006-2006 02
019 12597912 SENSOR, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3863) D (LH2) 2006-2006 01
020 15243700 АМОРТИЗАТОР, RR BPR ENGY (СМ. ГРУППУ 07.000 БАМПЕР ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (METAL E.A. UNIT) D29 2005-2007 01
020 25764183 АМОРТИЗАТОР, RR BPR ENGY (СМ. ГРУППУ 07.000 БАМПЕР ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (METAL E.A. UNIT) D29 2005-2007 01
021 11517397 ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (RR BPR ENGY ABS) 2005-2007 06
022 11609344 ГАЙКА, STAMP SPECIAL БОЛТ RETAINER, 35.0X17.42X2.50, SAE 1050-1065 SPR STL, GM7111M (PUSH ON) 2005-2007 02
023 15251184 PIPE, EXH TAIL (ЧАСТЬ OF 8) (3.701) D29 (LH2) 2005-2007 02
