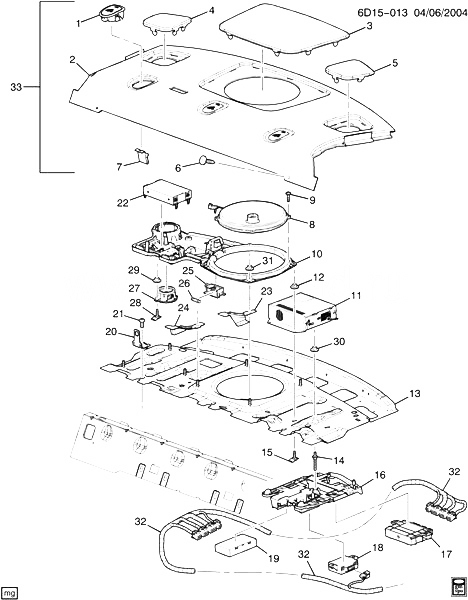

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25725070 |
COVER, CHILD ST TOP STRP BRKT ACC HOLE (ЧАСТЬ OF 33) (EBONY) |
D (19I) |
2005-2006 |
03 |
| 001 |
25727619 |
COVER, CHILD ST TOP STRP BRKT ACC HOLE (ЧАСТЬ OF 33) (GRAY) |
D29 (13I) |
2005-2009 |
03 |
| 001 |
89023835 |
COVER, CHILD ST TOP STRP BRKT ACC HOLE (ЧАСТЬ OF 33) (CASHMERE) |
DW (32I) |
2005-2009 |
03 |
| 002 |
|
TRIM, R/WDO PNL (ЧАСТЬ OF 33) |
|
2005-2010 |
|
| 003 |
89023824 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (CASHMERE) (CTR) |
D29 (UY5, 32I) |
2005-2006 |
01 |
| 003 |
89023825 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (GRAY) (CTR) |
D29 (13I) |
2005-2009 |
01 |
| 003 |
89023826 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (EBONY) (CTR) |
D29 (UY5, UX8, 19I) |
2005-2005 |
01 |
| 004 |
89023828 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (CASHMERE) |
D (UY5, 32I) |
2005-2006 |
01 |
| 004 |
89023829 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (GRAY) |
D29 (UY5, 13I) |
2005-2009 |
01 |
| 004 |
89023830 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (EBONY) |
D29 (UY5, 19I) |
2005-2005 |
01 |
| 005 |
89023832 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (CASHMERE) |
D29 (UY5, 32I) |
2005-2007 |
01 |
| 005 |
89023833 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (GRAY) |
D29 (UY5, 13I) |
2005-2007 |
01 |
| 005 |
89023834 |
GRILLE, RDO RR SPKR (ЧАСТЬ OF 33) (EBONY) |
D29 (UY5, 19I) |
2005-2005 |
01 |
| 006 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (R/WDO PNL TR)
|
2005-2010 |
02 |
|
| 007 |
89023836 |
RETAINER, CHILD ST TO STRP BRKT ACC HOLE CVR (ЧАСТЬ OF 33) |
D29 |
2005-2009 |
03 |
| 008 |
25725734 |
SPEAKER, RDO RR (W/ RR RDO SPKR VEH LOC ANT) (ACDelco #25725734) |
D29 (UX8, YQ1, YQ2) |
2005-2009 |
01 |
| 008 |
25725735 |
SPEAKER, RDO RR (W/ RR RDO SPKR VEH LOC ANT) (ACDelco #25725735) |
D29 (UY5) |
2005-2009 |
01 |
| 009 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) |
|
2005-2010 |
04 |
| 010 |
25740599 |
КРОНШТЕЙН, RR BODY CONT MDL (W/RR RDO SPKR VEH LOC ANT) |
D29 |
2005-2005 |
01 |
| 011 |
25726568 |
TUNER, TV (ACDelco #25726568) (LABELED 25726568) |
D29 (YQ6, YQ7) |
2005-2007 |
01 |
| 012 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (COMMUNICATION INTERFACE MDL) |
|
2005-2010 |
02 |
| 013 |
25719291 |
PANEL, R/WDO (INCLS 23, 24) |
D29 |
2005-2010 |
01 |
| 014 |
11519007 |
БОЛТ, M/FUNC ACSRY BRKT (ЧАСТЬ OF 16) |
D29 |
2005-2005 |
01 |
| 015 |
11517641 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (TV TUNER DIGITAL RDO RCVR BRKT) |
|
2005-2010 |
02 |
| 016 |
15253256 |
BRACKET, R/WDO PNL SUPT (INCLS 14) (2.483) |
D29 |
2005-2007 |
01 |
| 017 |
15779423 |
RECEIVER, R/CON DR LK THEFT DTRNT (*DOMESTIC/ASIA ECU ЧАСТЬ*) (10.485) (LABELED WITH OEM PN 15779423) |
D29 (EXC AU8) |
2005-2006 |
01 |
| 017 |
15779423 |
RECEIVER, R/CON DR LK THEFT DTRNT (*DOMESTIC/ASIA ECU ЧАСТЬ*) (LABELED WITH OEM PN 15779423) |
D29 (EXC AU8) |
2005-2006 |
01 |
| 017 |
15783538 |
RECEIVER, R/CON DR LK THEFT DTRNT (W/REMOTE START PERSONALIZATION #2*) (10.485) |
D29 (AU8) |
2005-2007 |
01 |
| 017 |
15783538 |
RECEIVER, R/CON DR LK THEFT DTRNT (W/REMOTE START PERSONALIZATION #2*) |
D29 (AU8) |
2005-2007 |
01 |
| 018 |
25743840 |
МОДУЛЬ, RR OBJECT ALARM
| D29 |
2005-2005 |
01 |
|
| 019 |
15804335 |
МОДУЛЬ, BODY CONT (STAMPED 15216622) (LABELED 15804335) (ACDelco #15804335)
| DW29 |
2005-2006 |
01 |
|
| 019 |
15804335 |
МОДУЛЬ, BODY CONT (STAMPED 15216622) (LABELED 15804335) (2.560) (ACDelco #15804335)
| DW29 |
2005-2006 |
01 |
|
| 020 |
25767579 |
BRACKET, CHILD ST TOP STRP (INCLS 21) |
D |
2005-2010 |
03 |
| 021 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (ЧАСТЬ OF 20) |
|
2005-2010 |
03 |
| 022 |
|
RECEIVER, TRAFFIC INFO |
|
2005-2010 |
|
| 023 |
|
BRACE, R/WDO PNL (ЧАСТЬ OF 13) |
|
2005-2010 |
|
| 024 |
|
BRACE, R/WDO PNL (ЧАСТЬ OF 13) |
|
2005-2010 |
|
| 025 |
25635368 |
ЛАМПА, R/CMPT CTSY (INCLS 26) (12 CP BULB) (9431808) |
D |
2005-2009 |
01 |
| 026 |
09431808 |
BULB, TRADE # 211-2 (ЧАСТЬ OF 25) (ACDelco #L211-2) |
|
2005-2010 |
01 |
| 027 |
25798962 |
SPEAKER, RDO RR (ACDelco #25798962) |
D29 (UY5) |
2005-2007 |
01 |
| 028 |
11517641 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (COMMUNICATION INTERFACE MDL) |
|
2005-2010 |
01 |
| 029 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RDO RR SPKR)
|
2005-2010 |
01 |
|
| 030 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (M/FUNC ACSRY BRKT)
|
2005-2010 |
01 |
|
| 031 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (MULTIUSE MDL BRKT)
|
2005-2010 |
08 |
|
| 032 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2005-2010 |
|
| 033 |
25768916 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (CASHMERE) (INCLS RR SEAL) |
DW (UY5, 32I) |
2005-2006 |
01 |
| 033 |
25768917 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (GRAY) (INCLS RR SEAL) |
DW (UY5, 13I) |
2005-2005 |
01 |
| 033 |
25768918 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (EBONY) (INCLS RR SEAL) |
DW (UY5, 19I) |
2005-2005 |
01 |
| 033 |
25768919 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (CASHMERE) (INCLS RR SEAL) |
DW (UX8, 32I) |
2005-2006 |
01 |
| 033 |
25768920 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (GRAY) (INCLS RR SEAL) |
DW (UX8, 13I) |
2005-2005 |
01 |
| 033 |
25768921 |
TRIM, R/WDO PNL (INCLS 1-5, 7) (EBONY) (INCLS RR SEAL) |
DW (UX8, 19I) |
2005-2005 |
01 |
