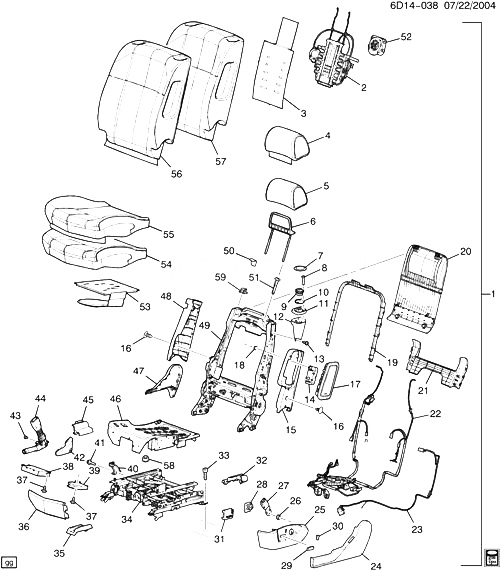

(6D14-038) - 2005-2009 DW,DY29 СИДЕНЬЕ В СБОРЕ/DRIVER (VENTED/HEATED KB6) CADILLAC - STS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) 2005-2006
002 88992732 LUMBAR SUB, D/SEAT (INCLS MOTORS) D29 2005-2010 01
003 19124085 ПОДОГРЕВАТЕЛЬ, D/SEAT BK CUSH DW (KB6) (EXC KA1) 2005-2010 01
004 88992718 COVER, D/SEAT H/RST (EBONY) DW (192) 2005-2006 01
004 88992719 COVER, D/SEAT H/RST (CASHMERE) DW (322) 2005-2006 01
004 88992720 COVER, D/SEAT H/RST (GRAY) DW (132) 2005-2006 01
004 88995098 COVER, D/SEAT H/RST (CASHMERE) DW (323) 2005-2006 01
004 88995099 COVER, D/SEAT H/RST (EBONY) DW (193) 2005-2006 01
004 88995270 COVER, D/SEAT H/RST (GRAY) DW (133) 2005-2009 01
005 88952658 PAD, D/SEAT H/RST D29 2005-2010 01
006 88897670 SUPPORT, D/SEAT H/RST D 2005-2007 01
007 GRILLE, D/SEAT H/RST SPKR 2005-2010
007 88994025 GRILLE, D/SEAT H/RST SPKR (LT. GREY) D29 (132, 133) 2005-2008 02
007 88994026 GRILLE, D/SEAT H/RST SPKR (EBONY) DW29 (192, 193) 2005-2009 02
007 88994027 GRILLE, D/SEAT H/RST SPKR (CASHMERE) DW29 (322, 323) 2005-2009 02
007 88994027 GRILLE, D/SEAT H/RST SPKR (CASHMERE) DW29 (AL2, AQ9, A45, KB6, UY5, 393) (EXC AX4, KA1) 2005-2009 02
008 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (D/SEAT) 2005-2010 01
009 25725730 SPEAKER, RDO FRT S/D (ACDelco #25725730) D29 (UY5) 2005-2007 01
009 25725731 SPEAKER, RDO FRT S/D (ACDelco #25725731) D29 (UY5) 2005-2007 01
009 25725739 SPEAKER, RDO FRT S/D (ACDelco #25725739) D29 (UX8) 2005-2007 01
009 25752204 SPEAKER, RDO FRT S/D (ACDelco #25752204) D29 (UX8) 2005-2007 01
010 SUPPORT, D/SEAT H/RST SPKR HSG 2005-2010
010 88992600 SUPPORT, D/SEAT H/RST SPKR HSG DW29 2005-2009 02
011 88992595 ШЛАНГИ, D/SEAT H/RST SPKR DW29 (AL2, AQ9, A45, IL3, KB6, UY5) (EXC AX4, KA1) 2005-2009 01
011 88992596 ШЛАНГИ, D/SEAT H/RST SPKR (UPPER) DW29 (AL2, AQ9, A45, KA1) 2005-2008 01
012 88992597 ШЛАНГИ, D/SEAT H/RST SPKR (LOWER) DW29 (AL2, AQ9, A45) (EXC KA1) 2005-2008 01
013 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (D/SEAT) 2005-2010 02
014 88993161 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2005-2010 01
014 88993162 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2005-2010 01
015 88992019 PANEL, D/SEAT BK CUSH FIN (FILLER) (OUTBOARD) DW 2005-2005 01
016 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK CUSH FIN PNL (PUSH IN)) 2005-2010 07
017 25760565 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DW (13I) 2005-2005 01
017 25760566 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DW (19I) 2005-2005 01
017 25770399 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) DW (31I, 32I) 2005-2005 01
018 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (INFL RST D/SEAT SI MDL) 2005-2010 06
019 88993281 RETAINER, D/SEAT BK CUSH FIN PNL (TRIM RING) (14.924) DW 2005-2010 01
020 88993967 PANEL, D/SEAT BK CUSH FIN (GRAY) DW (132) 2005-2006 01
020 88993968 PANEL, D/SEAT BK CUSH FIN (EBONY) DW (192) 2005-2006 01
020 88993969 PANEL, D/SEAT BK CUSH FIN (CASHMERE) DW (322) 2005-2006 01
020 88995213 PANEL, D/SEAT BK CUSH FIN (CASHMERE) DW (323) 2005-2006 01
020 88995214 PANEL, D/SEAT BK CUSH FIN (EBONY) DW (193) 2005-2006 01
020 88995265 PANEL, D/SEAT BK CUSH FIN (GRAY) DW (133) 2005-2009 01
021 88994001 COVER, D/SEAT INR ADJR RR FIN (GRAY) DW (13I) 2005-2005 01
021 88994002 COVER, D/SEAT INR ADJR RR FIN (EBONY) DW (19I) 2005-2006 01
021 88994003 COVER, D/SEAT INR ADJR RR FIN (CASHMERE) DW (31I) 2005-2005 01
021 88994003 COVER, D/SEAT INR ADJR RR FIN (CASHMERE) DW (32I) 2005-2006 01
022 88992754 HARNESS, D/SEAT WRG (W/LUMBAR/MEMORY/HEATCOOL/BOSE) DW29 (AL2, AQ9, A45, KB6, UY5) (EXC KA1) 2005-2010 01
023 15218855 HARNESS, INFL RST WRG D29 (IL2) 2005-2005 02
023 15218855 HARNESS, INFL RST WRG D29 (IL3) 2005-2005 02
023 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DW29 (AL2, AQ9, A45, IL3, KB6, UY5) (EXC KA1) 2005-2005 01
024 88993983 COVER, D/SEAT RECL FIN (GRAY) (OUTBOARD) DW (13I) 2005-2005 01
024 88993984 COVER, D/SEAT RECL FIN (EBONY) (OUTBOARD) DW (19I) 2005-2006 01
024 88993985 COVER, D/SEAT RECL FIN (CASHMERE) (OUTBOARD) DW (32I) 2005-2006 01
025 88993971 BEZEL, D/SEAT ADJR SW (GRAY) DW (AL2, 13I) 2005-2009 01
025 88993972 BEZEL, D/SEAT ADJR SW (EBONY) DW (AL2, 19I) 2005-2006 01
025 88993973 BEZEL, D/SEAT ADJR SW (CASHMERE) DW (AL2, 32I) 2005-2006 01
025 88993977 BEZEL, D/SEAT ADJR SW (GRAY) DW (13I) (EXC AL2) 2005-2009 01
025 88994854 BEZEL, D/SEAT ADJR SW (EBONY) DW (19I) (EXC AL2) 2005-2009 01
025 88994855 BEZEL, D/SEAT ADJR SW (CASHMERE) DW (32I) (EXC AL2) 2005-2009 01
026 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT BELT (RETR SI)) 2005-2010 04
027 25742613 PLATE, D/SEAT BELT ANC (RETR SI) D29 2005-2010 01
028 25745585 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DW (32I) 2005-2006 01
028 25752513 SWITCH, P/SEAT LUMBAR CONT (GRAY) D29 (13I) 2005-2008 01
028 25770400 SWITCH, P/SEAT LUMBAR CONT (EBONY) (USED W/4-WAY PWR LUMBAR) D29 (19I) 2005-2006 01
029 12451443 KNOB, D/SEAT ADJR SW (EBONY) (11.588) D29 (19I) 2005-2005 01
029 25752512 KNOB, D/SEAT ADJR SW (GRAY) D29 (13I) 2005-2006 01
029 25770402 KNOB, D/SEAT ADJR SW (CASHMERE) DW (32I) 2005-2006 01
030 25752511 KNOB, D/SEAT RECL LVR (GRAY) D29 (13I) 2005-2009 01
030 25770401 KNOB, D/SEAT RECL LVR (CASHMERE) DW (32I) 2005-2006 01
030 89043626 KNOB, D/SEAT RECL LVR (EBONY) (11.588) D29 (192) 2005-2005 01
031 89043625 SWITCH, D/SEAT ADJR RECL (8-WAY W/O KNOBS/BUTTONS, ADJR RECL) (11.588) D29 2005-2010 01
032 88994013 COVER, D/SEAT OTR ADJR RR FIN (GRAY) (ПОЛ) DW (13I) 2005-2005 01
032 88994014 COVER, D/SEAT OTR ADJR RR FIN (EBONY) (ПОЛ) DW (19I) 2005-2009 01
032 88994015 COVER, D/SEAT OTR ADJR RR FIN (CASHMERE) (ПОЛ) D29 (32I) 2005-2006 01
033 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (D/SEAT ADJR (W/BELT)) (8.907) 2005-2010 02
034 88992727 ADJUSTER, D/SEAT DW (EXC A45) 2005-2010 01
035 88994009 COVER, D/SEAT ADJR FIN (CASHMERE) (ПОЛ) (RR) DW (31I) 2005-2005 01
035 88994009 COVER, D/SEAT ADJR FIN (CASHMERE) (ПОЛ) (RR) DW (32I) 2005-2006 01
035 88996369 COVER, D/SEAT ADJR FIN (CASHMERE) (ПОЛ) (FRT) DW (31I) 2005-2005 01
035 88996369 COVER, D/SEAT ADJR FIN (CASHMERE) (ПОЛ) (FRT) DW (32I) 2005-2006 01
036 88993995 COVER, D/SEAT CUSH FRT (GRAY) (11.573) DW (132, 133) 2005-2009 01
036 88993996 COVER, D/SEAT CUSH FRT (EBONY) (11.573) DW (192, 193) 2005-2006 01
036 88993997 COVER, D/SEAT CUSH FRT (CASHMERE) (11.573) DW (322, 323) 2005-2006 01
037 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2005-2010 05
038 15870719 МОДУЛЬ, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) (11.558) D29 2005-2010 01
038 15870719 МОДУЛЬ, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) D29 2005-2010 01
039 88993047 ВЕНТИЛЯТОР, D/SEAT CUSH VENTILATION HEAT COOL DW (KB6) 2005-2010 01
040 88994341 BRACKET, D/SEAT RECL FIN CVR DW 2005-2010 01
041 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (D/SEAT RECL FIN CVR BRKT) 2005-2010 01
042 88994291 COVER, D/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (32I) 2005-2006 01
042 88994295 COVER, D/SEAT BELT OPG TR (RETR SI) (GRAY) DW (13I) 2005-2006 01
042 88994297 COVER, D/SEAT BELT OPG TR (RETR SI) (EBONY) DW (19I) 2005-2006 01
043 11517781 NUT-HEX SPL, M10X1.5X20.2, 9, 4345M, 6175M (D/SEAT BELT TR CVR) 2005-2010 01
044 10367774 BELT, D/SEAT (BKL SI) (EBONY) DW (AX4, 192, 193) (EXPORT) 2005-2005 01
044 25770138 BELT, D/SEAT (BKL SI) (GRAY) DW (AQ9, AX4, 13I) (EXC KA1) (EXPORT) 2005-2005 01
044 25770139 BELT, D/SEAT (BKL SI) (CASHMERE) DW (AQ9, AX4, 32I) (EXPORT) 2005-2005 01
044 89024409 BELT KIT, D/SEAT (BKL SI) (CASHMERE) DW (32I) (EXC AX4) 2005-2009 01
044 89024410 BELT KIT, D/SEAT (BKL SI) (GRAY) DW (13I) 2005-2009 01
044 89024411 BELT KIT, D/SEAT (BKL SI) (EBONY) DW (19I) 2005-2009 01
045 88994007 COVER, D/SEAT INR ADJR LWR RR FIN (GRAY) (ПОЛ) (КРАСКА TO MATCH) DW (13I) 2005-2005 01
045 88994008 COVER, D/SEAT INR ADJR LWR RR FIN (EBONY) (ПОЛ) DW (19I) 2005-2006 01
046 88952675 РАМА, D/SEAT CUSH DW 2005-2010 01
047 88993989 COVER, D/SEAT RECL FIN (GRAY) (INBOARD) DW (13I) 2005-2005 01
047 88993991 COVER, D/SEAT RECL FIN (CASHMERE) (INBOARD) DW (32I) 2005-2006 01
048 88992767 PANEL, D/SEAT BK CUSH FIN (FILLER) (INBOARD) DW 2005-2005 01
049 88994920 РАМА, D/SEAT BK CUSH (W/O MEMORY) (INCLS RECL MOTOR) DW 2005-2010 01
049 88994922 РАМА, D/SEAT BK CUSH (W/MEMORY) (INCLS RECL MOTOR) DW 2005-2010 01
050 88994323 CAP, D/SEAT H/RST GDE DW 2005-2010 01
050 88994324 CAP, D/SEAT H/RST GDE DW 2005-2010 01
051 88994608 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (13I) 2005-2009 01
051 88994609 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (32I) 2005-2006 01
051 88994610 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) (11.625) D29 (19I) 2005-2005 01
051 88994611 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (13I) 2005-2009 01
051 88994612 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (32I) 2005-2006 01
051 88994613 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) (11.625) D29 (19I) 2005-2005 01
052 88993048 ВЕНТИЛЯТОР, D/SEAT BACK VENTILATION HEAT COOL DW (KB6) 2005-2010 01
053 88993044 ПОДОГРЕВАТЕЛЬ, D/SEAT CUSH (AIR FLOW BAG) DW (KB6) (EXC KA1) 2005-2010 01
054 88992745 PAD, D/SEAT CUSH DW (KB6) (EXC KA1) 2005-2010 01
055 88992711 COVER, D/SEAT CUSH (GRAY) (W/AIR HEAT COOL) (14.800) DW (KB6, 132) (EXC KA1) 2005-2006 01
055 88992712 COVER, D/SEAT CUSH (EBONY) (14.800) DW (KB6, 192) (EXC KA1) 2005-2006 01
055 88992713 COVER, D/SEAT CUSH (CASHMERE) (W/AIR HEAT COOL) (14.800) DW (KB6, 322) (EXC KA1) 2005-2006 01
055 88995095 COVER, D/SEAT CUSH (CASHMERE) DW (KB6, 323) (EXC KA1) 2005-2006 01
055 88995096 COVER, D/SEAT CUSH (EBONY) DW (KB6, 193) (EXC KA1) 2005-2006 01
055 88995266 COVER, D/SEAT CUSH (GRAY) DW (KB6, 133) (EXC KA1) 2005-2009 01
056 88992820 COVER, D/SEAT BK CUSH (EBONY) (W/HEAT, VENT, BOSE ДИНАМИКИ) DW (AL2, AQ9, A45, KB6, 192) (EXC KA1) 2005-2006 01
056 88992821 COVER, D/SEAT BK CUSH (CASHMERE) (W/SIAB, HEAT, VENT, BOSE) DW (AL2, AQ9, A45, 322) (EXC KA1) 2005-2006 01
056 88992822 COVER, D/SEAT BK CUSH (GRAY) DW (AL2, AQ9, A45, UY5, 132) 2005-2006 01
056 88994361 COVER, D/SEAT BK CUSH (GRAY) D29 (UX8, 132) (EXC AL2, KA1) 2005-2006 01
056 88995089 COVER, D/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, A45, KB6, UY5, 323) (EXC KA1) 2005-2006 01
056 88995090 COVER, D/SEAT BK CUSH (EBONY) DW (AL2, AQ9, A45, KB6, UY5, 193) (EXC KA1) 2005-2006 01
056 88995268 COVER, D/SEAT BK CUSH (GRAY) (W/BOSE) DW (133) (EXC KA1) 2005-2009 01
057 88992742 PAD, D/SEAT BK CUSH (W/HEAT, COOL, BOSE) DW (KB6) (EXC KA1) 2005-2010 01
058 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR 2005-2010 04
059 11570654 ГАЙКА, D/SEAT (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) DW 2005-2005 02
