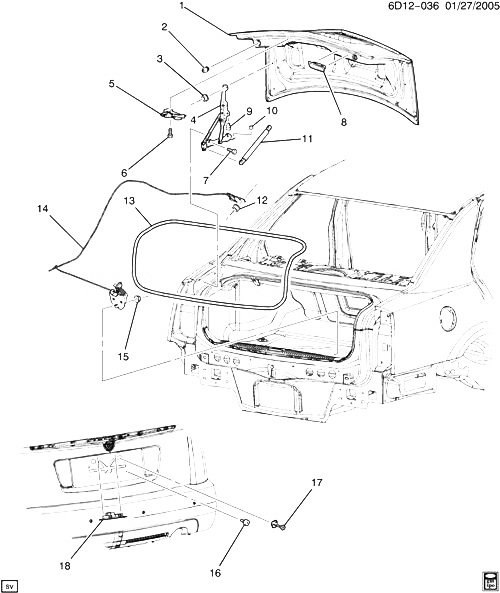

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25818176 |
LID, R/CMPT (W/SPOILER) |
D29 (T43) |
2005-2006 |
01 |
| 001 |
25818179 |
LID, R/CMPT (W/O SPOILER) |
DW29 (EXC T43) |
2005-2006 |
01 |
| 002 |
25705651 |
BUMPER, R/CMPT LID OTR |
D29 |
2005-2006 |
02 |
| 003 |
11514602 |
ГАЙКА, HEX, M8X1.25, 6.8THK, 13 O.D., 10, ZF (R/CMPT LID HGE (LID SI)) |
|
2005-2006 |
04 |
| 004 |
25804984 |
HINGE, R/CMPT LID |
D29 |
2005-2006 |
01 |
| 004 |
25804985 |
HINGE, R/CMPT LID |
D29 |
2005-2006 |
01 |
| 005 |
25885393 |
LATCH, R/CMPT LID (INCLS PULL DOWN ACTUATOR)
| D29 |
2005-2006 |
01 |
|
| 005 |
25885393 |
LATCH, R/CMPT LID (INCLS PULL DOWN ACTUATOR) (12.242)
| D29 |
2005-2006 |
01 |
|
| 006 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (R/CMPT LID LAT) (ACDelco #11517518)
|
2005-2006 |
02 |
|
| 007 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (R/CMPT LID HGE (BODY SI)) (T/W 12345493 REPLCS 25534835)
|
2005-2006 |
04 |
|
| 008 |
15132754 |
HANDLE, L/GATE I/S ASST (16.346) (BUILT PRIOR TO 1/25/05) (FOR 2ND DES SEE 15218183) |
D29 (1ST DES) |
2005-2005 |
01 |
| 008 |
15218183 |
HANDLE, L/GATE I/S ASST (BUILT 1/25/05 AFTER) (FOR 1ST DES SEE 15132754) |
D29 (2ND DES) |
2005-2005 |
01 |
| 009 |
25766892 |
BUMPER, R/CMPT LID HGE |
D29 |
2005-2006 |
02 |
| 010 |
25766891 |
CAP, R/CMPT LID HGE ADJ БОЛТ |
D29 |
2005-2006 |
02 |
| 011 |
15861153 |
STRUT, R/CMPT LID (W/SPOILER)
| D29 (T43) |
2005-2006 |
02 |
|
| 011 |
15861154 |
STRUT, R/CMPT LID |
D29 (EXC T43) |
2005-2006 |
02 |
| 012 |
11516745 |
NUT-HEX W/CON WA, M6X1, 5.5 THK, 19 OD, 9, 7111M, ALL METAL PREV TORQ. (R/CMPT LID LAT REL CBL HDL) |
|
2005-2006 |
02 |
| 013 |
25775733 |
WEATHERSTRIP, R/CMPT LID |
D29 |
2005-2006 |
01 |
| 014 |
15229051 |
STRIKER, R/CMPT LID LAT (USE ON VEHS W/O CLIP RETAINING CABLE TO RR PKG SHELF, 2ND DES IS 25885310) |
DW29 (1ST DES) |
2005-2005 |
01 |
| 014 |
25885310 |
STRIKER, R/CMPT LID LAT (USE ON VEHS W/CLIP RETAINING CABLE TO RR PKG SHELF, 1ST DES IS 15229051)
| D29 (2ND DES) |
2005-2005 |
01 |
|
| 015 |
11517761 |
NUT ASM - HX, WA WITH FOAM SEALER, M6X1, 10MM SOCKET, 42.5 DIA. (R/CMPT LID LAT STKR) |
|
2005-2006 |
03 |
| 016 |
10430752 |
BUMPER, RR LIC PLT (INSTALLED IN POCKET) (12.945) |
D29 |
2005-2006 |
02 |
| 017 |
11610185 |
GROMMET, RR LIC PLT BRKT |
D29 |
2005-2006 |
01 |
| 017 |
25943892 |
GROMMET, RR LIC PLT BRKT |
D |
2005-2006 |
01 |
| 018 |
10383948 |
SWITCH, R/CMPT LID REL (EBONY) (LABELED 10383948) (ACDelco #D1426F) |
D29 |
2005-2006 |
01 |
