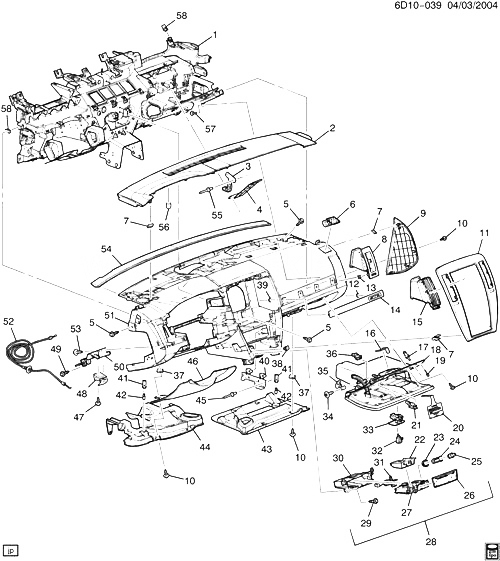

(6D10-039) - 2005-2007 D29 ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 1 CADILLAC - STS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 КРОНШТЕЙН, INST PNL (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ, ЧАСТЬ 3 ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
002 25772896 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DW29 (13I, 19I) (EXC UV6) 2005-2006 01
002 25772897 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DW29 (UV6, 13I, 19I) 2005-2007 01
002 25774060 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (CASHMERE) DW29 (32I) (EXC UV6) 2005-2006 01
002 25774061 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (CASHMERE) DW29 (UV6, 32I) 2005-2006 01
003 25749217 BRACKET, PASS COMPT INFL RST DISCRM SEN (ЧАСТЬ OF 51) D29 2005-2007 02
004 25741629 BRACKET, I/P (ЧАСТЬ OF 51) (TETHER) D29 2005-2007 02
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P UPR TR PAD RET) 2005-2007 08
006 10359954 GRILLE, SI WDO DEFG OTLT (BLACK) DW29 (13I, 19I) 2005-2006 01
006 10359955 GRILLE, SI WDO DEFG OTLT (CASHMERE) DW29 (32I) 2005-2007 01
006 10359956 GRILLE, SI WDO DEFG OTLT (BLACK) DW29 (13I, 19I) 2005-2006 01
006 10359957 GRILLE, SI WDO DEFG OTLT (CASHMERE) DW29 (32I) 2005-2007 01
007 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (ЧАСТЬ OF 2, 9, 11) 2005-2007 AR
008 15912051 DEFLECTOR, I/P OTR AIR OTLT (INCLS 13) (EBONY) DW29 (13I, 19I) 2005-2006 01
008 15912052 DEFLECTOR, I/P OTR AIR OTLT (INCLS 13) (CASHMERE) DW29 (32I) 2005-2007 01
009 10397587 PANEL, I/P SI TR (INCLS 7) (CASHMERE) D29 (32I) 2005-2007 01
009 10397589 PANEL, I/P SI TR (INCLS 7) (EBONY) D29 2005-2007 01
009 10397590 PANEL, I/P SI TR (INCLS 7) (CASHMERE) D29 (32I) 2005-2007 01
009 25771355 PANEL, I/P SI TR (INCLS 7) (EBONY) D29 (19I) 2005-2005 01
009 25771359 PANEL, I/P SI TR (INCLS 7) (GRAY) D29 (13I) 2005-2007 01
009 25771360 PANEL, I/P SI TR (INCLS 7) (GRAY) D29 (13I) 2005-2007 01
010 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P TR PLT) 2005-2007 12
011 10388008 PLATE, I/P ACSRY CTR TR (INCLS 7, 15) (ALUM TRIM) DW (13I) (EXC B19, B20, UV6) 2005-2005 01
011 10388011 PLATE, I/P ACSRY CTR TR (INCLS 7, 15) (EUCALYPTUS) DW (13I, 19I) 2005-2007 01
011 10388012 PLATE, I/P ACSRY CTR TR (INCLS 7, 15) (MD EUCALYPTUS) DW (32I) 2005-2007 01
011 15905540 PLATE, I/P ACSRY CTR TR (INCLS 7, 15) (FREQUENCY) DW (EXC B18, B19, B20) 2005-2007 01
012 11501927 ГАЙКА, PUSH ON, FITS 5MM STUD, 11 OD, PC (ЧАСТЬ OF 14) 2005-2007 02
013 21995018 CLIP, I/P TR PLT (ЧАСТЬ OF 8) D29 2005-2007 AR
014 15219431 EMBLEM, I/P (INCLS 12) (FREQUENCY) DW 2005-2007 01
014 89045020 EMBLEM, I/P (INCLS 12) (DRK EUCALYPTUS) (INCLS EMBLEM, NUTS STS BADGE) DW 2005-2007 01
014 89045021 EMBLEM, I/P (INCLS 12) (EUCALYPTUS) (INCLS EMBLEM, NUTS STS BADGE) DW (32I) 2005-2007 01
014 89045022 EMBLEM, I/P (INCLS 12) (ALUMINUM) (INCLS EMBLEM, NUTS STS BADGE) DW 2005-2007 01
015 25752177 ШЛАНГИ, I/P CTR AIR OTLT DFL (ЧАСТЬ OF 11) DW29 2005-2007 01
015 25752178 ШЛАНГИ, I/P CTR AIR OTLT DFL (ЧАСТЬ OF 11) DW29 2005-2007 01
016 STRIKER, I/P COMPT DR LAT (ЧАСТЬ OF 18) 2005-2007
017 25626851 SWITCH, I/P COMPT LP (ЧАСТЬ OF 18) (GRAY) DW29 2005-2007 01
018 25867245 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (GRAY) DW (13I) 2005-2007 01
018 25867246 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (EBONY) (LESS SHELF) DW (19I) 2005-2007 01
018 25867247 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (CASHMERE) DW (32I) 2005-2007 01
019 BUMPER, I/P COMPT DR (ЧАСТЬ OF 18) 2005-2007
020 10447127 TAG, INFL RST I/P MDL CAUTION (HANGING) DW 2005-2005 01
021 10359030 ЛАМПА, CTSY (ЧАСТЬ OF 18) D29 2005-2007 01
022 25756007 TRAY, I/P LWR EXTN (FELT LINED) D29 2005-2007 01
022 25769776 ПЕПЕЛЬНИЦА, I/P LWR EXTN D29 2005-2007 01
023 25749635 RETAINER, C/LTR HSG (ЧАСТЬ OF 28) (EBONY) (W/O CAP) D 2005-2007 01
024 25776667 RECEPTACLE, C/LTR (ЧАСТЬ OF 28) (2 TERMINALS) D29 2005-2007 01
025 11516141 LIGHTER, CIG (ЧАСТЬ OF 28) (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) D 2005-2007 01
026 DOOR, I/P ПЕПЕЛЬНИЦА (ЧАСТЬ OF 28) 2005-2007
027 RETAINER, I/P LWR EXTN COMPT (ЧАСТЬ OF 28) 2005-2007
028 15238329 TRAY, I/P LWR EXTN (INCLS 26, 27, 29-31) (ALUMINUM) (NON-SMOKER OPTION) DW 2005-2007 01
028 25774189 ПЕПЕЛЬНИЦА, I/P (INCLS 23-27, 29-31) (QUANTUM) DW 2005-2005 01
028 25774192 ПЕПЕЛЬНИЦА, I/P (INCLS 23-27, 29-31) (EUCALYPTUS) D29 (13I, 19I) 2005-2007 01
028 25774194 ПЕПЕЛЬНИЦА, I/P (INCLS 23-27, 29-31) (MD EUCALYPTUS) D29 (32I) 2005-2007 01
028 25790289 TRAY, I/P LWR EXTN (INCLS 26, 27, 29-31) (EUCALYPTUS) DW (13I, 19I) 2005-2007 01
028 25790290 TRAY, I/P LWR EXTN (INCLS 26, 27, 29-31) (EUCALYPTUS) DW (32I) 2005-2007 01
028 25895623 TRAY, I/P LWR EXTN (INCLS 26, 27, 29-31) (FREQUENCY) (USED W/ALUMINUM TRIM) DW 2005-2007 01
029 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 28) 2005-2007 04
030 ШЛАНГИ, I/P ПЕПЕЛЬНИЦА (ЧАСТЬ OF 28) 2005-2007
031 15306175 CONNECTOR, WRG HARN (ЧАСТЬ OF 28) (BLACK) (5-WAY FEMALE) (M/P 150.2 P2S) (W/LEADS) (3.670) (ACDelco #PT1332) D29 (LY7) 2005-2005 01
032 CYLINDER, I/P COMPT DR LK (СМ. ГРУППУ 10.000 ЦИЛИНДР ЗАМКА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
033 15820796 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (EBONY) (INCL HANDLE) D29 (19I) 2005-2007 01
033 15820797 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (GRAY) (W/HDL) D29 (13I) 2005-2007 01
033 25785769 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (CASHMERE) D29 (32I, 33I) 2005-2007 01
034 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 18) 2005-2007 01
035 15210582 DAMPENER, I/P COMPT DR (ЧАСТЬ OF 18) (DOMESTIC/LHD) (FOR EXPORT/RHD SEE 25816277) DW 2005-2007 01
036 25751846 SWITCH, R/CMPT LID DR LK SW ENABLE (JUDCO) (ACDelco #D1401F) DW29 2005-2005 01
037 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 51) 2005-2007 01
038 ГАЙКА, I/P (ЧАСТЬ OF 51) 2005-2007
039 14103956 RETAINER, I/P EMB (ЧАСТЬ OF 51) (5 X 1.6) (PAL NUT) (2.575) D29 2005-2007 04
040 10372395 BRACKET, I/P CTR LWR (ЧАСТЬ OF 51) D29 2005-2007 01
040 10372396 BRACKET, I/P CTR LWR (ЧАСТЬ OF 51) D29 2005-2007 01
041 25760081 ЛАМПА, CTSY (INCLS 42) (ЧАСТЬ OF 43, 44) (I/P INSULATOR) D29 2005-2007 01
042 09433102 ЛАМПА, CTSY (ЧАСТЬ OF 41, 43, 44) (ACDelco #564) 2005-2007 02
043 25741652 INSULATOR, I/P (INCLS 41, 42) D29 2005-2007 01
044 15899927 INSULATOR, I/P (INCLS 41, 42) D29 2005-2007 01
045 25766344 RIVET, I/P LWR BR D29 2005-2007 04
046 10359876 BOLSTER, I/P DRVR KNEE (GRAY) D29 (13I) 2005-2007 01
046 10359877 BOLSTER, I/P DRVR KNEE (CASHMERE) DW (32I) 2005-2007 01
046 15773976 BOLSTER, I/P DRVR KNEE (EBONY) D29 (19I) 2005-2007 01
047 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL HDL) 2005-2007 02
048 25712639 HANDLE, КАПОТ PRIM LAT REL CBL D 2005-2007 01
049 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ЧАСТЬ OF 51) 2005-2007 03
050 BRACKET, КАПОТ PRIM LAT REL CBL (ЧАСТЬ OF 51) 2005-2007
051 89045024 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) DW (19I) (EXC UV6) 2005-2007 01
051 89045025 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) DW (13I) (EXC UV6) 2005-2007 01
051 89045026 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (CASHMERE) DW (32I) (EXC UV6) 2005-2007 01
051 89045028 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) DW (UV6, 19I) 2005-2007 01
051 89045029 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) DW (UV6, 13I) 2005-2007 01
051 89045030 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (CASHMERE) DW (UV6, 32I) 2005-2007 01
052 25745994 CABLE, КАПОТ PRIM LAT REL DW29 2005-2005 01
053 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL HDL) 2005-2007 02
054 25749211 SEAL, I/P TR PAD D29 2005-2007 01
055 02477054 RIVET (ЧАСТЬ OF 51) 2005-2007 08
056 25603681 INSULATOR, I/P UPR T/PNL (ЧАСТЬ OF 2) (BLACK/RUBBER) (9.743) D29 2005-2007 AR
057 11515769 БОЛТ, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (I/P LWR TR PAD BRKT) 2005-2007 02
058 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (I/P) 2005-2007 18
