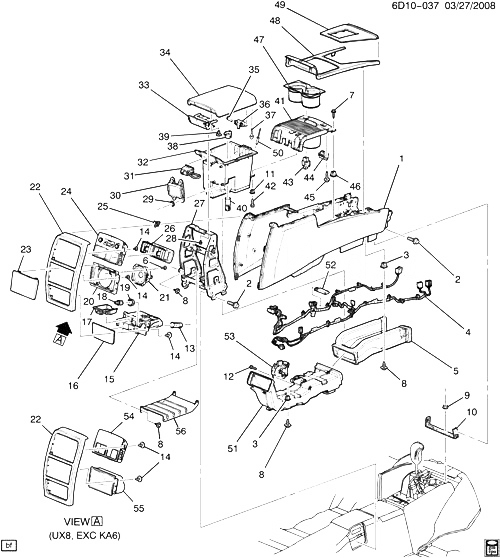

(6D10-037) - 2005-2010 D29 КОНСОЛЬ/ПОЛ CADILLAC - STS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89044032 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (GRAY) DW (UX8, 132) 2005-2005 01
001 89044033 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (EBONY) DW (UX8, 192) 2005-2005 01
001 89044034 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (CASHMERE) DW (UX8, 322) 2005-2005 01
001 89044038 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (GRAY) DW (UX8, 133) 2005-2005 01
001 89044038 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (GRAY) DW (UY5, 132) 2005-2005 01
001 89044039 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (EBONY) DW (UX8, 193) 2005-2005 01
001 89044039 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (EBONY) DW (UY5, 192) 2005-2005 01
001 89044040 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (CASHMERE) DW (UX8, 323) 2005-2005 01
001 89044040 КОНСОЛЬ, F/FLR (INCLS 3, 6-8, 14, 25, 27-30, 32, 38, 40, 42-47, 50, 56) (CASHMERE) DW (UY5, 322) 2005-2005 01
002 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FLR CNSL) 2005-2010 08
003 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (ЧАСТЬ OF 1) 2005-2010 05
004 10360226 HARNESS, F/FLR CNSL WRG (BASE W/O ЗАДНИЙ HEAT SWITCH) DW29 (UX8, YQ1, YQ2) (EXC KA6) 2005-2008 01
004 10360227 HARNESS, F/FLR CNSL WRG (W/SPEAKER W/HEATED SEAT SWITCH) DW29 (KA6, UY5, YQ4, YQ6, YQ7) 2005-2009 01
004 15885807 HARNESS, F/FLR CNSL WRG DW29 (KA6, UX8, YQ2) 2005-2008 01
004 15885808 HARNESS, F/FLR CNSL WRG (W/SPEAKER W/O HEATED HEAT SWITCH) DW29 (UY5, YQ4, YQ6, YQ7) (EXC KA6) 2005-2009 01
004 25907846 HARNESS, F/FLR CNSL WRG DW29 (YQ1, YQ2) 2005-2008 01
005 25726442 DUCT, F/FLR CNSL RR AIR D29 2005-2010 01
006 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 1) 2005-2010 04
007 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 1) 2005-2010 02
008 11609462 SCREW, M4.2X1.41X13, GMW4205 (ЧАСТЬ OF 1) 2005-2010 17
009 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (F/FLR CNSL FRT SUPT) 2005-2010 02
010 25762739 SUPPORT, F/FLR CNSL FRT D29 2005-2010 01
011 25536302 ГАЙКА, F/FLR COMPT STOR TRAY (4.2 X 1.41) (TAPPING NUT) (3.430) D29 2005-2010 03
012 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (AIR DISTR DUCT) 2005-2010 01
013 25776667 RECEPTACLE, F/FLR CNSL ACSRY PWR FRT (ЧАСТЬ OF 15) (2 TERMINALS) D29 2005-2009 01
014 11609462 SCREW, M4.2X1.41X13, GMW4205 (ЧАСТЬ OF 1) D29 2005-2010 11
015 15138940 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (GRAY) D29 (13I) (EXC DT4) 2005-2009 01
015 15138941 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (EBONY) D29 (19I) (EXC DT4) 2005-2009 01
015 15138942 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (CASHMERE) D29 (32I) (EXC DT4) 2005-2009 01
015 15138949 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (GRAY) D29 (DT4, 13I) 2005-2009 01
015 15138950 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (EBONY) D29 (DT4, 19I) 2005-2009 01
015 15138951 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (INCLS 13, 16, 17) (CASHMERE) D29 (DT4, 32I) 2005-2009 01
016 DOOR, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 15) 2005-2010
017 25770278 ШЛАНГИ, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 15) (BLACK) D29 2005-2010 01
018 11516141 LIGHTER, CIG (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) D 2005-2010 01
019 25749635 RETAINER, C/LTR HSG (EBONY) (W/O CAP) D29 2005-2009 01
020 89044067 BRACKET, F/FLR CNSL ACSRY BRKT D29 2005-2010 01
021 25797586 SPEAKER, RDO F/FLR CNSL (3.5) (9.650) (ACDelco #25797586) (ON VEHICLES BUILT ON OR AFTER 01/22/07.) D29 (YQ4, YQ6, YQ7) 2005-2007 01
021 25798963 SPEAKER, RDO F/FLR CNSL (3.5) (ACDelco #25798963) D29 (YQ4, YQ6, YQ7) 2005-2006 01
022 89044028 COVER, F/FLR CNSL RR (GRAY) (PO ШЛАНГИ ASM) D29 (13I) 2005-2009 01
022 89044029 COVER, F/FLR CNSL RR (EBONY) (PO ШЛАНГИ ASM) D29 (19I) 2005-2009 01
022 89044030 COVER, F/FLR CNSL RR (CASHMERE) (PO ШЛАНГИ ASM) D29 (32I) 2005-2009 01
023 25770284 BEZEL, RDO RR SPKR GRL (GRAY) D29 (133, 132) 2005-2008 01
023 25770285 BEZEL, RDO RR SPKR GRL (EBONY) DW29 (19I) 2005-2009 01
023 25770286 BEZEL, RDO RR SPKR GRL (CASHMERE) DW29 (31I) 2005-2007 01
024 25741416 CONTROL, AUX HTR КОНДИЦИОНЕР (9.273) (ACDelco #15-73011) D29 (KA6) 2005-2010 01
024 25741416 CONTROL, AUX HTR КОНДИЦИОНЕР (ACDelco #15-73011) D29 (KA6) 2005-2010 01
025 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 1) 2005-2010 06
026 25770289 OUTLET, AUX FLR AIR (EBONY) D 2005-2010 01
027 BRACKET, F/FLR CNSL (ЧАСТЬ OF 1) 2005-2010
028 11517515 БОЛТ-HFH, M6X1X10, THD 8.5, OD 14.2, 9.8, GM6280, HDR PT. (ЧАСТЬ OF 1) 2005-2010 02
029 11502553 ГАЙКА, STAMPED, M6.3 STUD, SELF THD, STL, PC (ЧАСТЬ OF 1) 2005-2010 04
030 25730079 АНТЕННА, IGN LK KEY XMTR (ЧАСТЬ OF 1) (BLACK) (95 X 114 X 22) (F/FLR) (ACTIVE АНТЕННА W/5 PIN CONN) D29 2005-2009 01
031 21993577 HARNESS, AUDIO/VIDEO WRG DW29 (UY5, YQ3) 2005-2005 01
031 25666549 HARNESS, AUDIO/VIDEO WRG (9.656) (ACDelco #25666549) D29 2005-2010 01
032 89044023 TRAY, F/FLR CNSL A/RST STOR (ЧАСТЬ OF 1) (BLACK) D29 (UX8) 2005-2010 01
032 89044025 TRAY, F/FLR CNSL A/RST STOR (ЧАСТЬ OF 1) (BLACK) D29 (UY5) 2005-2008 01
033 HINGE, F/FLR CNSL COMPT DR (ЧАСТЬ OF 34) 2005-2010
034 10381490 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (GRAY) (ARMREST) DW (133) 2005-2009 01
034 10381491 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (EBONY) (ARMREST) D29 (193) 2005-2009 01
034 10381492 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (CASHMERE) (ARMREST) D29 (323) 2005-2009 01
034 15138882 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (GRAY) (ARMREST) (COMPONENT LEVEL) D29 (132) 2005-2009 01
034 15138883 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (EBONY) (ARMREST) (COMPONENT LEVEL) D29 (192) 2005-2009 01
034 15138884 COMPARTMENT, F/FLR CNSL (INCLS 33, 35-37) (CASHMERE) (ARMREST) (COMPONENT LEVEL) D29 (322) 2005-2009 01
035 25737728 ПРУЖИНА, F/FLR RR CNSL A/RST LAT (ЧАСТЬ OF 34) D 2005-2010 01
036 25737727 LATCH, F/FLR RR CNSL A/RST (ЧАСТЬ OF 34) (PEWTER) D29 2005-2010 01
037 22611883 BUMPER, F/FLR CNSL COMPT DR (ЧАСТЬ OF 34) (BLACK) (6.6 DIA X 4.7 H) (10.263) D29 2005-2010 02
038 25749635 RETAINER, C/LTR RCPT (ЧАСТЬ OF 1) (EBONY) (W/O CAP) D29 2005-2009 01
039 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (F/FLR CNSL RR BRKT) 2005-2010 04
040 15092039 RETAINER, C/LTR HSG (F/FLR COMP) (ЧАСТЬ OF 1) (EBONY) (INCLS COVER) D29 2005-2009 01
041 15138870 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 42-45, 47) (GRAY) (GRAY DOOR) (GRAY DOOR) (FOR 1ST DES SEE 89027045) D29 (13I) (2ND DES) 2005-2005 01
041 15138871 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 42-45, 47) (EBONY) (EBONY DOOR) D29 (19I) 2005-2007 01
041 15138872 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 42-45, 47) (CASHMERE) (CASHMERE DOOR) (CASHMERE DOOR) (FOR 1ST DES SEE 89027046) D29 (32I) (2ND DES) 2005-2005 01
041 89027045 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 42-45, 47) (GRAY) (EBONY DOOR) (EBONY DOOR) (FOR 2ND DES SEE 15138870) D29 (13I) (1ST DES) 2005-2005 01
041 89027046 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 42-45, 47) (CASHMERE) (EBONY DOOR) (EBONY DOOR) (FOR 2ND DES SEE 15138872) D29 (32I) (1ST DES) 2005-2005 01
042 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 1, 41) 2005-2010 02
043 25749206 SWITCH, HAZARD WRNG (ЧАСТЬ OF 1, 41) (EBONY) D29 2005-2009 01
044 25749204 SWITCH, ELEK TRACT CONT (ЧАСТЬ OF 1, 41) (ACDelco #25749204) D29 2005-2010 01
045 89044022 БОЛТ, ELEK TRACT CONT SW (ЧАСТЬ OF 1, 41) DW29 2005-2009 02
046 25536302 ГАЙКА, F/FLR CNSL STOR TRAY (ЧАСТЬ OF 1) (4.2 X 1.41) (TAPPING NUT) (3.430) D29 2005-2007 02
047 25770235 LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 1, 41) (EBONY) D29 2005-2010 01
048 25827670 RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT (GRAY) D29 (13I) 2005-2005 01
048 25827671 RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT (EBONY) D29 (19I) 2005-2005 01
048 25827672 RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT (LT CASHMERE) DW29 (32I) 2005-2007 01
049 15138982 PLATE, F/FLR CNSL TRANS SHFT OPG TR (EUCALYPTUS LIGHT WOOD) DW29 (B19, B20, 32I) 2005-2006 01
049 15138983 PLATE, F/FLR CNSL TRANS SHFT OPG TR (BRUSHED ALUMINUM) DW29 (EXC B19, B20) 2005-2006 01
049 25770219 PLATE, F/FLR CNSL TRANS SHFT OPG TR (EUCALYPTUS DARK WOOD) DW29 (B19, B20, 13I, 19I) 2005-2006 01
050 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (ЧАСТЬ OF 1) 2005-2010 02
051 89023396 DUCT, AIR DISTR D29 2005-2010 01
052 25888495 АНТЕННА, IGN LK KEY XMTR (RR/BPR) D29 2005-2009 01
053 89023397 ACTUATOR, MODE VLV (IN ПОЛ КОНСОЛЬ) (ACDelco #15-73027) D29 2005-2009 01
054 25770288 PLATE, F/FLR CNSL CVR TR DW (EXC KA6) 2005-2010 01
055 25770287 TRAY, F/FLR CNSL STOR D29 2005-2010 01
056 BRACKET, F/FLR CNSL (ЧАСТЬ OF 1) 2005-2010
