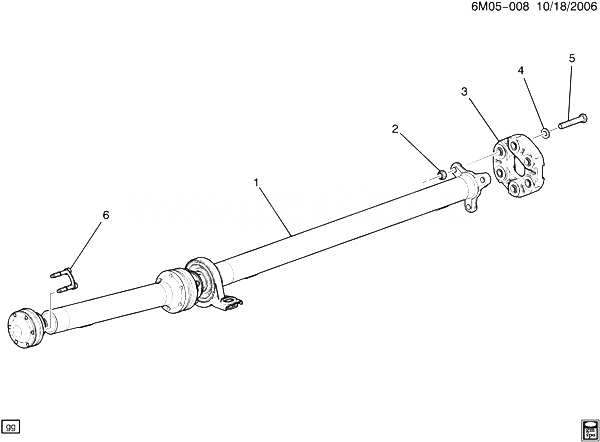

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15235576 |
SHAFT, PROP (INCLS 2-6) (INCLS CTR SUPT BRG) (VIN 50206731 AND LATER. FOR 1ST DESIGN SEE 15225524)
| D29 (MV3) (2ND DES) |
2005-2005 |
01 |
|
| 002 |
11516078 |
ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ЧАСТЬ OF 1)
|
2005-2010 |
03 |
|
| 003 |
|
COUPLING, PROP SHF (ЧАСТЬ OF 1) |
|
2005-2005 |
|
| 004 |
11588689 |
WASHER, PROP SHF FLG (ЧАСТЬ OF 1) (ID 12.25, OD 23.0, THK 3.38MM)
| D |
2005-2010 |
06 |
|
| 005 |
11588658 |
БОЛТ-HEX, M12X1.75X70, 24 THD, 10.9, GMW3359, ADHESIVE PER GM6194M (ЧАСТЬ OF 1)
|
2005-2010 |
03 |
|
| 006 |
10363385 |
RETAINER, FRT PROP SHF (ЧАСТЬ OF 1) (INCLS 2 M8X1.25X45 БОЛТS AND 1 БОЛТ LOCK)
| D29 (MV3) |
2005-2006 |
03 |
|
