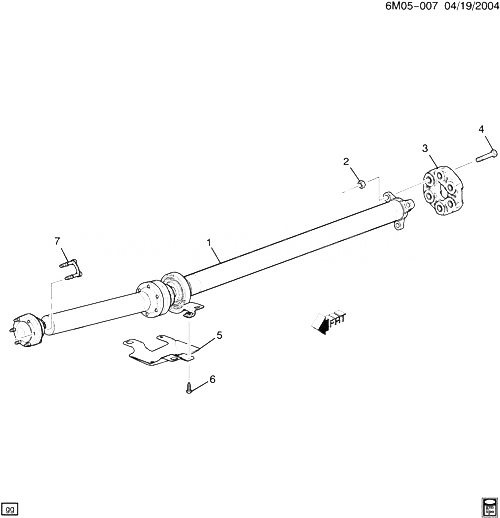

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15225524 |
SHAFT, PROP (IF NEW PROPSHAFT HAS A CENTER BEARING HEAT SHIELD, REMOVE AND DISCARD) (INCLS 2-7) (VIN 50206730 AND PRIOR. FOR 2ND DESIGN SEE 15235576) |
D29 (MV3) (1ST DES) |
2005-2005 |
01 |
| 002 |
11516078 |
ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ЧАСТЬ OF 1)
|
2005-2005 |
04 |
|
| 003 |
|
COUPLING, PROP SHF (ЧАСТЬ OF 1) |
|
2005-2005 |
|
| 004 |
11588658 |
БОЛТ-HEX, M12X1.75X70, 24 THD, 10.9, GMW3359, ADHESIVE PER GM6194M (ЧАСТЬ OF 1)
|
2005-2005 |
03 |
|
| 005 |
|
SHIELD, PROP SHF CTR SUPT BRG (ЧАСТЬ OF 1) |
|
2005-2005 |
|
| 006 |
|
БОЛТ, PROP SHF SHLD (ЧАСТЬ OF 1) |
|
2005-2005 |
|
| 007 |
10363385 |
RETAINER, FRT PROP SHF (ЧАСТЬ OF 1) (INCLS 2 M8X1.25X45 БОЛТS AND 1 БОЛТ LOCK)
| D29 (MV3) |
2005-2005 |
03 |
|
