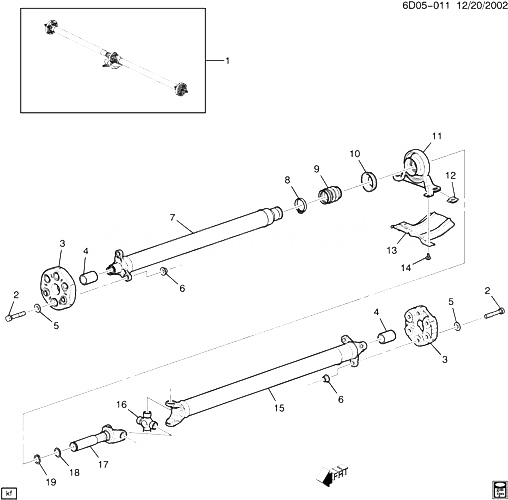

(6D05-011) - 2005-2006 D ВАЛ ПРИВОДА-КАРДАННЫЙ ВАЛ (M22,M82,MV1) CADILLAC - STS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15225526 SHAFT, PROP (IF NEW PROPSHAFT HAS A CENTER BEARING HEAT SHIELD, REMOVE AND DISCARD) (INCLS 2-19) D29 (M22, M82) (EXC JNG) 2005-2006 01
001 15225526 SHAFT, PROP (IF NEW PROPSHAFT HAS A CENTER BEARING HEAT SHIELD, REMOVE AND DISCARD) (INCLS 2-19) D29 (M22, M82, JNG) (EXPORT) 2005-2006 01
002 11588658 БОЛТ, TRANS PROP SHF FLG (INCLS 5) (M12X1.75X70) (HEX) (8.900) D29 (M22, M82) 2005-2006 06
003 COUPLING, PROP SHF 2005-2006
004 LOCATOR, PROP SHF 2005-2006
005 11588689 WASHER, FRT PROP SHF (ЧАСТЬ OF 2) (ID 12.25, OD 23.0, THK 3.38MM) D29 2005-2007 03
006 11516073 ГАЙКА, PROP SHF FLG (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917) DW29 (M22, M82) 2005-2006 06
007 SHAFT, FRT PROP 2005-2006
008 CЛАМПА, FRT PROP SHF BRG UPR (*KIT1) 2005-2006
009 BOOT, PROP SHF RR SLIP YOKE (*KIT1) 2005-2006
010 SLINGER, FRT PROP SHF BRG (*KIT1) 2005-2006
011 BEARING, PROP SHF CTR SUPT (*KIT1) 2005-2006
012 25708829 SHIM, PROP SHF CTR SUPT BRG (BLACK) (OVERALL HEIGHT 2MM) D29 2005-2007 AR
012 25708830 SHIM, PROP SHF CTR SUPT BRG (GREEN) (OVERALL HEIGHT 4MM) D29 2005-2007 AR
012 25708831 SHIM, PROP SHF CTR SUPT BRG (BLUE) (OVERALL HEIGHT 6MM) D29 2005-2007 AR
012 25708832 SHIM, PROP SHF CTR SUPT BRG (YELLOW) (OVERALL HEIGHT 8MM) D29 2005-2007 AR
012 25708833 SHIM, PROP SHF CTR SUPT BRG (WHITE) (OVERALL HEIGHT 10MM) D29 2005-2007 AR
012 25708834 SHIM, PROP SHF CTR SUPT BRG (PURPLE) (OVERALL HEIGHT 12MM) D29 2005-2007 AR
013 SHIELD, PROP SHF CTR SUPT BRG 2005-2006
014 БОЛТ, PROP SHF SHLD 2005-2006
015 SHAFT, RR PROP 2005-2006
016 JOINT, PROP SHF UNIVERSAL 2005-2006
017 YOKE, PROP SHF SLIP 2005-2006
018 RING, PROP SHF CTR SUPT BRG THR (*KIT1) 2005-2006
019 RETAINER, RR PROP SHF (*KIT1) 2005-2006
K01 88951975 BEARING KIT, PROP SHF CTR SUPT (INCLS 8-11, 18, 19) D29 2005-2005 01
