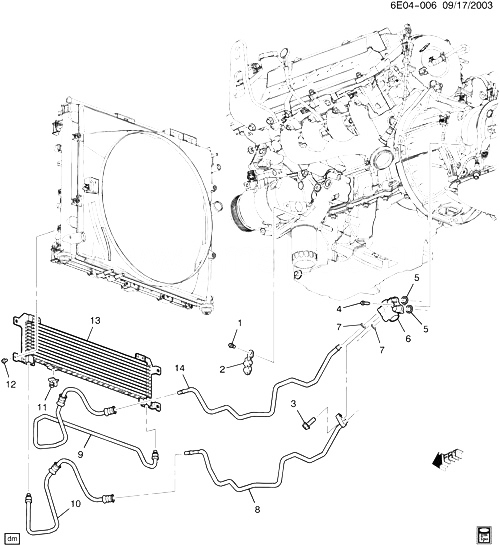

(6E04-006) - 2005 DW29 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (V03,V92, EXC V09)(WITH THERMAL BYPASS VALVE)(1ST DES) CADILLAC - STS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2005-2005 01
002 89022494 BRACKET, TRANS FLUID CLR DW29 (LH2, LY7) 2005-2005 01
003 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2005-2005 01
004 11515792 БОЛТ, HFH, M8X1.25X40, 22THD, 18 O.D., MAC-PT, 10.9, 7112M (TRANS FLUID CLR PIPE CONN) 2005-2005 01
005 SEAL, TRANS FLUID CLR PIPE FTG (O RING) (ЧАСТЬ OF 6) 2005-2005
006 24221232 VALVE, TRANS FLUID CLR THERMAL BYPASS (INCLS 5) DW29 (1ST DES) 2005-2005 01
007 19130214 SEAL, TRANS FLUID CLR HOSE CONN (O RING) DW29 (LH2, LY7, JJA) 2005-2005 02
008 19129779 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) (FOR VEH BUILT PRIOR TO VIN 1G6DC67A450180961 USE T/W 19129780 , 11515757 REMOVE THERM BYPASS VLV.) DW (LH2) 2005-2005 01
008 19129781 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) DW29 (LY7) 2005-2005 01
008 19129781 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) (BUILT PRIOR TO VIN 1G6DW677850180974 USE T/W 19129782 , 11515757 REMOVE THERM BYPASS VLV.) DW29 (LY7) 2005-2005 01
009 PIPE, TRANS FLUID CLR LWR (ЧАСТЬ OF 13) 2005-2005
010 PIPE, TRANS FLUID CLR UPR (ЧАСТЬ OF 13) 2005-2005
011 CLIP, TRANS FLUID CLR PIPE (ЧАСТЬ OF 13) 2005-2005
012 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR) (ACDelco #11570082) 2005-2005 04
013 89022522 COOLER, TRANS FLUID (INCLS 9-11) D29 (LH2, LY7, V03, V92) (EXC V09) 2005-2005 01
014 19129780 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) (USE ON CARS BUILT W/ OR AFTER VIN 1G6DC67A450180961) (FOR CARS BUILT PRIOR TO VIN REPL T/W 19129779 , 11515757 REMOVE THERM BYPASS VLV.) DW (LH2) (EXC V09) 2005-2005 01
014 19129782 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) (USE ON CARS BUILT W/ OR AFTER VIN 1G6DW677850180974) (FOR CARS BUILT PRIOR TO VIN REPL T/W 19129781 , 11515757 REMOVE THERM BYPASS VLV.) DW29 (LY7) 2005-2005 01
