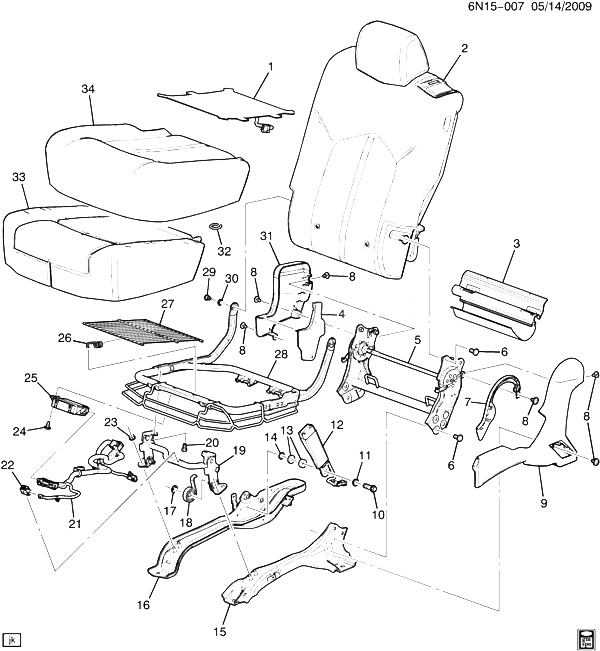

(6N15-007) 2010-2013 N СИДЕНЬЕ В СБОРЕ/ЗАДНЕЕ-ПОДУШКА 40% SIDE CADILLAC - SRX 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25980514 HEATER, R/SEAT CUSH N (KA6) 2010-2013 02
002 25982304 PAD, R/SEAT BK (SEE GROUP 15.000 SEAT ASM/REAR-BACK 40% SIDE FOR DETAILED ILLUSTRATED VIEW) N 2010-2013 01
003 20830021 COVER, R/SEAT FRM RR FIN (O/B) N 2010-2013 01
004 20779394 COVER, R/SEAT RECL INR FIN (BLACK) N (01A) 2010-2013 01
004 20779396 COVER, R/SEAT RECL INR FIN (SHALE) N (01F) 2010-2013 01
004 22894429 COVER, R/SEAT RECL INR FIN (TITANIUM) N (EAM, 01C) 2013-2013 01
004 22894429 COVER, R/SEAT RECL INR FIN (TITANIUM) N (EBS, 01C) 2013-2013 01
004 20779395 COVER, R/SEAT RECL INR FIN (TITANIUM) N (01C) 2013-2013 01
005 25982319 RECLINER, R/SEAT (*KIT1) N 2010-2013 01
007 20887231 COVER, R/SEAT TRACK REAR INBOARD (BLACK) N (01A) 2010-2013 01
007 20887233 COVER, R/SEAT TRACK REAR INBOARD (SHALE) NG (01F) 2010-2013 01
007 22911939 COVER, R/SEAT TRACK REAR INBOARD (TITANIUM) N (EAM, 01C) (EXC KA6) 2013-2013 01
007 22911939 COVER, R/SEAT TRACK REAR INBOARD (TITANIUM) N (EBS, 01C) 2013-2013 01
008 11610936 SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (R/SEAT) 2010-2013 23
009 20778897 COVER, R/SEAT TRACK REAR OUTBOARD (BLACK) N (01A) 2010-2013 01
009 20778899 COVER, R/SEAT TRACK REAR OUTBOARD (SHALE) N (01F) 2010-2013 01
009 22894433 COVER, R/SEAT TRACK REAR OUTBOARD (TITANIUM) N (EAM, 01C) (EXC KA6) 2013-2013 01
009 22894433 COVER, R/SEAT TRACK REAR OUTBOARD (TITANIUM) N (EBS, 01C) 2013-2013 01
010 BOLT, R/SEAT BELT BKL (PART OF 12) 2010-2013
011 BUSHING, R/SEAT BELT (BKL SI) (PART OF 12) 2010-2013
012 19210573 BELT KIT, R/SEAT (BKL SI) (INCLS 10, 11, 13, 14) (BLACK) N (EAM, 01A, 01C) (EXC KA6) 2010-2013 01
012 19210574 BELT KIT, R/SEAT (BKL SI) (INCLS 10, 11, 13, 14) (TITANIUM) N (01E) 2010-2013 01
012 19210575 BELT KIT, R/SEAT (BKL SI) (INCLS 10, 11, 13, 14) (SHALE) N (01F) 2010-2013 01
012 19210573 BELT KIT, R/SEAT (BKL SI) (INCLS 10, 11, 13, 14) (BLACK) N (EBS, 01A, 01C, 05B) 2010-2013 01
013 SPACER, R/SEAT BELT (BKL SI) (PART OF 12) 2010-2013
014 RETAINER, R/SEAT BELT (PART OF 12) 2010-2013
015 RISER, R/SEAT OTR (*KIT1) 2010-2013
016 RISER, R/SEAT INR (*KIT1) 2010-2013
017 RETAINER, R/SEAT CUSH SPR (*KIT1) 2010-2013
019 25982353 LINK, R/SEAT HGE (*KIT1) N 2010-2013 01
020 11509589 BOLT, HEX, M8X1.25X16, FULL THD, 9.8, PC (R/SEAT CUSH FRM) 2010-2013 02
021 20857922 HARNESS, R/SEAT HTR N (EBS, KA6) 2011-2013 01
022 25898802 LAMP, F/SEAT BK CTSY N (EBS) 2012-2013 01
023 25980534 BOLT, R/SEAT RSR (*KIT1) NG 2010-2013 08
024 25980446 BOLT, R/SEAT (OD 9.2, 9.8) (TAPPING POINT) NG 2010-2013 04
024 25960059 BOLT, R/SEAT (4/16X14) (11.588) N 2010-2013 02
024 13110832 BOLT, R/SEAT (M5X0.8X12) (11.558) N (EBS, KA6) 2013-2013 02
025 13502041 MODULE, R/SEAT HTR CONT N (KA6) 2010-2013 01
028 20821331 FRAME, R/SEAT CUSH (INCLS 26, 27) N 2010-2013 01
030 25982303 SPACER, R/SEAT N 2010-2013 04
030 25981141 SPACER, R/SEAT N (AL0, EAM) (EXC KA6) 2010-2013 04
030 25981141 SPACER, R/SEAT N (AL0, EBS) 2010-2013 04
030 25981141 SPACER, R/SEAT N (EBS) 2010-2013 04
030 25981141 SPACER, R/SEAT N (EAM) (EXC KA6) 2010-2013 04
031 20779402 COVER, R/SEAT RECL OTR FIN (BLACK) N (01A) 2010-2013 01
031 20779404 COVER, R/SEAT RECL OTR FIN (SHALE) N (01F) 2010-2013 01
031 22894431 COVER, R/SEAT RECL OTR FIN (TITANIUM) N (EAM, 01C) (EXC KA6) 2013-2013 01
031 22894431 COVER, R/SEAT RECL OTR FIN (TITANIUM) N (EBS, 01C) 2013-2013 01
031 20779403 COVER, R/SEAT RECL OTR FIN (TITANIUM) N (01C) 2013-2013 01
032 06616858 RING, R/SEAT CUSH PAD HOG (8.934) N 2010-2013 AR
033 25982337 PAD, R/SEAT CUSH N 2010-2013 01
034 22866991 COVER, R/SEAT CUSH (SHALE) N (EBS, KA6, 01F) 2011-2013 01
034 22894348 COVER, R/SEAT CUSH (TITANIUM) N (EAM, 01C) (EXC KA6) 2013-2013 01
034 22894351 COVER, R/SEAT CUSH (BLACK) N (EBS, KA6, 01A) 2013-2013 01
034 22894374 COVER, R/SEAT CUSH (BLACK) N (EBS, 01A) (EXC KA6) 2013-2013 01
034 22894376 COVER, R/SEAT CUSH (TITANIUM) N (EBS, 01C) 2013-2013 01
034 22910399 COVER, R/SEAT CUSH (SHALE) N (EBS, 01F) 2013-2013 01
034 22866990 COVER, R/SEAT CUSH (TITANIUM) N (EBS, KA6, 01C) 2013-2013 01
034 22878915 COVER, R/SEAT CUSH (SHALE) N (EBS, 01F) 2013-2013 01
034 22894377 COVER, R/SEAT CUSH (BLACK) N (EAM, 01A) (EXC KA6) 2013-2013 01
K01 25982324 RISER, R/SEAT (INCLS 5, 6, 15-19, 23) (W/LINK ASM) (11.610) N 2010-2013 01
