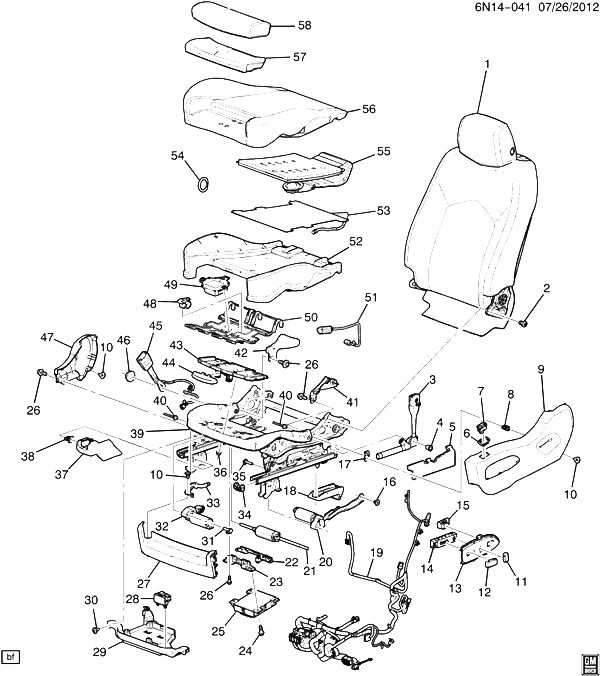

(6N14-041) 2013 N СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (MEMORY AAB) CADILLAC - SRX 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 PAD, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) 2013-2013
002 13272975 BOLT, D/SEAT (PART OF 39) (20X17.5) (14.896) N 2013-2013 04
003 19209486 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 4) (SHALE) N (01F) 2013-2013 01
003 19209485 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 4) (BLACK) N (01A, 01C) 2013-2013 01
004 BOLT, D/SEAT (PART OF 3) 2013-2013
005 20777791 COVER, F/SEAT OTR ADJR AUX FIN (DUNE) N (01F) 2013-2013 01
005 20777789 COVER, F/SEAT OTR ADJR AUX FIN (BLACK) N (01A, 01C, 05B) 2013-2013 01
006 22776752 BEZEL, D/SEAT ADJR MEMORY SW (BLACK) N (01A) 2013-2013 01
006 22776754 BEZEL, D/SEAT ADJR MEMORY SW (SHALE) N (01F) 2013-2013 01
006 22897447 BEZEL, D/SEAT ADJR MEMORY SW (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
007 13273505 SWITCH, D/SEAT ADJR MEMORY (BLACK) N (01A) 2013-2013 01
007 25962339 SWITCH, D/SEAT ADJR MEMORY (SHALE) N (01F) 2013-2013 01
007 25995339 SWITCH, D/SEAT ADJR MEMORY (TITANIUM) NG (EBS, 01C) 2013-2013 01
008 25962409 RETAINER, D/SEAT OTR ADJR FIN CVR (PART OF 9) (OUTBOARD) N 2013-2013 01
009 20887470 COVER, D/SEAT OTR ADJR FIN (INCLS 8) (BLACK) N (AL2, 01A) 2013-2013 01
009 20887472 COVER, D/SEAT OTR ADJR FIN (INCLS 8) (SHALE) N (AL2, 01F) 2013-2013 01
009 22897464 COVER, D/SEAT OTR ADJR FIN (INCLS 8) (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
010 25898774 RETAINER, D/SEAT ADJR FIN CVR N 2013-2013 AR
011 25962342 KNOB, D/SEAT RECL LVR (SHALE) N (01F) 2013-2013 01
011 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) N (01A) 2013-2013 01
011 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) NG (01C) 2013-2013 01
012 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) N (01A) 2013-2013 01
012 25962341 KNOB, D/SEAT ADJR SW (SHALE) (11.588) N (01F) 2013-2013 01
012 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) NG (01C) 2013-2013 01
013 20777884 BEZEL, D/SEAT ADJR SW (BLACK) N (AL2, 01A) 2013-2013 01
013 20777886 BEZEL, D/SEAT ADJR SW (SHALE) N (AAB, AL2, AR9, EBS, KA1, LHD, 01F) 2013-2013 01
013 22897453 BEZEL, D/SEAT ADJR SW (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
014 25974714 SWITCH, D/SEAT P/SEAT ADJR (BLACK) (8-WAY) N (EAM) 2013-2013 02
014 25974715 SWITCH, D/SEAT P/SEAT ADJR (D P SEAT ADJ SWITCH)6-WAY) (LABELED 25974715) N (AG2, AL0, EBS) 2013-2013 02
014 25974714 SWITCH, D/SEAT P/SEAT ADJR (BLACK) (8-WAY) N (EBS) 2013-2013 02
015 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) N (01A) 2013-2013 01
015 25962344 SWITCH, D/SEAT LUMBAR CONT (SHALE) N (01F) 2013-2013 01
015 25908452 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) NG (01C) 2013-2013 01
016 13279159 BOLT, F/SEAT ADJR ACTR MOT (PART OF 39) (13MM LONG) N 2013-2013 01
017 BRACKET, D/SEAT ADJR FIN CVR (PART OF 39) 2013-2013
018 20778114 COVER, F/SEAT ADJR RR FIN (DUNE) N (01F) 2013-2013 02
018 20778112 COVER, F/SEAT ADJR RR FIN (BLACK) N (01A) 2013-2013 02
018 20778112 COVER, F/SEAT ADJR RR FIN (BLACK) N (01A) 2013-2013 02
018 20778112 COVER, F/SEAT ADJR RR FIN (BLACK) N (EBS, 01C) 2013-2013 02
018 20778112 COVER, F/SEAT ADJR RR FIN (BLACK) N (EBS, 01C) 2013-2013 02
018 20778114 COVER, F/SEAT ADJR RR FIN (DUNE) N (01F) 2013-2013 02
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL0, AL2, AR9, EBS, KA1, LHD) (EXC KU1, UFL, UWG) 2013-2013 01
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL2, AR9, EBS, KA1, LHD) (EXC AL0, KU1, UFL, UWG) 2013-2013 01
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UWG) (EXC KU1, UFL) 2013-2013 01
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD) (EXC UFL, UWG) 2013-2013 01
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UWG) (EXC UFL) 2013-2013 01
019 22942292 HARNESS, D/SEAT WRG NG26 (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UWG) (EXC AL0, UFL) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL) (EXC KU1, UWG) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL2, AR9, EBS, KA1, LHD, UFL) (EXC AL0, KU1, UWG) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL, UWG) (EXC KU1) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL) (EXC UWG) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG) 2013-2013 01
019 22942294 HARNESS, D/SEAT WRG NG (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG) (EXC AL0) 2013-2013 01
020 13578634 ACTUATOR, D/SEAT ADJR VERT (PART OF 39) N (EBS) 2013-2013 01
021 13578630 ACTUATOR, D/SEAT ADJR (PART OF 39) N (AAB, EBS) 2013-2013 01
022 BRACKET, D/SEAT ADJR MEMORY MDL (PART OF 39) 2013-2013
023 BRACKET, D/SEAT WRG HARN (PART OF 39) 2013-2013
024 13110832 BOLT, D/SEAT ADJR MEMORY MDL BRKT (PART OF 39) (M5X0.8X12) N 2013-2013 04
025 22863113 MODULE, D/SEAT ADJR MEMORY N (AAB) 2013-2013 01
025 23120589 MODULE, D/SEAT ADJR MEMORY N (AAB) 2013-2013 01
026 13110832 BOLT, D/SEAT (M5X0.8X12) (11.558) N 2013-2013 06
027 20777748 COVER, D/SEAT CUSH FRT (BLACK) N (01A) 2013-2013 01
027 20777750 COVER, D/SEAT CUSH FRT (SHALE) N (01F) 2013-2013 01
027 22897466 COVER, D/SEAT CUSH FRT (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
028 22810919 MODULE, D/SEAT HTR CONT N (AAB, AL2, AR9, EBS, KA1, LHD) 2013-2013 01
029 BRACKET, D/SEAT 2013-2013
030 13110832 RETAINER, D/SEAT ADJR FIN CVR (M5X0.8X12) (11.558) N (AG2, AL2, AR9, EBS, KA1, LHD) (EXC AL0) 2013-2013 02
031 13303053 RETAINER, F/SEAT ADJR TILT ACTR PIN (PART OF 39) N 2013-2013 02
032 13578638 ACTUATOR, F/SEAT TILT ADJR (PART OF 39) N (EBS) 2013-2013 01
033 BRACKET, D/SEAT ADJR FIN CVR (PART OF 39) 2013-2013
034 13100009 COVER, D/SEAT ADJR FIN (PART OF 39) (TRACK END CAP) N 2013-2013 04
035 13303053 RETAINER, F/SEAT ADJR TILT ACTR PIN N 2013-2013 02
036 11098671 NUT, D/SEAT (M5X11.8) (14.865) N 2013-2013 02
037 25988136 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (DUNE) N (01F) 2013-2013 01
037 25988137 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG, 01C) (EXC AL0) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL, 01A) (EXC KU1, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL, 01C) (EXC KU1, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, LHD, UFL, 01A) (EXC AL0, KU1, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, LHD, UFL, 01C) (EXC AL0, KU1, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL, UWG, 01A) (EXC KU1) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UFL, UWG, 01C) (EXC KU1) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL, 01A) (EXC UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL, 01C) (EXC UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG, 01A) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG, 01C) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UFL, UWG, 01A) (EXC AL0) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, 01A) (EXC KU1, UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, 01C) (EXC KU1, UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, LHD, 01A) (EXC AL0, KU1, UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) (EXC AL0, KU1, UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UWG, 01A) (EXC KU1, UFL) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD, UWG, 01C) (EXC KU1, UFL) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, 01A) (EXC UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, 01C) (EXC UFL, UWG) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UWG, 01A) (EXC UFL) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL0, AL2, AR9, EBS, KA1, KU1, LHD, UWG, 01C) (EXC UFL) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UWG, 01A) (EXC AL0, UFL) 2013-2013 01
037 25988138 COVER, D/SEAT INR ADJR TRK FRT FIN (INCLS 38) (BLACK) N (AAB, AL2, AR9, EBS, KA1, KU1, LHD, UWG, 01C) (EXC AL0, UFL) 2013-2013 01
038 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37) 2013-2013 01
039 22850196 FRAME, D/SEAT CUSH (INCLS 2, 16, 17, 20-24, 28-31, 35, 50) N (AAB, AL2, AR9, EBS, KA1, LHD) (EXC AL0) 2013-2013 01
039 22850197 FRAME, D/SEAT CUSH (INCLS 2, 16, 17, 20-24, 28-31, 35, 50) N (AAB, AL0, AL2, AR9, EBS, KA1, LHD) 2013-2013 01
040 25898774 RETAINER, D/SEAT ADJR FIN CVR N 2013-2013 AR
041 20777864 COVER, F/SEAT OTR RECL INR FIN (BLACK) N (01A) 2013-2013 01
041 20777866 COVER, F/SEAT OTR RECL INR FIN (SHALE) N (01F) 2013-2013 01
042 20777833 COVER, D/SEAT INR RECL FIN (BLACK) (OUTER) N (AG2, 01A) 2013-2013 01
042 20777835 COVER, D/SEAT INR RECL FIN (SHALE) (OUTER) N (AG2, 01F) 2013-2013 01
042 22897468 COVER, D/SEAT INR RECL FIN (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, UFL, 01C) (NOT YET AVAILABLE) 2013-2013 01
043 FRAME, F/SEAT CUSH FRT EXTN (PART OF 57) 2013-2013
044 13315661 HANDLE, F/SEAT CUSH FRT EXTN ADJ (PART OF 57) (BLACK) N (EBS, 01A, 01E, 01F) 2013-2013 01
045 19260775 BELT KIT, D/SEAT (BKL SI) (BLACK) N (AL0, 01A, 01C) 2013-2013 01
045 19260776 BELT KIT, D/SEAT (BKL SI) (SHALE) N (AL0, 01F) 2013-2013 01
045 19260777 BELT KIT, D/SEAT (BKL SI) (BLACK) N (01A, 01C) (EXC AL0) 2013-2013 01
045 19260778 BELT KIT, D/SEAT (BKL SI) (SHALE) N (01F) (EXC AL0) 2013-2013 01
046 11561963 NUT, D/SEAT BELT (BKL SI) (8.915) N 2013-2013 01
047 20777988 COVER, D/SEAT INR RECL FIN (BLACK) (INNER) N (01A) 2013-2013 01
047 20777990 COVER, D/SEAT INR RECL FIN (SHALE) (INNER) N (01F) 2013-2013 01
047 22897467 COVER, D/SEAT INR RECL FIN (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, 01C) (NOT YET AVAILABLE) 2013-2013 01
048 11562261 CLIP, D/SEAT ADJR WRG HARN (2.480) N 2013-2013 AR
049 22894838 FAN, F/SEAT CUSH VENT N (EBS) 2013-2013 02
050 25898768 SPRING, D/SEAT CUSH PAD SUPT (PART OF 39) N 2013-2013 01
051 22774437 MOTOR, D/SEAT ADJR ACTR (HAPTIC ACTUATOR) N (AAB, AL2, AR9, EBS, KA1, LHD, UFL) 2013-2013 02
052 22795908 PAD, D/SEAT CUSH (HAPTIC ACTUATOR PADS) N (AAB, AR9, EBS, UFL) 2013-2013 02
052 22973944 PAD, D/SEAT CUSH (CUSH FOAM PAD W/HEATER ATTACHED) NG (AAB, AL2, AR9, EBS, KA1, UFL) (EXC KU1) 2013-2013 01
052 22973957 PAD, D/SEAT CUSH (FRT SEAT CUSHION DRIVER HEAT W/CLA) NG (AAB, AL2, AR9, EBS, KA1) (EXC KU1, UFL) 2013-2013 01
052 20987308 PAD, D/SEAT CUSH (FOAM PAD ONLY) N (AAB, EBS, KA1, KU1) (EXC UFL) 2013-2013 01
054 22950589 HEATER, D/SEAT CUSH (MAY REPL HTR 1 TIME, AFTER WHICH, MUST REPL HTR W/SVC ONLY PAD HTR ASM (22973944/49/57)) N (AAB, AL2, AR9, EBS, KA1, LHD) 2013-2013 01
055 25898794 RING, D/SEAT CUSH CVR HOG N 2013-2013 01
056 25963231 MODULE, D/SEAT CUSH VENTILATION HEAT COOL N (KA1, KU1) 2013-2013 01
057 22897462 COVER, D/SEAT CUSH (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
057 22910385 COVER, D/SEAT CUSH (SHALE) N (AAB, AL2, AR9, EBS, KA1, LHD, 01F) 2013-2013 01
057 22850171 COVER, D/SEAT CUSH (BLACK) N (AAB, AL2, AR9, EBS, KA1, LHD, UFL, 01A) 2013-2013 01
058 22738255 CUSHION, F/SEAT FRT EXTN (INCLS 43, 44, 58) (EBONY) N (01A) 2013-2013 01
058 22897470 CUSHION, F/SEAT FRT EXTN (INCLS 43, 44, 58) (TITANIUM) N (AAB, AL2, AR9, EBS, KA1, LHD, 01C) 2013-2013 01
058 22912167 CUSHION, F/SEAT FRT EXTN (INCLS 43, 44, 58) (SHALE) N (AAB, AL2, AR9, EBS, KA1, LHD, 01F) 2013-2013 01
059 COVER, D/SEAT CUSH FRT (PART OF 57) 2013-2013
