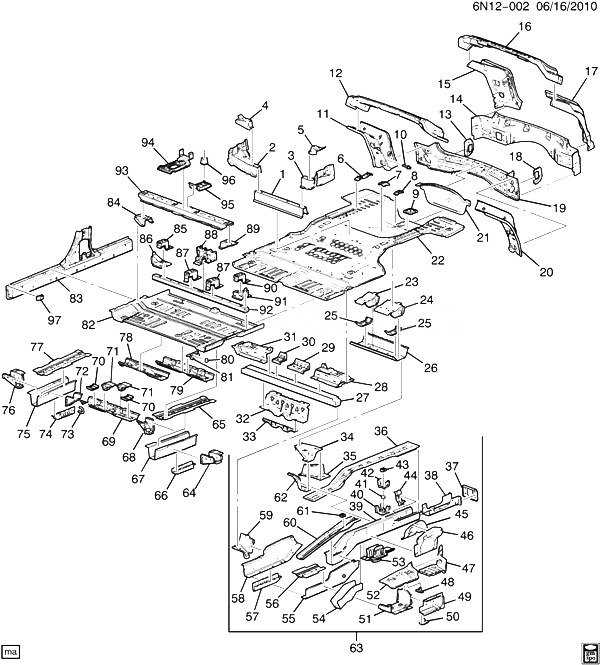

(6N12-002) 2010-2013 N ЛИСТОВОЙ МЕТАЛЛ КУЗОВА PART 4-UNDERBODY REAR END CADILLAC - SRX 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20894723 BAR, FLR PNL #5 (INCLS 2-5) (W/BRCKT NUT ONLY) N 2010-2013 01
002 BRACKET, RR W/H PNL (PART OF 1) 2010-2013
003 BRACKET, RR W/H PNL (PART OF 1) 2010-2013
004 BRACKET, R/FLR COMPT (PART OF 1) 2010-2013
005 BRACKET, R/FLR COMPT (PART OF 1) 2010-2013
006 25800661 BRACKET, R/FLR COMPT (W/BRACKET 4 STUDS) (U-RAIL SUPPORT BRKT) N 2010-2013 02
007 20825705 BRACKET, SPA WHL STOW N 2010-2013 01
008 25800660 BRACKET, R/FLR COMPT (W/BRACKET 1 STUD) (LIFT GATE PUMP OUTBOARD) N 2010-2013 02
009 25800659 BRACKET, R/FLR COMPT (W/BRACKET 3 STUDS) (LIFT GATE PUMP CENTER) N 2010-2013 01
010 11561334 RIVET, R/CMPT PNL (6.5DIA X 13.7, 13 OD, 10B35 STL) (12.804) N 2010-2013 04
011 25806744 PANEL, BK BODY PLR INR N 2010-2013 01
012 20856509 FRAME, BK BODY OPG INR UPR N 2010-2013 01
013 25894967 REINFORCEMENT, BODY RR LWR PNL (PART OF 19) N 2010-2013 01
014 15893014 FRAME, BK BODY OPG LWR N 2010-2013 01
015 20877095 FRAME, BK BODY OPG SI N 2010-2013 01
016 25806740 FRAME, BK BODY OPG UPR N 2010-2013 01
017 20877096 FRAME, BK BODY OPG SI N 2010-2013 01
018 25894966 REINFORCEMENT, BODY RR LWR PNL (PART OF 19) N 2010-2013 01
019 25958607 PANEL, BK BODY OPG FRM INR LWR (INCLS 13, 18) N 2010-2013 01
020 22776290 PANEL, BK BODY PLR INR N 2010-2013 01
021 20756238 PANEL, FLR PNL RR FIL NG 2010-2013 01
022 20933565 PANEL, R/CMPT N 2010-2013 01
023 RAIL, F/CMPT FRT LWR SI (PART OF 26) 2010-2013
024 SUPPORT, R/SEAT (PART OF 26) 2010-2013
025 REINFORCEMENT, FLR PNL #5 C/BAR (PART OF 26) 2010-2013
026 25997292 BAR, FLR PNL #5 (INCLS 23-25) (W/COMPL RAIL ASM) N 2010-2013 01
027 BAR, FLR PNL #4 CR 2010-2013
028 EXTENSION, U/B S/RL #4 OTRGR 2010-2013
029 BRACKET, R/SEAT 2010-2013
030 BRACKET, R/SEAT 2010-2013
031 EXTENSION, U/B S/RL #4 OTRGR 2010-2013
032 BRACKET, PROP SHF HNGR 2010-2013
033 BRACKET, PROP SHF HNGR 2010-2013
034 EXTENSION, U/B S/RL (PART OF 63) 2010-2013
035 EXTENSION, U/B S/RL RR (PART OF 63) 2010-2013
036 PLATE, U/B RR S/RL TIE (PART OF 63) 2010-2013
037 15872911 PLATE, RR BPR IMP BAR ANC (PART OF 38, 63) N 2010-2013 02
038 20791110 PLATE, RR BPR IMP BAR ANC (PART OF 63) (INCLS 37) N 2010-2013 01
038 20892874 PLATE, RR BPR IMP BAR ANC (PART OF 63) (INCLS 37) N 2010-2013 01
039 20791096 RAIL, R/CMPT FLR PNL RR (PART OF 63) NG 2010-2013 01
039 20791109 RAIL, R/CMPT FLR PNL RR (PART OF 63) NG 2010-2013 01
040 20756385 PLATE, RR SUSP SUPT ANC (PART OF 63) (INCLS 41-43) N 2010-2013 02
041 SPACER, RR SUSP SUPT INSL (PART OF 40, 63) 2010-2013
042 PLATE, RR SUSP SUPT ANC (PART OF 40, 63) 2010-2013
043 11518529 NUT, RR SUSP SUPT (PART OF 40, 63) (14 X 2) (CAGE STYLE) N 2010-2013 02
044 20777143 PLATE, EXH MANIF PIPE HNGR ANC (PART OF 63) N 2010-2013 01
044 20777144 PLATE, EXH MANIF PIPE HNGR ANC (PART OF 63) N 2010-2013 01
045 BRACKET, RR S/ABS UPR (PART OF 46, 63) 2010-2013
046 20791665 BRACKET, RR S/ABS LWR (PART OF 63) (INCLS 45) N 2010-2013 01
046 20791666 BRACKET, RR S/ABS LWR (PART OF 63) (INCLS 45) N 2010-2013 01
047 EXTENSION, R/CMPT FLR PNL RL (PART OF 63) 2010-2013
048 PLATE, R/SEAT FRT OTR ANC (PART OF 63) 2010-2013
049 EXTENSION, RKR INR PNL RR (PART OF 63) 2010-2013
050 REINFORCEMENT, U/B JKG RR (PART OF 63) 2010-2013
051 EXTENSION, U/B S/RL RR OTRGR (PART OF 63) 2010-2013
052 PLATE, U/B RR S/RL TIE (PART OF 63) 2010-2013
053 15872941 SEAT, RR SPR UPR (PART OF 63) N 2010-2013 01
053 15874149 SEAT, RR SPR UPR (PART OF 63) N 2010-2013 01
054 BRACKET, RR SUSP SUPT INSL (PART OF 63) 2010-2013
055 RAIL, R/CMPT FLR PNL OTR (PART OF 63) 2010-2013
056 REINFORCEMENT, R/CMPT FLR PNL RL FRT (PART OF 63) 2010-2013
057 25970100 BRACKET, F/TNK (PART OF 63) N 2010-2013 01
057 25970101 BRACKET, F/TNK (PART OF 63) N 2010-2013 01
058 RAIL, R/CMPT FLR PNL (PART OF 63) 2010-2013
059 EXTENSION, LOAD FLR PNL C/BAR (PART OF 63) 2010-2013
060 BRACKET, RR SUSP SUPT INSL RR (PART OF 63) 2010-2013
061 11518529 NUT, RR SUSP SUPT (PART OF 63) (14 X 2) (CAGE STYLE) N 2010-2013 02
062 EXTENSION, U/B S/RL FRT (PART OF 63) 2010-2013
063 22816191 RAIL, R/CMPT PNL LGTDNL (INCLS 34-62) NG 2013-2013 01
063 20943095 RAIL, R/CMPT PNL LGTDNL (INCLS 34-62) NG 2011-2013 01
064 15871614 EXTENSION, FLR PNL #3 C/BAR (12.890) NG 2010-2013 01
065 REINFORCEMENT, U/B INTER S/RL 2010-2013
066 15870930 EXTENSION, F/CMPT INR S/RL NG 2010-2013 01
067 RAIL, U/B INTER SI 2010-2013
068 EXTENSION, FLR PNL #3 C/BAR 2010-2013
069 BAR, FLR PNL #3 CR 2010-2013
070 25800642 PLATE, F/TNK STRP BRKT ANC N 2010-2013 02
071 PLATE, F/SEAT ANC 2010-2013
072 EXTENSION, FLR PNL #3 C/BAR 2010-2013
073 WIRE, EXH SYS WELD 2010-2013
074 15870931 EXTENSION, F/CMPT INR S/RL NG 2010-2013 01
075 RAIL, U/B INTER SI 2010-2013
076 15871615 EXTENSION, FLR PNL #3 C/BAR (12.890) NG 2010-2013 01
077 REINFORCEMENT, U/B INTER S/RL 2010-2013
078 BAR, FLR PNL CR 2010-2013
079 BAR, FLR PNL #2 CR 2010-2013
080 NUT, FRT PROP SHF BRG SUPT 2010-2013
081 REINFORCEMENT, PROP SHF HNGR 2010-2013
082 PANEL, FLR 2010-2013
083 20792986 PANEL, RKR INR NG 2010-2013 01
083 20792987 PANEL, RKR INR NG 2010-2013 01
084 EXTENSION, FLR PNL #2 C/BAR 2010-2013
085 BRACKET, F/SEAT OTR RSR 2010-2013
086 REINFORCEMENT, FLR PNL #3 BAR EXTN 2010-2013
087 BRACKET, F/SEAT INR RSR 2010-2013
088 BRACKET, F/FLR CNSL RR 2010-2013
089 EXTENSION, FLR PNL #2 C/BAR 2010-2013
090 BRACKET, F/SEAT OTR RSR 2010-2013
091 REINFORCEMENT, FLR PNL #3 BAR EXTN 2010-2013
092 BAR, FLR PNL #3 CR 2010-2013
093 BAR, FLR PNL #2 CR 2010-2013
094 EXTENSION, FLR PNL #3 BAR 2010-2013
095 BRACKET, AIRBAG SEN DIAGN MDL 2010-2013
096 11609767 NUT, SEN DIAGN AIRBAG MDL (M6 X 1) (8.915) N 2010-2013 02
097 25916019 SEALING STRIP, RKR INR PNL (TO BODY H/PLR INR PNL) N 2010-2013 02
